2025 Yamaha Transporter Lite (TR4NTSR) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2025 Yamaha Transporter Lite (TR4NTSR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

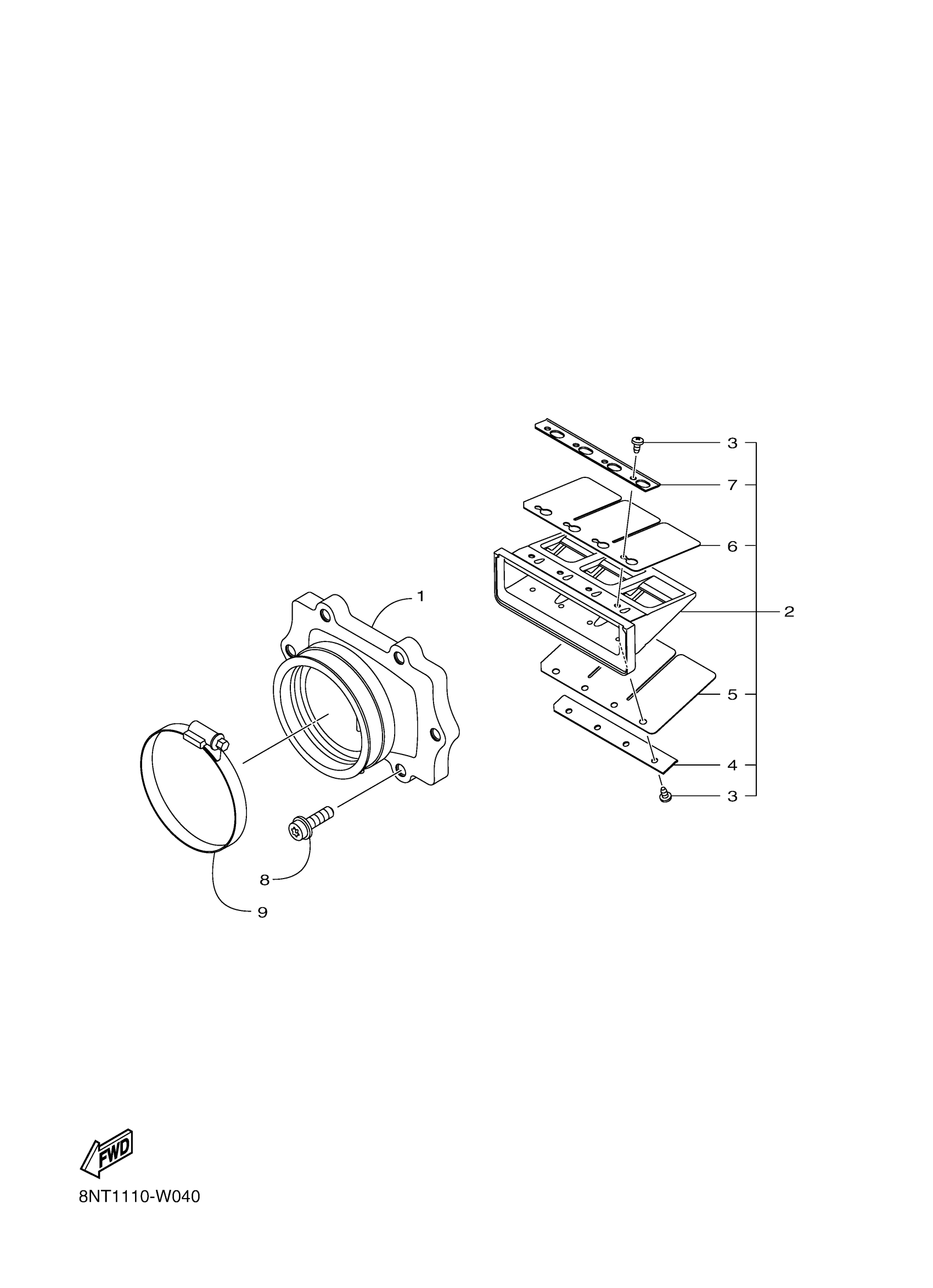

2025 Yamaha Transporter Lite (TR4NTSR) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD

8NV-E3640-00-00

—

$133.34

In stock

2

REED VALVE ASSY

8NV-E3610-00-00

—

$96.66

In stock

3

SCREW, REED VALVE

8ND-E3623-00-00

—
Out of stock

4

PLATE, SIDE 1

8ND-E445F-00-00

—

$1.12

In stock

5

REED VALVE ASSY

8NV-E3610-00-00

—

$96.66

In stock

6

REED VALVE ASSY

8NV-E3610-00-00

—

$96.66

In stock

7

PLATE, SIDE 2

8ND-E445G-00-00

—

$3.86

In stock

8

BOLT, FLANGE

8ND-RA180-00-00

—

$0.97

In stock

9

CLAMP, 1

8KC-RAB03-00-00

1

$2.78

In stock
← Fuel Tank Intake 2 →
