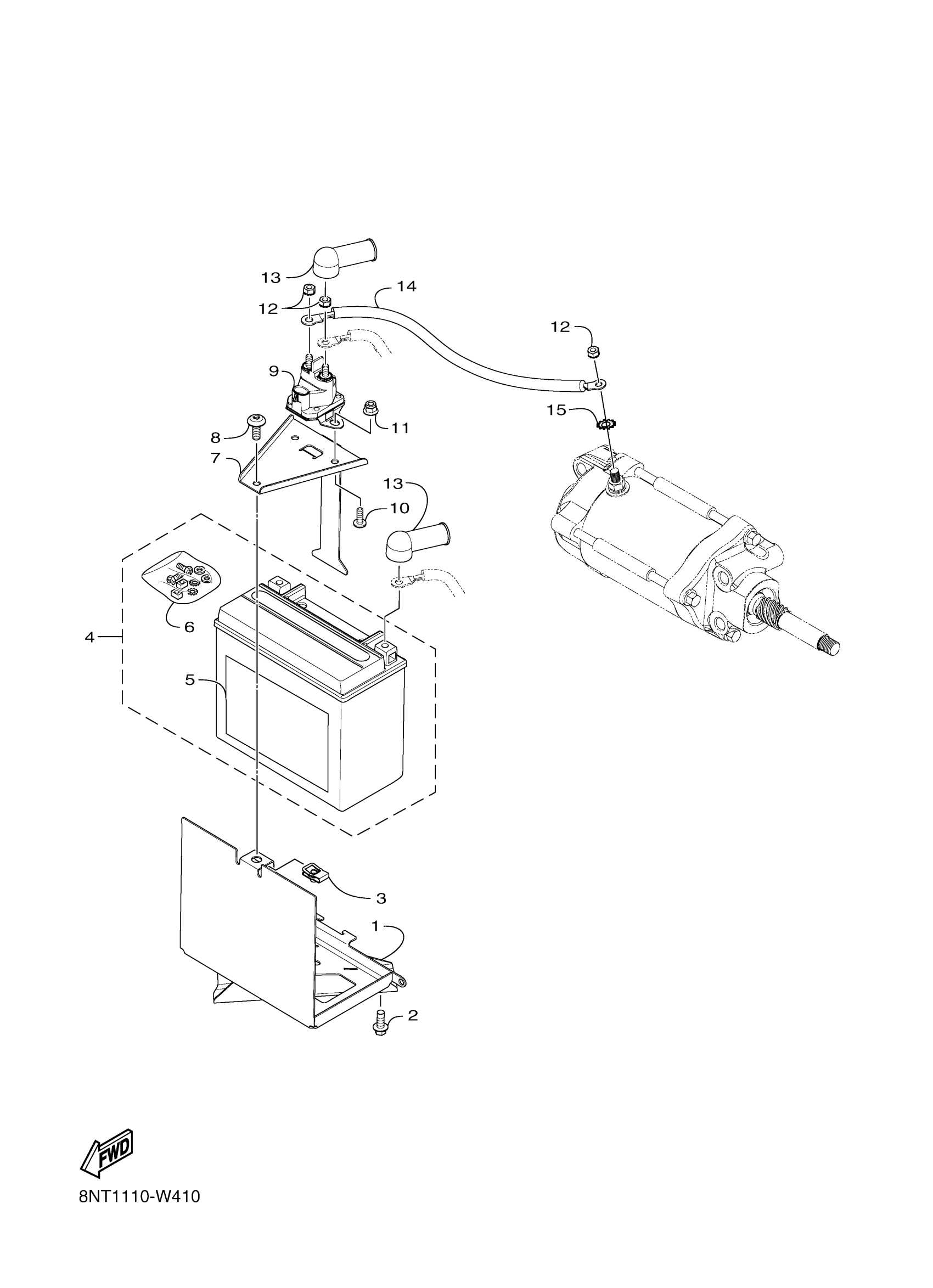

Find the part on the Electrical 2 diagram for your 2025 Yamaha Transporter Lite (TR4NTSR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Yamaha Transporter Lite (TR4NTSR) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT, BATTERY

8NT-H2122-00-00

1
Out of stock

2

BOLT, FLANGE

8NT-RA1A0-00-00

1
Out of stock

3

NUT, CLIP M6

8JP-RA354-00-00

1
Out of stock

4

YTX20HBS YUASA BATTERY - SA

YTX-20HBS-00-00

1
Out of stock

5

. LABEL, BATTERY

8JP-H2141-00-00

1
Out of stock

6

. REPAIR PARTS KIT

8JP-F819G-00-00

1
Out of stock

7

BRACKET, BATTERY 2

8NT-H2158-00-00

1
Out of stock

8

SCREW, M6X1.0X20

8JP-RA260-00-00

1
Out of stock

9

STARTER RELAY ASSY

8MT-H1940-00-00

1
Out of stock

10

SCREW

8KC-RA229-00-00

1
Out of stock

11

NUT,FLG. M6-1.0

8JM-RA322-00-00

1
Out of stock

12

NUT, WITH WASHER M

8JP-RA375-00-00

1
Out of stock

13

COVER, TERMINAL

8NT-H1916-00-00

1
Out of stock

14

CABLE 2

8NT-H8147-00-00

1
Out of stock

15

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

1
Out of stock
