2021 Yamaha Transporter Lite (TR4NTMB) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2021 Yamaha Transporter Lite (TR4NTMB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

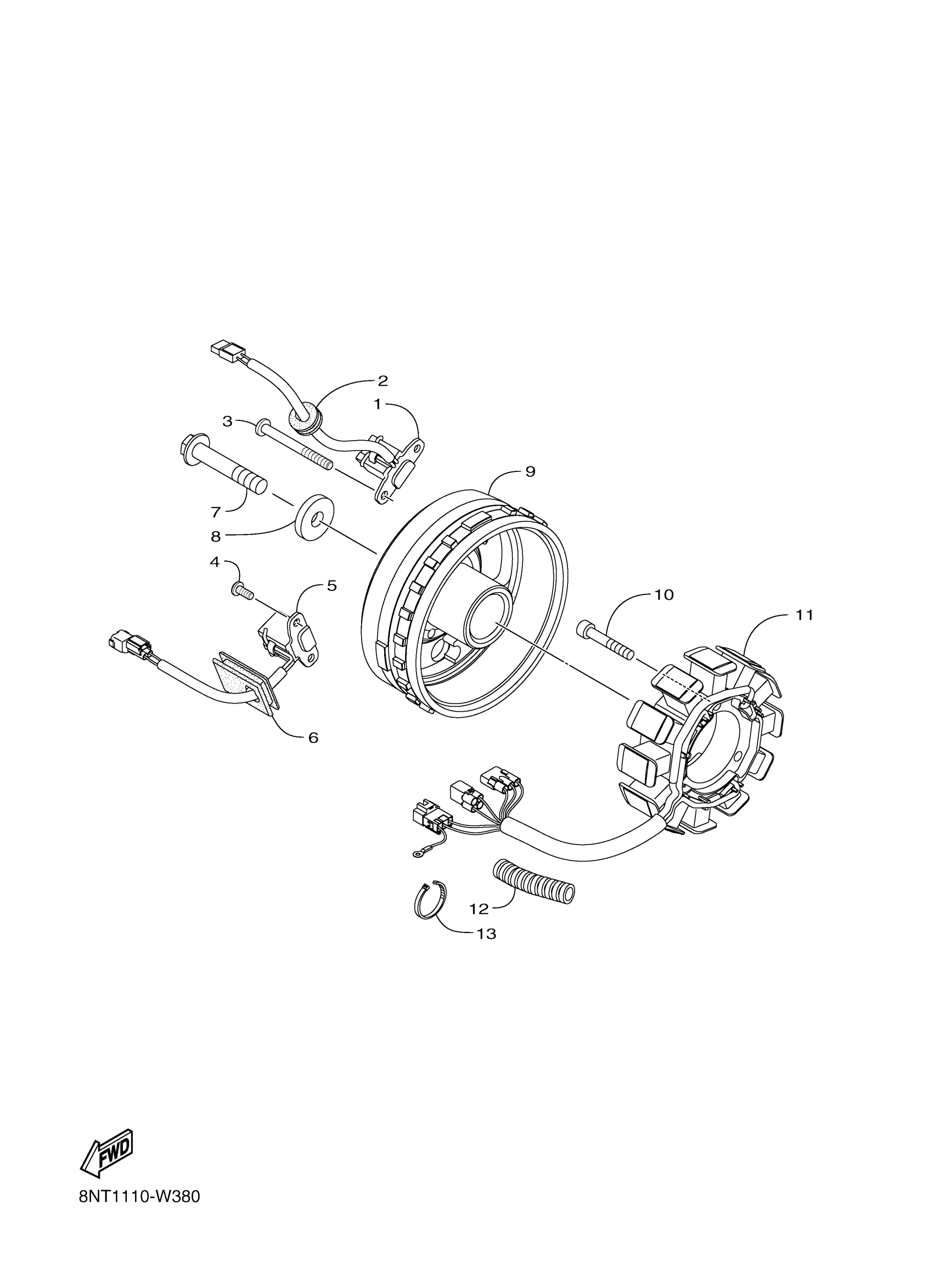

2021 Yamaha Transporter Lite (TR4NTMB) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PICK-UP ASSY

8ND-H1670-00-00

—
Out of stock

2

GROMMET

8ND-H1364-00-00

—
Out of stock

3

SCREW

8NT-RA211-00-00

—
Out of stock

4

SCREW

8NT-RA212-00-00

1
Out of stock

5

PICK UP ASSY 2

8ND-H1680-00-00

—
Out of stock

6

GROMMET

8ND-H1336-00-00

—
Out of stock

7

BOLT, FLANGE

8ND-RA187-00-00

1
Out of stock

8

WASHER 6

8ND-RA418-00-00

1
Out of stock

9

ROTOR

8NV-H135E-00-00

1
Out of stock

10

BOLT, FLANGE

8ND-RA184-00-00

1
Out of stock

11

STATOR ASSY

8ND-H1410-00-00

—
Out of stock

12

PROTECTOR

8ND-HA7A0-00-00

—
Out of stock

13

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

—
Out of stock
