1972 Yamaha TR3 (TR3) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1972 Yamaha TR3 (TR3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

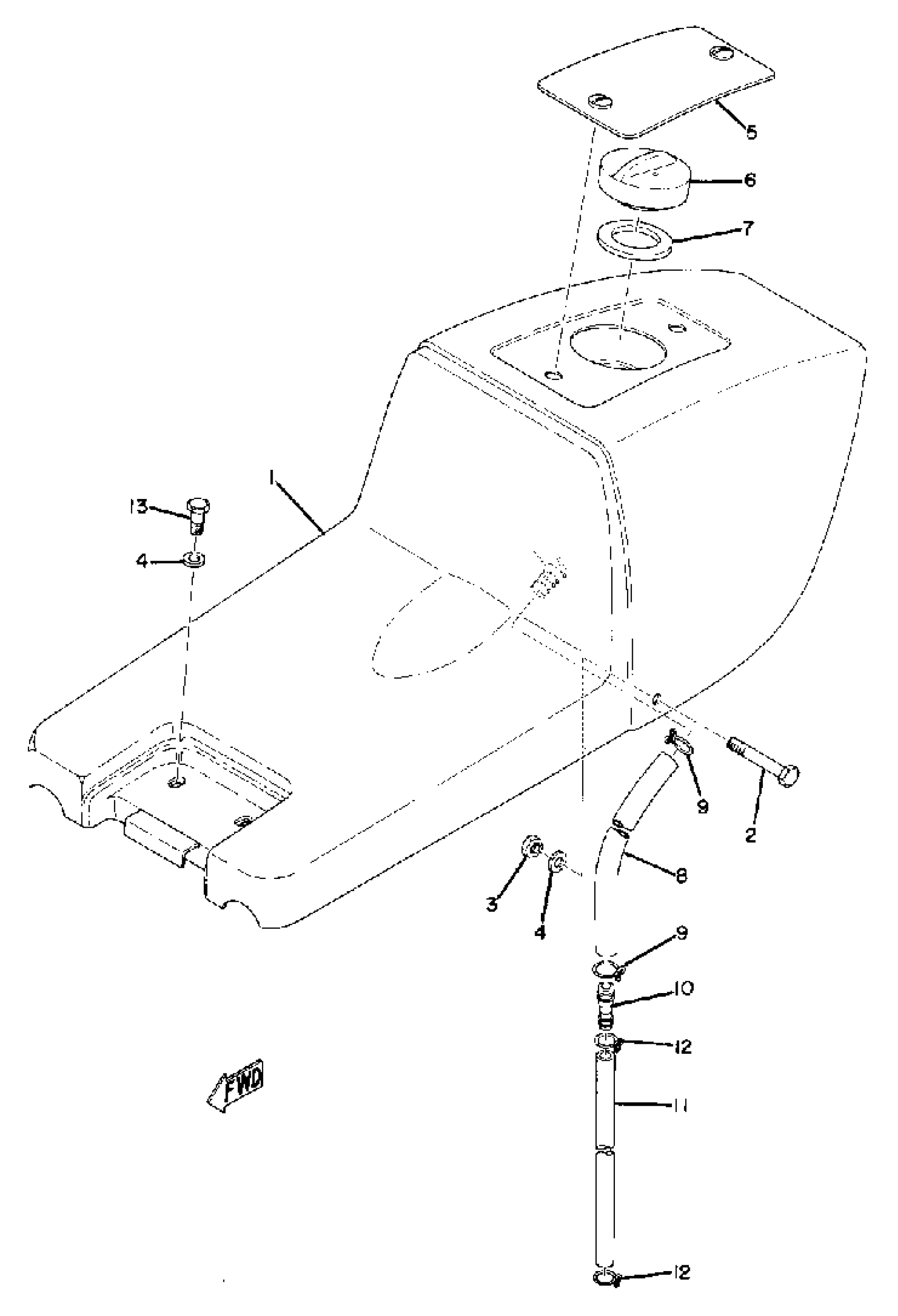

1972 Yamaha TR3 (TR3) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

(383-24710-00-00)

1
Out of stock

2

BOLT, HEXAGON

97013-06045-00

1

$1.51

In stock

3

NUT, NYLON

95707-06300-00

1

$3.20

In stock

4

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

5

PLATE

(240-24732-00-00)

1
Out of stock

6

OIL TANK CAP ASSEMBLY

(240-21770-01-00)

1
Out of stock

7

GASKET

(90430-25049-00)

1
Out of stock

8

HOSE (L800)

90445-11083-00

1

$14.49

In stock

9

CLIP

90467-100A1-00

1
Out of stock

10

CONNECTOR, OIL PUMP

(240-21743-00-00)

1
Out of stock

11

HOSE (L545)

90445-09361-00

1
Out of stock

12

CLIP 101235600

90467-08003-00

1

$6.13

In stock

13

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock
