- TR2 (TR2) 1970
HANDLE-WIRE

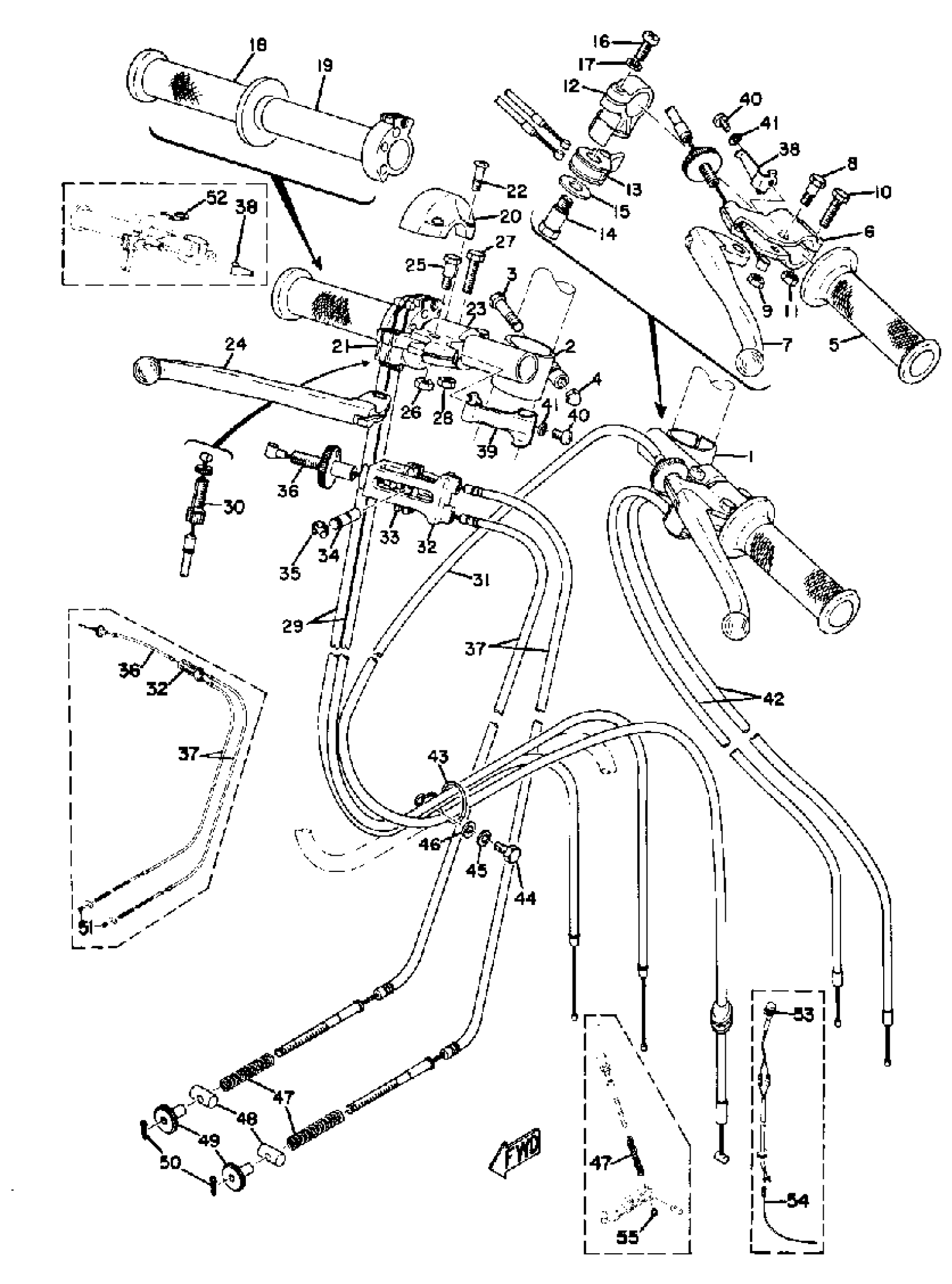

Yamaha TR2 (TR2) 1970 HANDLE-WIRE Diagram
#
1
HANDLEBAR LH
(240-26121-01-00)
Unavailable
1
LEVER HOLDER ASY 1
240-82810-00-00
Unavailable
2
HANDLEBAR RH
(240-26122-01-00)
Unavailable
3
LEVER HOLDER ASSEMBLY 2
(240-82820-00-00)
Unavailable
4
NUT, SELF-LOCKING
90185-08100-00
Unavailable
5
GRIP (L.H)
47X-26241-00-00
Unavailable
6
HOLDER, LEVER 1
(240-82811-00-00)
Unavailable
6
HOLDER,LEVER 1
240-82811-00-00
Unavailable
7
LEVER L
150-83912-00-38
Unavailable
8
BOLT
(90109-06333-00)
Unavailable
9
NUT, HEXAGON
95380-06600-00
Unavailable
11
NUT, HEXAGON
95380-06600-00
Unavailable
12
HOLDER, STARTER LEVER
240-83946-00-00
Unavailable
13
LEVER, STARTER
240-83941-00-00
Unavailable
14
BOLT
90109-08398-00
Unavailable
15
WASHER PLATE 122222440000
90201-12175-00
Unavailable
16
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
GRIP (R.H)
47X-26242-00-00
Unavailable
19
TUBE, THRTL GUIDE
240-26243-01-00
Unavailable
20
CAP, GRIP UPPER
240-26281-00-00
Unavailable
21
CAP, GRIP LOWER
240-26282-00-00
Unavailable
22
SCREW, PAN HEAD
98580-05020-00
Unavailable
23
HOLDER, LEVER 2
(145-82821-00-00)
Unavailable
23
HOLDER, LEVER 2
(240-82821-00-00)
Unavailable
24
LEVER R
(218-83922-30-38)
Unavailable
25
BOLT
(90109-06333-00)
Unavailable
26
NUT, HEXAGON
95380-06600-00
Unavailable
28
NUT, HEXAGON
95380-06600-00
Unavailable
29
CABLE, THROTTLE 1 (650MM)
240-26311-00-00
Unavailable
30
BOLT 177262530100
90123-06007-00
Unavailable
31
CABLE, CLUTCH
(240-26335-00-00)
Unavailable
32
HOUSING, BRAKE LINK
(294-26371-00-00)
Unavailable
33
JOINT, CABLE
(240-26347-00-00)
Unavailable
34
PIN, SPEC''L SHAPE
(90249-08006-00)
Unavailable
35
CIRCLIP(53L)
99001-06600-00
Unavailable
36
CABLE, BRAKE
(240-26341-00-00)
Unavailable
36
CABLE, BRAKE
(294-26341-00-00)
Unavailable
37
CABLE, BRAKE
(240-26361-00-00)
Unavailable
37
CABLE, BRAKE
(294-26361-00-00)
Unavailable
38
SPRING, LOCK
5F6-26368-00-00
Unavailable
39
SPRING, LOCK
(240-26368-00-00)
Unavailable
40
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
41
UNAVAILABLE IN PRICE BOOK (92903-05100)
92901-05010-00
Unavailable
42
CABLE, STARTER 1 (800MM)
1RK-26331-00-00
Unavailable
43
GUIDE, CABLE
(240-26279-00-00)
Unavailable
44
BOLT, COWLING
(145-28374-00-00)
Unavailable
45
WASHER, SPRING
92995-06100-00
Unavailable
46
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
47
SPRING, COMPRESSION
90501-09052-00
Unavailable
47
SPRING, COMPRESSION (294-27236-00)
90501-09054-00
Unavailable
48
PIN, SPEC''L SHAPE
(90249-10073-00)
Unavailable
49
NUT, SPEC''L SHAPE
(90179-05154-00)
Unavailable
50
. PIN, COTTER
91490-12012-00
Unavailable
51
SEAT, SPRING
(294-27239-00-00)
Unavailable
52
HOLDER, HANDLE SWCH
(294-83974-00-00)
Unavailable
53
SWITCH, HANDLE 1
(294-83976-00-00)
Unavailable
54
LEAD WIRE ASSEMBLY
(294-81515-00-00)
Unavailable
55
SEAT, SPRING
(294-27239-00-00)
Unavailable
