1970 Yamaha TR2 (TR2) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

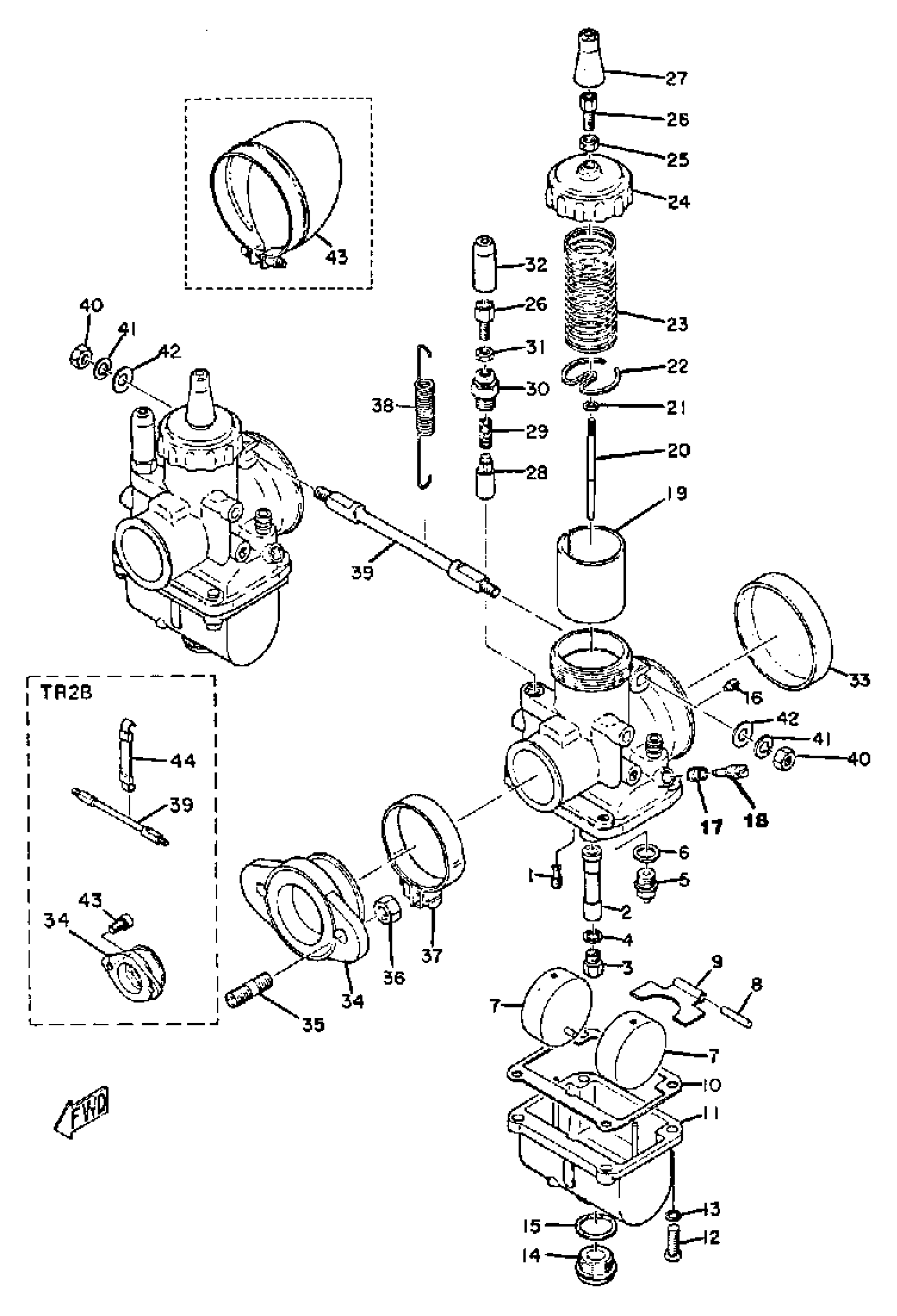

1970 Yamaha TR2 (TR2) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. JET, PILOT #60

193-14142-60-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(239-14101-60-00)

1
Out of stock

2

NOZZLE, MAIN

(239-14141-36-00)

1
Out of stock

3

JET,MAIN #340

137-14143-68-00

1
Out of stock

3

JET,MAIN #360

137-14143-72-00

1
Out of stock

3

JET,MAIN #380

137-14143-76-00

1
Out of stock

3

JET,MAIN #400

137-14143-80-00

1

$6.38

In stock

3

JET,MAIN #420

137-14143-84-00

1

$6.38

In stock

3

JET, MAIN #440

137-14143-88-00

1

$6.38

In stock

4

WASHER,MAIN JET

137-14153-00-00

1
Out of stock

5

NEEDLE VALVE SET

24X-14107-33-00

1

$44.94

In stock

6

WASHER,VALVE SEAT

239-14195-00-00

—

$11.47

In stock

7

FLOAT

(239-14185-00-00)

1
Out of stock

8

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

9

ARM, FLOAT

(239-14187-00-00)

1
Out of stock

10

GASKET, FLOAT CHMBR

(239-14184-00-00)

1
Out of stock

11

BODY, FLOAT CHMBR 1

(239-14181-00-00)

1
Out of stock

12

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

14

PLUG, SCREW

(239-14115-00-00)

1
Out of stock

15

. WASHER, PLUG SCREW

239-14117-00-00

1
Out of stock

16

JET, AIR (#2.0)

239-14172-20-00

—
Out of stock

17

SPRING, AIR ADJUSTING

127-14134-00-00

—

$6.37

In stock

18

AIR SCREW SET

23X-14104-00-00

—

$8.52

In stock

19

VALVE, THROTTLE 1

(239-14112-15-00)

1
Out of stock

20

NEEDLE

(239-14116-06-00)

1
Out of stock

21

CLIP

3FA-14137-00-00

—

$6.80

In stock

22

. SEAT, SPRING

239-14136-00-00

1
Out of stock

23

. SPRING, THRTL VALVE

239-14131-00-00

1
Out of stock

24

. TOP, MIXING CHAMBER

239-14158-00-00

1
Out of stock

25

NUT, WIRE ADJUSTING

802-14161-00-00

—

$6.65

In stock

26

CABLE ADJUST SCREW SET

12G-14106-00-00

—

$17.66

In stock

27

CAP

8A7-14169-00-00

—

$15.80

In stock

28

PLUNGER, STARTER

58E-14171-00-00

—

$28.22

In stock

29

SPRING, PLUNGER

127-14135-00-00

—

$6.40

In stock

30

CAP, PLUNGER

127-14174-00-00

—

$8.72

In stock

31

NUT, WIRE ADJUSTING

127-14161-00-00

—

$7.20

In stock

32

CAP

(174-14169-01-00)

1
Out of stock

33

COVER, MIXING

240-14157-00-00

1
Out of stock

34

MANIFOLD, INTAKE

(239-13555-01-00)

1
Out of stock

34

MANIFOLD, INTAKE

(294-13555-00-00)

1
Out of stock

35

BOLT, STUD

(90116-08038-00)

1
Out of stock

36

. NUT

95380-08700-00

1

$3.07

In stock

37

CLAMP, HOSE

(90460-45056-00)

1
Out of stock

38

UNAVAILABLE IN PRICE BOOK

24-01448-70-00

1
Out of stock

39

SCREW, ROD

(239-14486-00-00)

1
Out of stock

40

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

41

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

42

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

43

BOLT, SOCKET

91317-08016-00

—

$6.17

In stock

44

HOLDER

(294-14491-00-00)

1
Out of stock

45

UNAVAILABLE IN PRICE BOOK

240-13318-10-00

1
Out of stock
