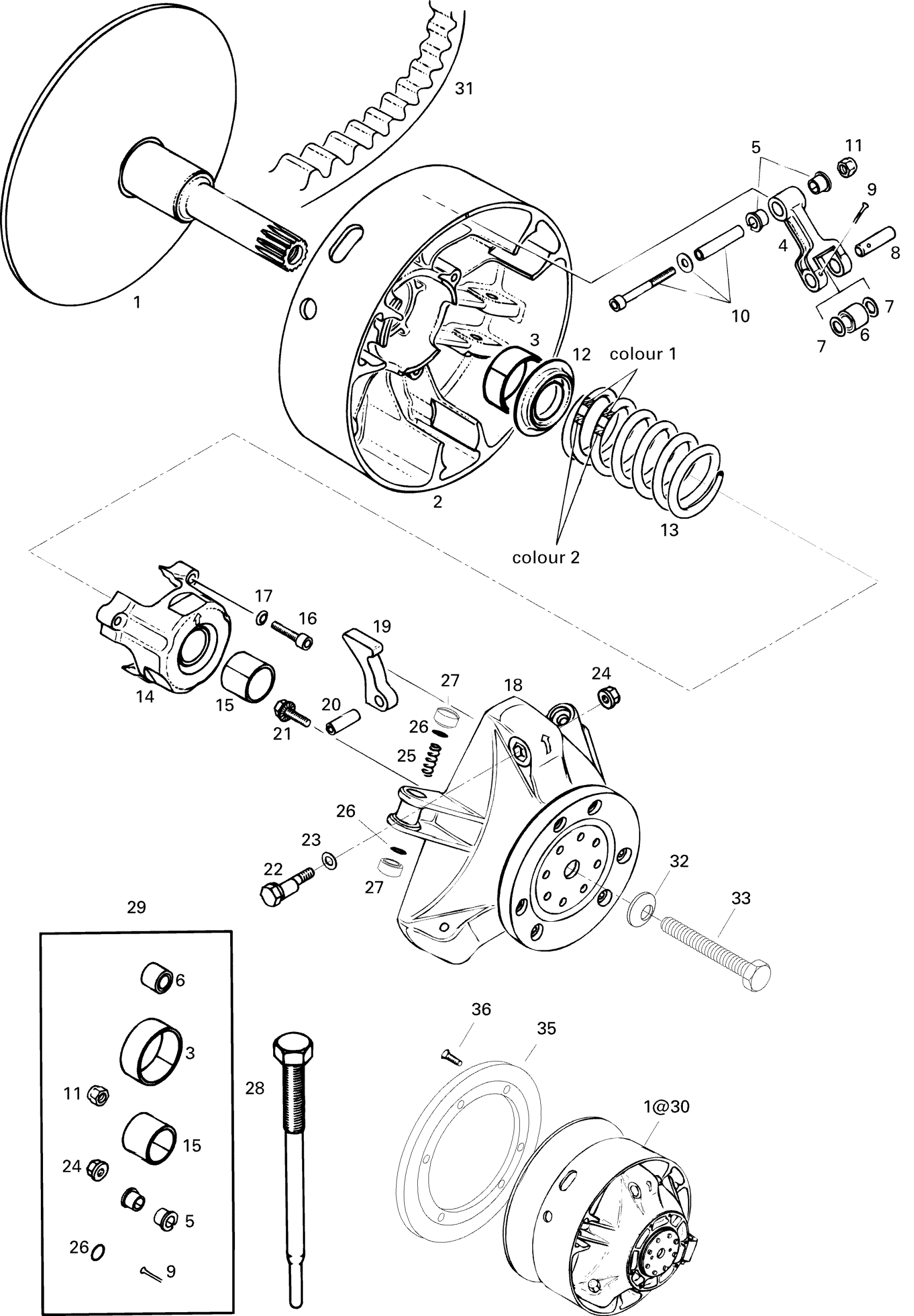

Ski-Doo Touring LE, 1996 Drive Pulley LE Diagram
#
Description
Price
1
Drive Pulley Ass’y. | Includes 1 to 30
417212300
Unavailable
1
Inner Half Ass‘y
420480417
Unavailable
2
OUTER HALF ASS?Y - Call your local BRP dealership | Includes 3 to 4
420480297
Unavailable
3
BUSHING OUTER HALF - Call your local BRP dealership
420433173
Unavailable
4
Lever Ass‘y | Includes 5 to 6
420448455
Unavailable
5
Bushing
417004305
Unavailable
8
Pin
417004309
Unavailable
10
Fitting Screw
420440166
Unavailable
11
Elastic Stop Nut M6
232561414
Unavailable
12
Spring Seat
420427392
Unavailable
13
Spring (Yellow/Violet) | Touring LE.
414678400
Unavailable
14
Spring Cover Ass‘y | Includes 15 to 16
420412287
Unavailable
15
Bushing
417004501
Unavailable
16
Socket Screw M6 X 40
205064086
Unavailable
17
WASHER - Call your local BRP dealership
420245370
Unavailable
18
Governor Cup
420480395
Unavailable
19
Ramp
420480227
Unavailable
20
Dowel Tube M8 x 24
420429150
Unavailable
21
Hex. Locking Screw M6 x 20
420440180
Unavailable
22
CALIBRATION SCREW - Call your local BRP dealership
417222955
Unavailable
23
Washer | Skandic Super Wide Track.
420927941
Unavailable
24
Hex. Flange Nut M6
233061414
Unavailable
25
Spring
417005700
Unavailable
28
Puller Inner Half
529007900
Unavailable
29
Clutch Repair Kit
420483325
Unavailable
31
Drive Belt
415060600
Unavailable
32
Conical Spring Washer M12
250200005
Unavailable
33
BOLT - Call your local BRP dealership
417113800
Unavailable
34
High Altitude Kit (Not Shown)
861751500
Unavailable
36
Screw M6 x 16 | Formula Deluxe 380.
732600021
Unavailable
