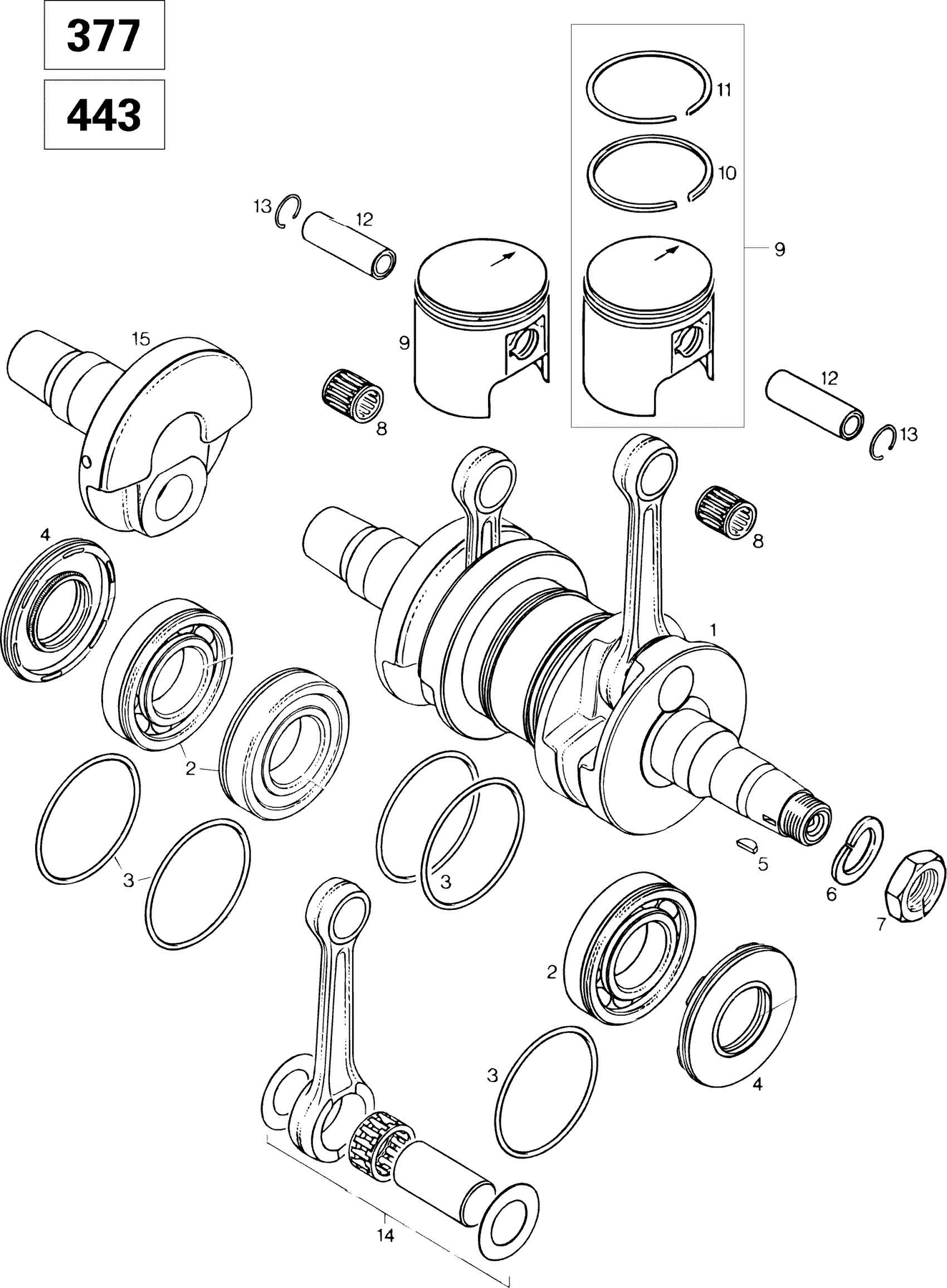

Ski-Doo Touring LE, 1996 Crankshaft And Pistons 443 Diagram
#
Description
Price
1
Crankshaft Ass’y
420887245
Unavailable
2
Bearing_Ball This part replaces 290832231.
420832584
Unavailable
3
O-Ring, 64 mm X 2 mm
293300022
Unavailable
4
Oil Seal This part replaces 290831952.
420831952
Unavailable
5
Woodruff Key
420246055
Unavailable
6
Lock Washer, 22 mm
420945759
Unavailable
7
Hex. Nut, M22 X 1.5
420842239
Unavailable
8
Needle Bearing
420932904
Unavailable
9
PISTON - Call your local BRP dealership | Includes 11 to 13
420887485
Unavailable
9
PISTON - Call your local BRP dealership | Includes 11 to 13
420887486
Unavailable
9
Oversize Piston Ass’y 67.95 mm | Includes 9 to 11
420886052
Unavailable
10
RING R 67.5 - Call your local BRP dealership
420915960
Unavailable
10
RING R 67.75 - Call your local BRP dealership
420915961
Unavailable
10
RING R 68 - Call your local BRP dealership
420915962
Unavailable
11
RING L 67.5 - Call your local BRP dealership
420915845
Unavailable
11
RING L 67.75 - Call your local BRP dealership
420915846
Unavailable
11
RING L 68.0 - Call your local BRP dealership
420915847
Unavailable
12
PISTON PIN - Call your local BRP dealership
420916136
Unavailable
13
Piston Circlip
420945735
Unavailable
14
Rod repair kit
420996334
Unavailable
15
Crankshaft half PTO
420818203
Unavailable
