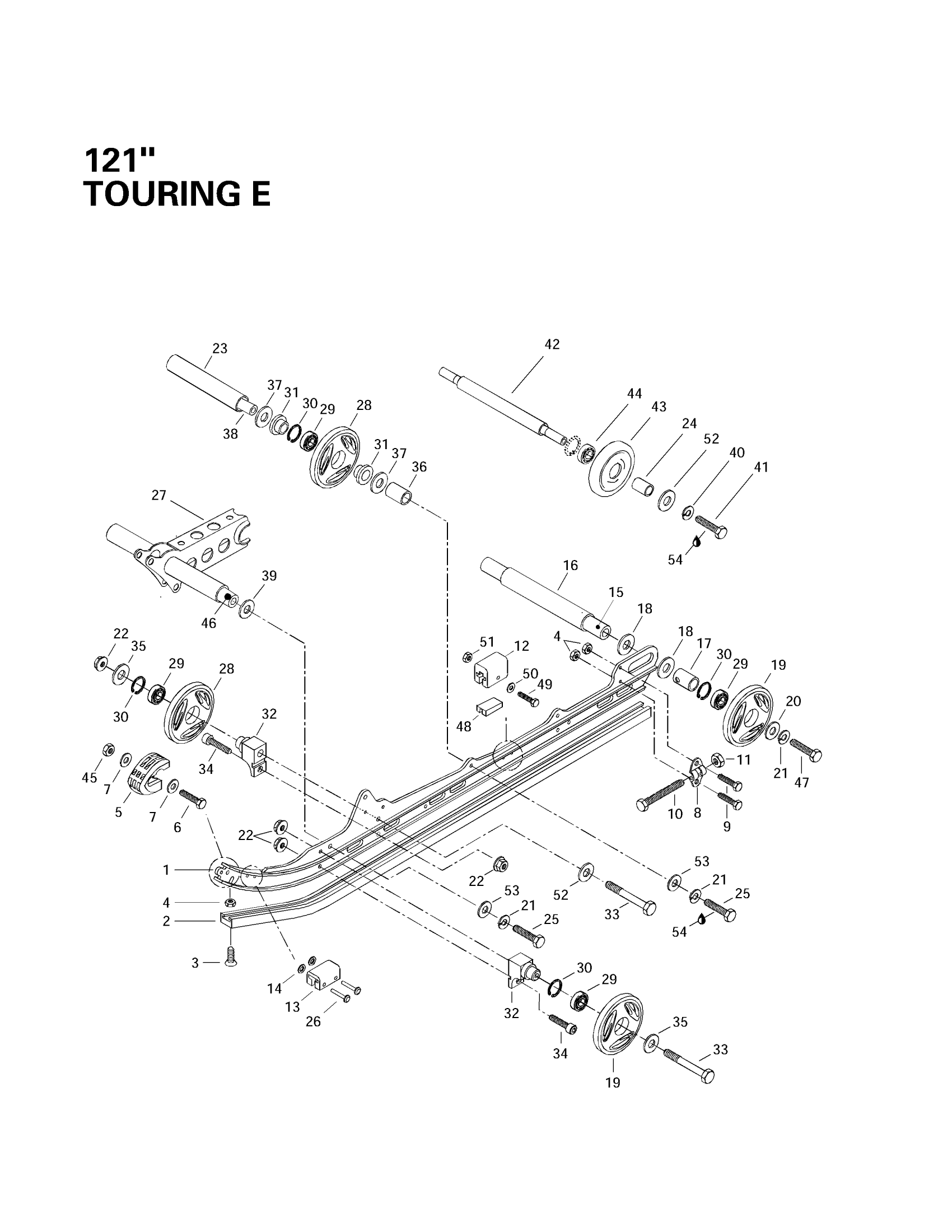

Ski-Doo Touring E LT, 1997 Rear Suspension (121”) Diagram

#

Description
Price

1

Runner 121" | Formula 500. Formula 500 Deluxe. Formula 583.

503166600

Unavailable

2

Slide Shoe

605355362

$26.84

3

Phillips Screw M6 X 25

208562560

$2.21

4

Elastic Stop Nut M6

232561414

$1.78

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

$0.46

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

10

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.63

12

Rubber Stopper

570063000

Unavailable

13

Rubber Stopper

570048000

Unavailable

14

Push Nut

389804300

$0.49

15

REAR AXLE - Call your local BRP dealership

503162400

Unavailable

16

Spacer

503155500

Unavailable

17

Outer Spacer

503189809

$14.90

18

SHIM - Call your local BRP dealership

504108200

Unavailable

19

Wheel 165 (Black)

570045321

Unavailable

20

Washer

503183300

$5.51

21

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

$1.31

23

Spacer

503153100

Unavailable

24

Spacer

572048300

Unavailable

25

Hex. Screw M10 X 35

207103544

$1.63

26

Rivet 3/16 x 1-3/8 | Formula 500. Formula 500 Deluxe. Formula 583.

390908700

Unavailable

27

Welded Shock Support

503167500

Unavailable

28

Wheel 135 | Includes 18 to 19

503190797

$31.31

29

Ball Bearing

293350115

$10.82

30

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

31

Cushion

503189534

$4.42

32

Support | Formula 500. Formula 500 Deluxe. Formula 583.

503163600

Unavailable

33

Hex. Screw M8 X 80

207088044

$1.54

34

Socket Head Screw M8 X 25

205082544

$1.06

35

Washer

503183100

$2.99

36

Spacer | Formula 500. Formula 500 Deluxe.

503151000

Unavailable

37

WASHER - Call your local BRP dealership

503154000

Unavailable

38

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

39

Hard Washer | Formula DLX 500 LC.

503007900

Unavailable

40

Lock Washer 8 mm

234181401

$0.87

41

Hex. Screw M8 X 30

207183044

$1.06

42

Wheel Support Axle

503153600

Unavailable

43

Idler Wheel | Includes 48 - 49.

572043500

$31.31

44

Ball Bearing

405404600

$23.85

45

Elastic Stop Nut M5

232551414

$0.82

46

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

47

Hex. Screw With Nylon

250000019

$1.63

48

Reinforcement Stopper

572084800

$5.09

49

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

50

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

51

Elastic Stop Nut M5

232551414

$0.82

52

Flat Washer 8 mm

234081410

$0.79

53

Flat Washer 10 mm

234001410

$1.12

54

Loctite 271, 10 ml

293800005

$23.85
