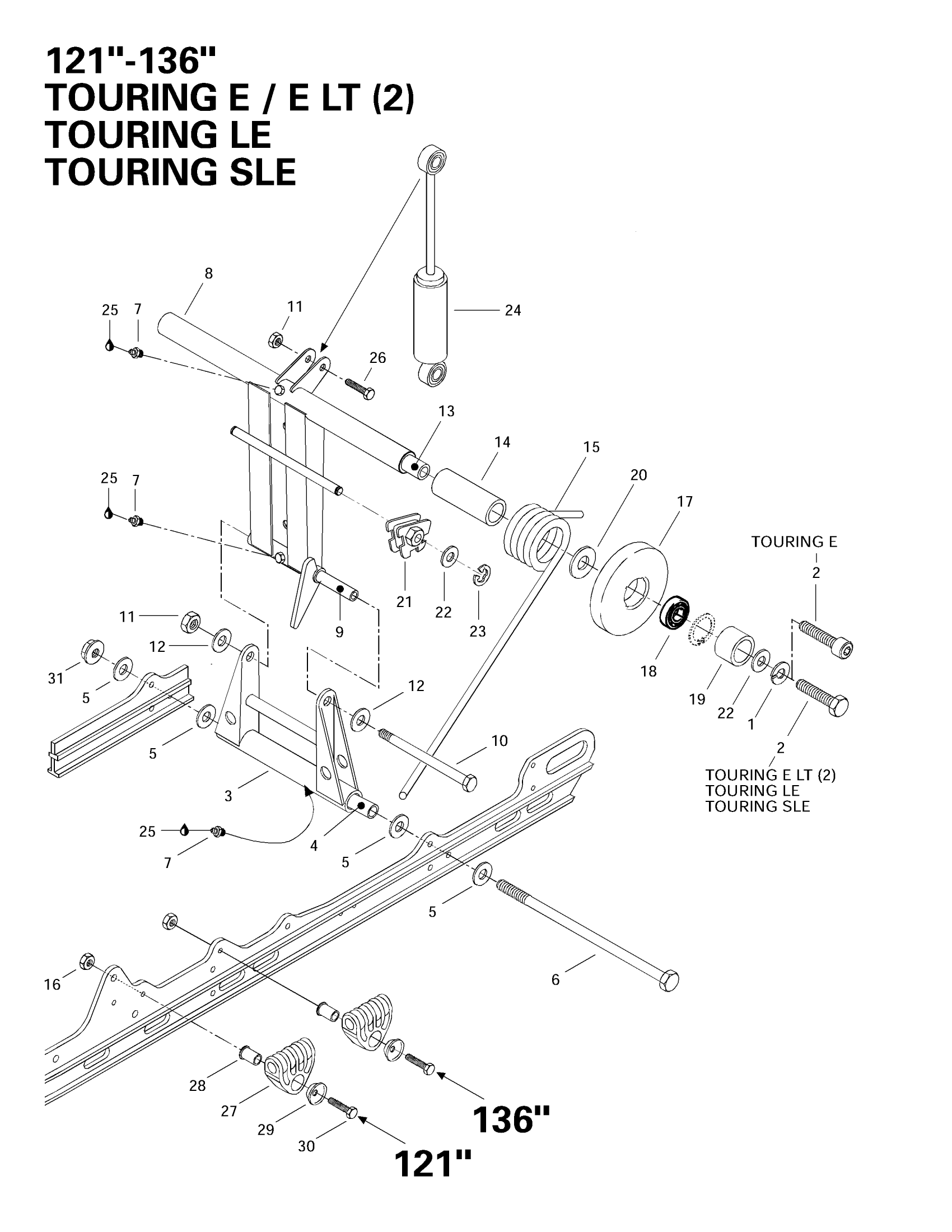

Ski-Doo Touring E LT, 1997 Rear Arm, Rear Suspension 121”-136” Diagram
#
Description
Price
1
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
2
Socket Screw M10 X 35
205003544
Unavailable
Hex. Screw M10 X 35
207103544
Unavailable
4
Lower Axle Pivot
503154703
Unavailable
5
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
6
Bolt M8 X 248mm
503192440
Unavailable
7
Grease Fitting
408200700
Unavailable
8
Welded Rear Arm
503151200
Unavailable
9
Upper Axle, Pivot Arm
503144300
Unavailable
10
Bolt M8, Short
732601197
Unavailable
11
Hex. Elastic Stop Nut M8
232581414
Unavailable
12
Flat Washer 8 mm
234081410
Unavailable
13
Transversal Rear Axle
503151400
Unavailable
14
Bushing
572047800
Unavailable
15
RH Spring
414866200
Unavailable
RH Spring (Europe) | Formula Deluxe 500 LC.
414944200
Unavailable
LH Spring
414866300
Unavailable
LH SPRING (EUROPE) - Call your local BRP dealership | Formula Deluxe 500 LC.
414944300
Unavailable
16
Elastic Stop Nut M6
232561414
Unavailable
17
Idler Wheel 144 | Includes 17 - 18.
415005600
Unavailable
19
Spacer
503154200
Unavailable
21
LH ADJUST CAM - Call your local BRP dealership
572030800
Unavailable
RH ADJUST CAM - Call your local BRP dealership
572030900
Unavailable
22
Flat Washer 10 mm
234001410
Unavailable
23
e Circlip
371907100
Unavailable
24
SHOCK - Call your local BRP dealership
414866500
Unavailable
Shock
414927700
Unavailable
Shock | Grand Touring 500.
415040600
Unavailable
25
Lithium Grease, 400 gr | Formula Z. Formula 583.
413701600
Unavailable
26
Hex. Screw M8 X 40
207084044
Unavailable
27
Spring Support
503189657
Unavailable
28
SPRING AXLE GUIDE - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.
503152700
Unavailable
29
Retainer Washer | Formula 500. Formula 500 Deluxe.
517041700
Unavailable
30
Hex. Screw M6 X 45
207064544
Unavailable
31
Hex. Flange Elastic Nut M8
233281414
Unavailable
