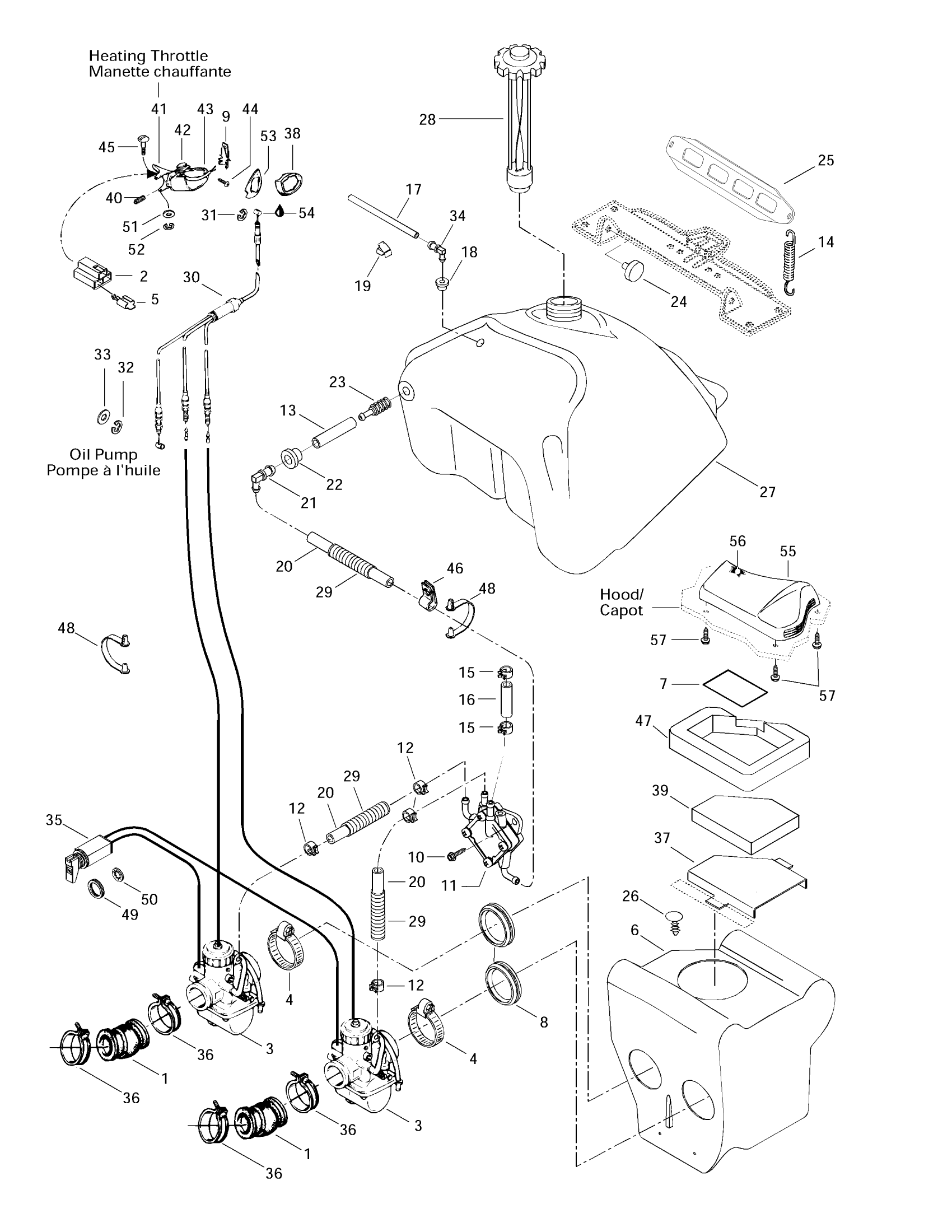

Ski-Doo Touring E LT, 1997 Fuel System Diagram

#

Description
Price

1

Rubber Flange

570045000

Unavailable

2

Female Terminal Housing (3 circuits)

409008500

Unavailable

3

Carburetor VM 30-190 | Includes 1 - 35. Formula S.

403127200

Unavailable

Carburetor VM 34 -467 | Includes 1 - 35. Touring LE.

403123500

Unavailable

Carburetor VM 34 481 (PTO) | Includes 1 - 36. Formula SL.

403127400

Unavailable

Carburetor VM 34 482 (MAG) | Formula SL.

403127500

Unavailable

4

TRIDON GEAR CLAMP - Call your local BRP dealership

408801600

Unavailable

5

Female Terminal PACKARD

561503200

Unavailable

6

Air Silencer (Incl. 4,7,8,39,48,52,53) | Formula S.

580649200

Unavailable

Air Silencer (Incl. 4,7,8,39,48,52,53) | Formula SL.

580649100

Unavailable

7

Warning Decal

414161500

Unavailable

8

Adaptor 34 mm

570043600

Unavailable

9

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

10

Hexagonal Head Screw

210262050

$2.00

11

Fuel Pump

403801000

Unavailable

12

Spring Clamp

414554800

$0.81

13

Not Available As Spare Part - Friction Washer

Unavailable

14

SPRING - Call your local BRP dealership

517182100

Unavailable

15

Spring Clamp

414415200

$0.81

16

Hose

219704549

$46.24

17

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

18

Grommet

570045500

$6.13

19

Clip

414227300

$1.40

20

Polyurethane Hose 10000Mm Long

219704410

$52.96

21

Elbow Male Connector

414580600

$4.01

22

Grommet

709200285

$8.13

23

Fuel Filter

414865700

$9.63

24

Grommet | Europe

707800347

$8.70

25

Fuel Tank Bracket

517249200

Unavailable

26

Black, Dart

414644300

$0.90

27

Fuel Tank

571009300

Unavailable

28

Fuel Tank Cap

572161200

$35.79

29

Was 409901800 Tubing (13 mm)

219704400

$10.79

30

THROTTLE CABLE AND HOUSING - Call your local BRP dealership

414883100

Unavailable

31

Circlip

414274500

$0.85

32

Circlip

414753500

$0.67

33

Flat Washer 8 mm, Nylon

234081100

$1.15

34

Male Connector

414814100

$2.12

35

CHOKE CABLE - Call your local BRP dealership

414967000

Unavailable

36

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

37

Intake Grill

517285900

Unavailable

38

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

39

Air Filter

415037600

Unavailable

40

Socket Set Screw M8 X 10

414440800

$3.88

41

Handle Ass’Y

512059624

$85.79

Handle Ass'y

512060214

$114.15

42

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

43

Throttle Housing

512060603

$10.25

44

Screw

414473200

Unavailable

45

Lever Pin

414438700

$10.81

46

CLIP - Call your local BRP dealership

414351600

Unavailable

47

Foam Lower

415037700

Unavailable

48

CABLE CLIP - Call your local BRP dealership

414379300

Unavailable

49

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

50

Lock Washer, Interior Teeth

394103300

Unavailable

51

Flat Washer M5, Stainless

234051600

$0.73

52

Circlip | Model-RS

414439000

$4.01

53

Plate

512060390

$9.03

54

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

55

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

56

Air Filter

414972600

$56.69

57

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable
