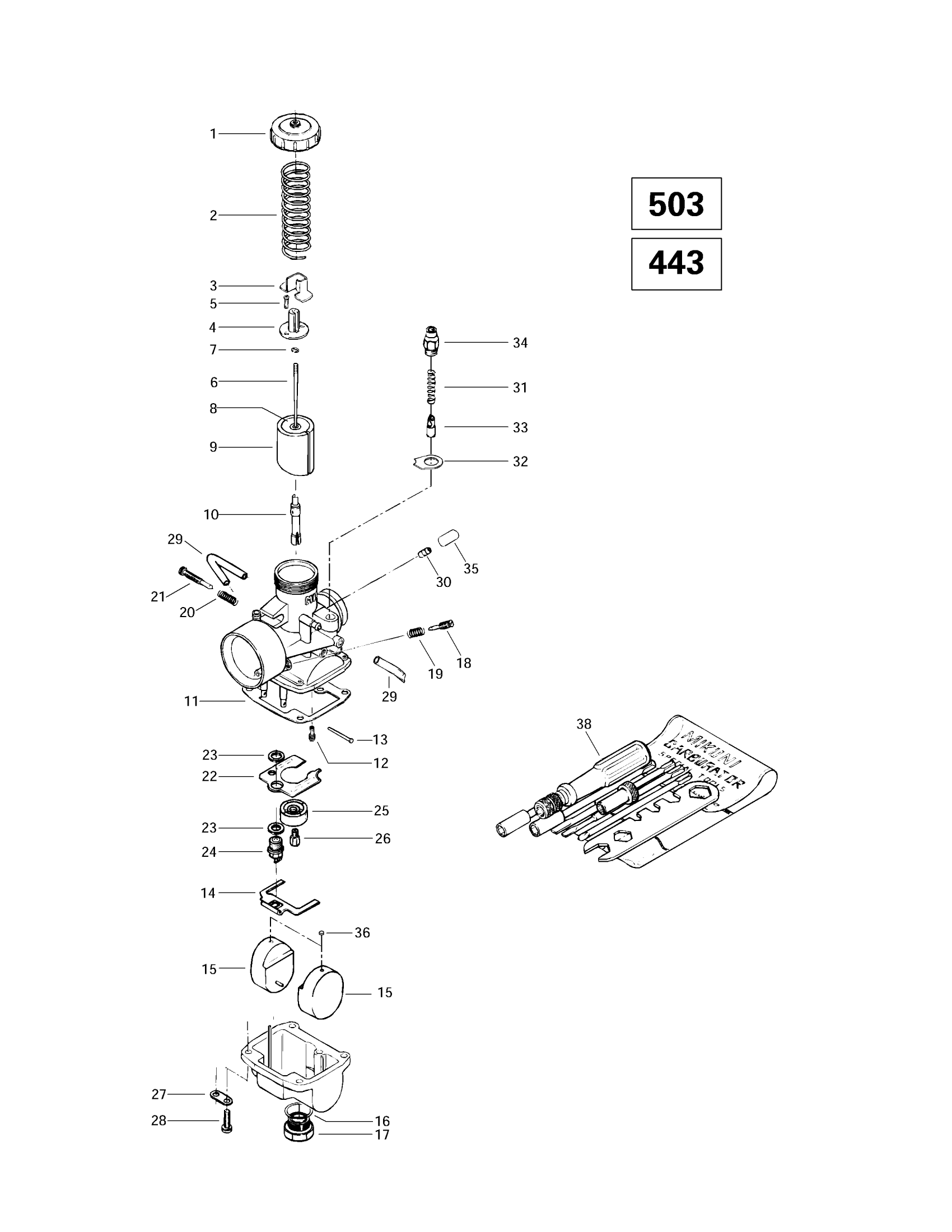

Ski-Doo Touring E LT, 1997 Carburetors (503, 443) Diagram

#

Description
Price

1

Carburetor VM 34 -467 | Includes 1 - 35. Touring LE.

403123500

Unavailable

1

Carburetor VM 34 481 (PTO) | Includes 1 - 36. Formula SL.

403127400

Unavailable

Carburetor VM 34 482 (MAG) | Formula SL.

403127500

Unavailable

1

Cover

404103700

$32.06

2

Spring

404154800

$24.60

3

Cover

404122100

$17.88

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.24

6

JET NEEDLE J8 6DH2 - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

404110400

Unavailable

7

E-Ring

404152400

$6.36

8

Packing

404117000

$3.31

9

Piston Valve 2.5

404128400

$124.60

10

Needle Jet NJ 159 | Skandic 500F. Skandic 500F (SWT).

404157100

Unavailable

NEEDLE JET - Call your local BRP dealership

404107000

Unavailable

11

Gasket | Includes 1900a to 1900am

404104200

$6.49

12

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

13

Lever Pin

404103300

$6.36

14

Float Lever

404107600

$23.85

15

FLOAT - Call your local BRP dealership

404107100

Unavailable

16

O-Ring

404107300

$7.90

17

Drain Plug Screw

404107400

$23.85

18

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

19

SPRING - Call your local BRP dealership

404139800

Unavailable

20

Spring

404101700

$4.24

21

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

22

BAFFLE - Call your local BRP dealership

404109600

Unavailable

23

Seat Washer

404101600

$3.21

24

Needle Valve 1.5

404103200

$32.06

25

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

26

Main Jet 180

404112200

$5.29

Main Jet 180

404112200

$5.29

Main Jet MJ 170 (MAG) | MX Z 500 F. Formula DLX 500 F.

404123800

$5.29

27

PLATE - Call your local BRP dealership

404103000

Unavailable

28

Screw With Lock Washer

404102000

$3.19

29

Hose | Grand Touring SE.

404109800

Unavailable

30

Nipple

404153400

$11.16

NIPPLE - Call your local BRP dealership

404127600

Unavailable

31

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

32

Plate | Formula S.

404156400

Unavailable

33

Plunger Ass'y | Formula Deluxe 380.

404127500

Unavailable

34

Guide Holder

404127200

Unavailable

35

Cap

404156600

$15.64

36

Cap

404105800

$6.49

37

High Altitude Kit (Not Shown) | Touring LE.

861757600

Unavailable

High Altitude Kit (Not Shown) | Touring SLE.

861757500

Unavailable

38

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
