1997 Ski-Doo Touring E LT Engine Support AND Muffler Diagram

← All diagrams

Find the part on the Engine Support AND Muffler diagram for your 1997 Ski-Doo Touring E LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

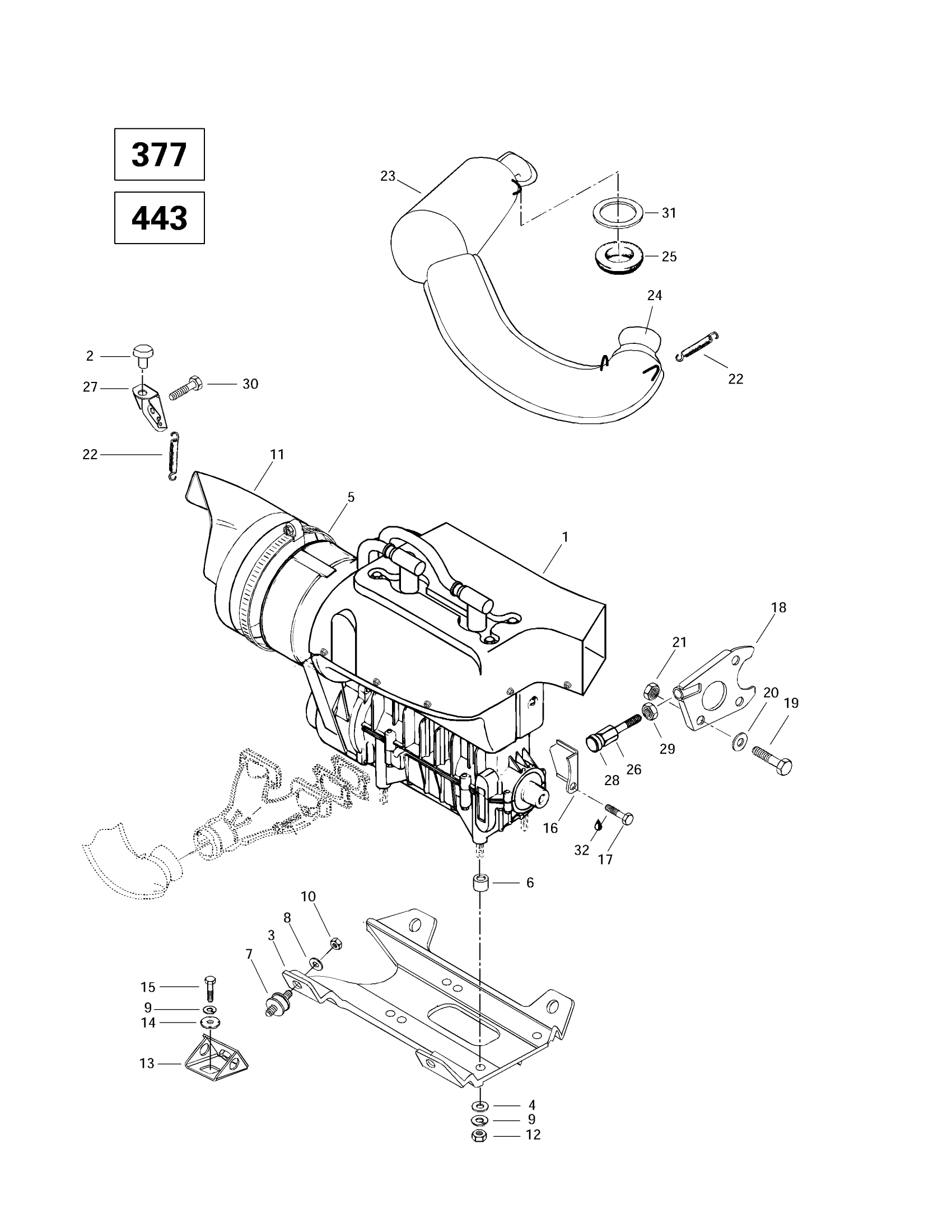

1997 Ski-Doo Touring E LT Engine Support AND Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

<<377>> Engine | Formula S.

400308500

—
Out of stock

<<443 F>> Engine

400407900

—
Out of stock

2

Rubber Bumper

570044700

2
Out of stock

3

Engine Support

512054500

—
Out of stock

4

Flat Washer 10 mm

234001410

4
Out of stock

5

Gear Clamp Tridon | Formula S.

408803600

—
Out of stock

6

Spacer | Formula Deluxe 380.

512051900

—
Out of stock

7

RUBBER MOUNT - Call your local BRP dealership

570127700

—
Out of stock

8

Flat Washer 10 mm

234001410

4
Out of stock

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

—
Out of stock

10

Elastic Locking Nut M10 X 1.5

233601416

4
Out of stock

11

Air Deflector | Formula S.

572058400

—
Out of stock

12

Hex. Nut M10 X 1.5

232006414

4
Out of stock

13

Support | Formula S.

512055400

—
Out of stock

14

Lock Washer

512056700

4
Out of stock

15

4

$1.11

In stock

16

Stopper Plate

512052200

—
Out of stock

17

Hex. Screw M8 X 20

207182044

1
Out of stock

18

Support Plate

517271800

—
Out of stock

19

Hex. Screw M8 X 25

207182544

1

$0.74

In stock

20

Flat Washer 8 mm

234081410

1
Out of stock

21

Hex. Elastic Stop Nut M8

232581414

1
Out of stock

22

SPRING - Call your local BRP dealership

517182100

—
Out of stock

23

Muffler | Formula S.

514046000

—
Out of stock

24

Female Ball Joint | Formula S.

420973530

—
Out of stock

25

EXHAUST GROMMET - Call your local BRP dealership

570039000

—
Out of stock

26

Screw

517244200

—
Out of stock

27

Muffler Support | Formula S.

514038800

—
Out of stock

28

Rod retainer

570025100

—
Out of stock

29

—

$0.85

In stock

30

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

—
Out of stock

31

Exhaust Grommet | Formula S.

570049400

—
Out of stock

32

Loctite 271, 10 ml

293800005

1
Out of stock
