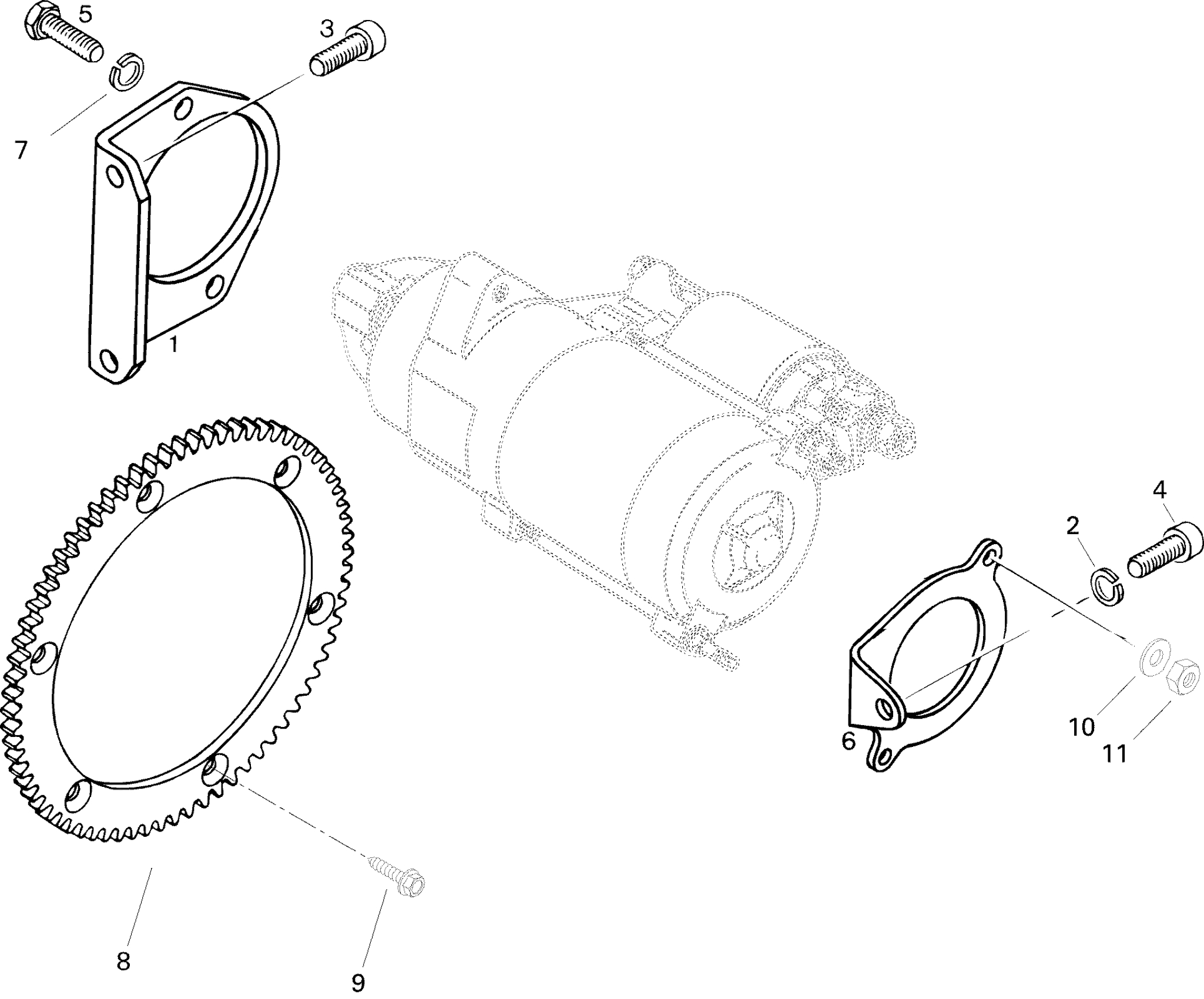

Ski-Doo Touring E LT, 1996 Electric Starter Bracket E, E LT, LE Diagram

#

Description

Price

1

Starter Bracket (PTO) | Formula Deluxe 380 F.

420951692

Unavailable

2

Washer-Lock Din.128

420945832

Unavailable

3

Socket Head Screw M8 X 25

205082544

Unavailable

4

Socket Head Screw M8 X 20

205082044

$1.09

5

Hex. Screw M8 X 25

207182544

Unavailable

6

Starter Support (MAG) | Formula Deluxe 380 F.

420951702

Unavailable

7

Lock Washer 8 mm

234181401

Unavailable

8

Ring Gear (86 Theet) | Formula Deluxe 380 F.

414807500

$138.43

9

Screw M6 x 16 | Formula Deluxe 380.

732600021

Unavailable

10

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

11

Elastic Stop Nut M5

232551414

Unavailable
