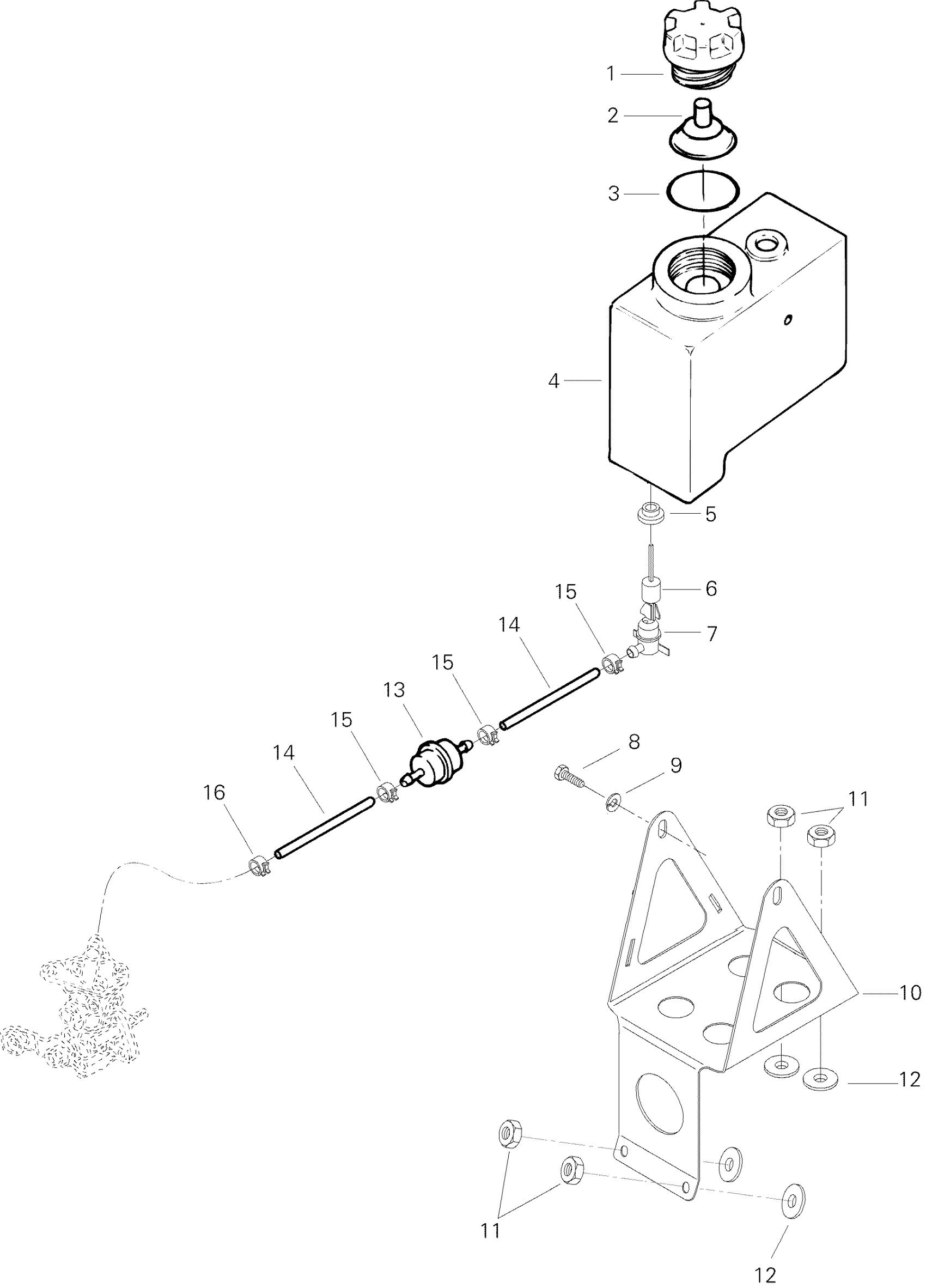

Ski-Doo Touring E LT, 1996 Oil Tank And Support Diagram
#
Description
Price
1
Oil Tank Cap Ass’y | Includes 1 to 3
580578100
Unavailable
2
Baffle
572010500
Unavailable
4
Oil Tank
571002500
Unavailable
5
Insulating Ring
570023000
Unavailable
6
Float
414681900
Unavailable
7
LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A
414681800
Unavailable
8
HEX. SCREW M6 X 12 - Call your local BRP dealership
207161244
Unavailable
10
Oil Reservoir Support
517264800
Unavailable
11
Elastic Stop Nut M6
232561414
Unavailable
16
Spring Clamp
414420700
Unavailable
