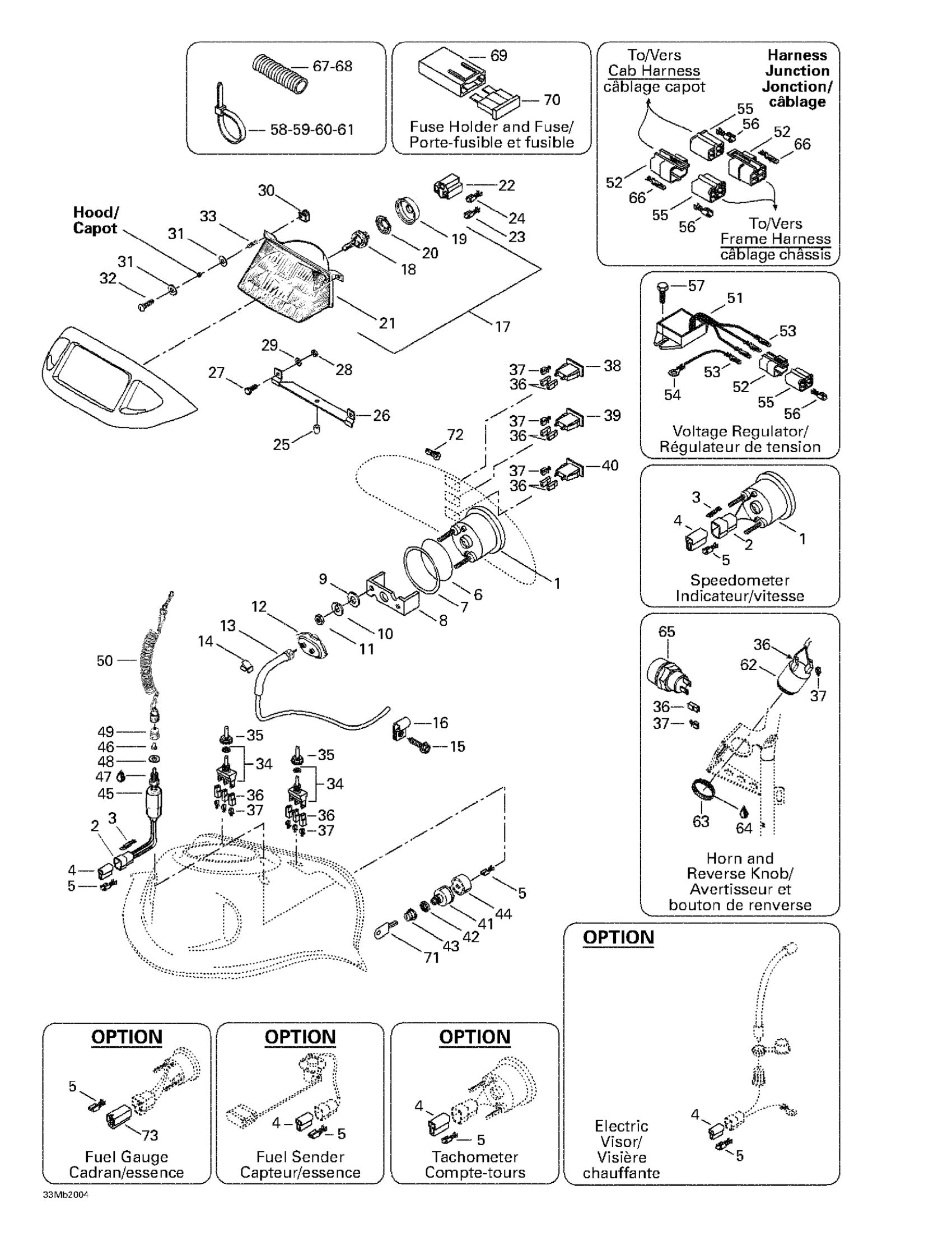

Ski-Doo Touring E, 2000 Electrical System Diagram

#

Description
Price

1

Speedometer (KMH) | Formula DLX 380. Formula DLX 500.

515175337

Unavailable

Speedometer (MPH) | Formula DLX 380. Formula DLX 500.

515175338

Unavailable

2

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

3

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

4

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

5

Female Terminal

561503100

Unavailable

6

O-Ring

414807100

Unavailable

7

Washer

517258500

Unavailable

8

Case Holder

414806500

Unavailable

9

Flat Washer

517225900

$0.17

10

Lock Washer

414806700

Unavailable

11

Nut

414806900

Unavailable

12

Drive Angle

515175400

Unavailable

13

Speedometer Cable

414761400

Unavailable

14

Clip

414227300

$1.45

15

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

16

Open Clamp

414176000

$1.86

17

Headlamp | Includes 42 to 45

410609100

Unavailable

18

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

19

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

20

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

21

Headlamp | Includes 53 to 56

410609300

Unavailable

22

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

23

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

24

FEMALE TERMINAL - Call your local BRP dealership

409011500

Unavailable

25

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

26

Headlamp Support

517218500

Unavailable

27

Hex. Screw M5 X 12

207151244

$0.74

28

Elastic Stop Nut M5

232551414

$0.72

29

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

30

Projector Nut

572078600

Unavailable

31

Flat Washer M5

234051410

$0.44

32

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

33

Spring

517168600

$6.91

34

Switch (Heating Grip) | FREERIDE

410107300

$34.58

35

Switch Cover

515175281

$15.03

36

Female Terminal Housing, 1 Circuit

409010400

$7.48

37

Female Terminal

409010100

$5.46

38

Pilot Lamp (Red)

410109500

Unavailable

39

Pilot Lamp (Blue)

410109600

Unavailable

40

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

Unavailable

41

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

42

FACE NUT - Call your local BRP dealership

410112100

Unavailable

43

Switch Boot

570013700

$10.82

44

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

45

Brake Switch

515175653

$15.57

46

Plunger Cap

570151100

$10.14

47

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Switch Nut

515145900

$10.83

50

Cap Ass'y

515178283

$37.66

51

VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

515163900

Unavailable

52

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

55

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

56

Female Terminal PACKARD

561503200

Unavailable

57

Hex. Flange Screw M6 X 16

210261650

$1.22

58

Tie Wrap 94 mm | 4X4

293750001

$0.83

59

Tie Wrap 368 mm

293750008

$0.85

60

Tie-Rap 180 mm

414115200

$0.09

61

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

62

HORN - Call your local BRP dealership

515176035

Unavailable

63

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

64

Silicone Sealant 51388, 300 ml

296000309

$35.72

65

Push Button

415130372

$124.99

66

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

67

Fuse Holder

409004000

$7.00

68

Tubing 10 MM 1000MM Long

219704407

$2.20

69

Fuse Holder

409004000

$7.00

70

Fuse, 30 Amperes

410917200

$3.22

71

Blank Key

415129350

Unavailable

72

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

73

Female Housing

409204300

Unavailable
