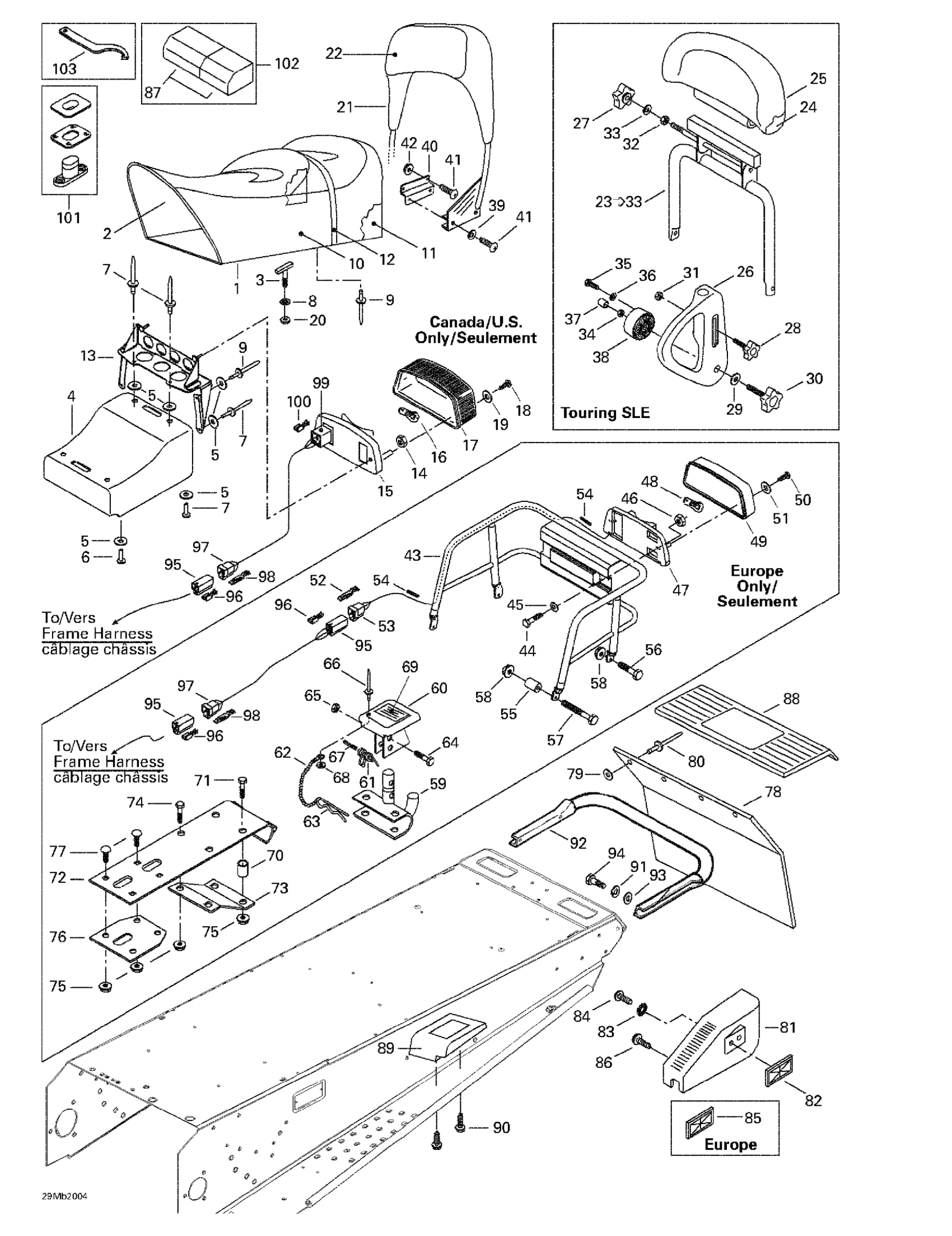

Ski-Doo Touring E, 2000 Seat And Accessories Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Sub Seat
510003596
Unavailable
Sub Seat
510003597
Unavailable
3
«T» Bolt
732601221
Unavailable
4
Rear Trunk | GT 700.
572051200
Unavailable
5
Flat Washer M5
234051410
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Push Nut
732610072
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Seat Cover
510003674
Unavailable
Seat Cover (Europe) | Touring E. Touring SLE.
510003678
Unavailable
11
Seat Foam
415038202
Unavailable
12
Seat Belt
415064800
Unavailable
13
Lens Rear Support
517264500
Unavailable
14
Hex. Flange Elastic Nut M5
233251414
Unavailable
15
LIGHT HOUSING - Call your local BRP dealership
510004061
Unavailable
17
Lens
414513700
Unavailable
18
Phillips Tapping Screw M3.9 X 25
209632540
Unavailable
19
Washer - Call your local BRP dealership
414516400
Unavailable
20
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
21
Seat Backrest Ass'y | Includes 21 - 22. 380 F.
415104700
Unavailable
22
Backrest Cover | 380 F.
415104703
Unavailable
23
Seat Backrest Ass'y | Includes 27 - 42. 500 F.
510003717
Unavailable
24
Foam
510003779
Unavailable
25
Cover | 500 F.
510003780
Unavailable
26
Arm RH | GT 550F
510003542
Unavailable
Arm LH | GT 550F
510003607
Unavailable
27
Fem. Handle M8 x 1.25 mm | GT 550F
510003532
Unavailable
28
Handle M8 X 35 | Model-T3
510003533
Unavailable
29
WASHER - Call your local BRP dealership | GT 550F
732900050
Unavailable
30
Male Handle M12 x 50 mm | GT 550F
510003534
Unavailable
31
Hex. Nut | GT 550F
510003576
Unavailable
32
Hex. Nut | GT 550F
510003578
Unavailable
33
Lock Washer | GT 550F
510003584
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
Hex. Screw M8 X 25
207182544
Unavailable
36
Lock Washer 8 mm | 550 F.
243181601
Unavailable
37
Hose | GT 550F
510003628
Unavailable
38
Pivot (40 Tooth) | GT 550F
510003543
Unavailable
39
Lock Washer 8 mm, Stainless
234181601
Unavailable
40
Z-Plate | GT 380F
510003609
Unavailable
41
Hex. Screw M8 X 20
236282084
Unavailable
42
Hex. Flange Elastic Nut M8
233281414
Unavailable
43
Rack | GT
517273100
Unavailable
44
Hex. Screw M5 X 30
207053044
Unavailable
45
WASHER - Call your local BRP dealership | MX Z X 600RS
517297900
Unavailable
46
Hex. Flange Elastic Nut M5
233251414
Unavailable
47
LAMP HOUSING - Call your local BRP dealership
515175397
Unavailable
49
Lens
414513700
Unavailable
50
Phillips Tapping Screw M3.9 X 25
209632540
Unavailable
51
Washer - Call your local BRP dealership
414516400
Unavailable
52
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
54
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
55
Spacer
517185600
Unavailable
58
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
59
Hitch | Europe
517199300
Unavailable
60
Hitch Protector | Europe
517152700
Unavailable
61
SPRING - Call your local BRP dealership | Europe
517152800
Unavailable
62
Not Available As Spare Part - Friction Washer
Unavailable
63
Hair Pin
114045200
Unavailable
64
Hex. Screw M6 X 30
207063044
Unavailable
65
Elastic Stop Nut M6
232561414
Unavailable
66
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe
390409400
Unavailable
67
SPRING PIN M3 X 24 - Call your local BRP dealership | Europe
732804000
Unavailable
68
Not Available As Spare Part - Friction Washer
Unavailable
69
Instruction Label (Hitch)
414998500
Unavailable
70
SPACER - Call your local BRP dealership | Europe
517191700
Unavailable
71
HEX. CAP SCREW M6 X 50 - Call your local BRP dealership
207065044
Unavailable
72
Support
511000019
Unavailable
73
REINFORCEMENT - Call your local BRP dealership | Europe
511000022
Unavailable
74
Hex. Screw M6 X 18
207161844
Unavailable
75
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
76
Inner Plate
517256100
Unavailable
77
Carriage Bolt M6 X 20 | DS 650 X
207762044
Unavailable
78
Snow Guard | Formula Deluxe 380 F.
572059700
Unavailable
81
RH Moulding Ass'y | Includes 82 - 85.
580642600
Unavailable
LH Moulding Ass'y
580642700
Unavailable
RH Moulding Ass'y (Cargo)
580642800
Unavailable
LH Moulding Ass'y (Cargo)
580642900
Unavailable
82
REFLECTOR, RED - Call your local BRP dealership
414510100
Unavailable
83
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3
234451418
Unavailable
84
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208651041
Unavailable
85
REFLECTOR, AMBER - Call your local BRP dealership
414510200
Unavailable
86
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
87
TOOLS BOX - Call your local BRP dealership
708200043
Unavailable
88
Upper Moulding
572076800
Unavailable
89
RH Footrest | Sport GT / SE GT
572088700
Unavailable
LH Footrest | Sport GT / SE GT
572088800
Unavailable
90
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
91
Lock Washer 8 mm
234181401
Unavailable
92
Rear Bumper
517243800
Unavailable
93
Flat Washer 8 mm
234081410
Unavailable
95
Female Housing
409204300
Unavailable
Female Housing
409204300
Unavailable
96
Female Terminal
561503100
Unavailable
98
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
99
Female Terminal Housing, 3 Circuits
515175250
Unavailable
100
Female Terminal
561503100
Unavailable
101
SEAT BUCKLE - Call your local BRP dealership
414728000
Unavailable
102
Tool Box With Tools | Includes 31 - 32.
529035571
Unavailable
TOOL KIT - Call your local BRP dealership
529035500
Unavailable
103
Adjustment Wrench
529000035
Unavailable
