2000 Ski-Doo Touring E Drive Pulley Diagram

← All diagrams

Find the part on the Drive Pulley diagram for your 2000 Ski-Doo Touring E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

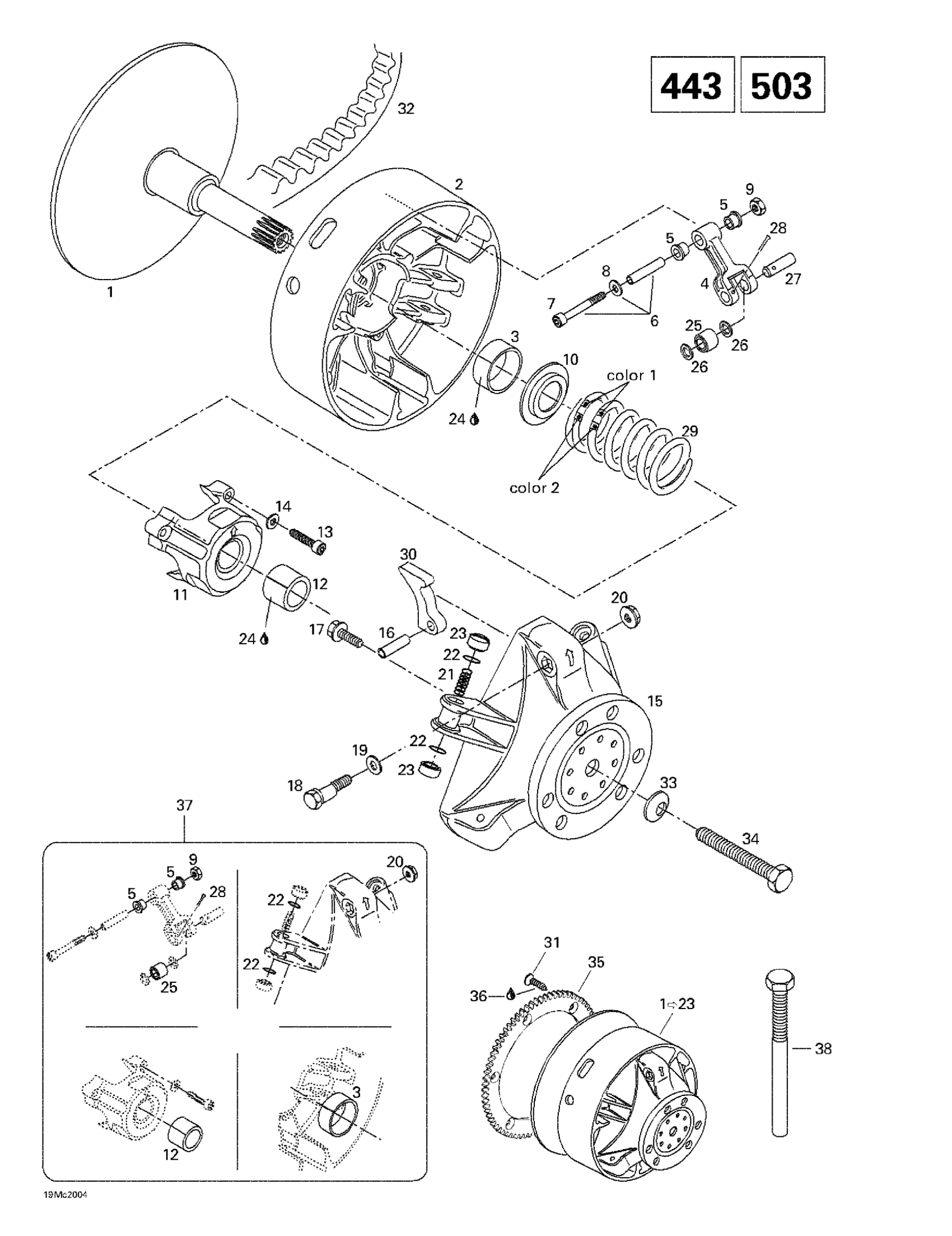

2000 Ski-Doo Touring E Drive Pulley Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Drive Pulley Ass'y | Includes 1 - 21. Formula DLX 500.

417222284

—
Out of stock

1

Fixe Flange | Formula DLX 500.

417222071

—
Out of stock

2

OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.

417222049

—
Out of stock

3

Bushing

417004201

1

$23.82

In stock

4

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

—
Out of stock

5

Bushing

417004305

6

$4.62

In stock

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

—
Out of stock

7

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

—
Out of stock

8

Flat Washer 6 mm

234061410

3

$1.04

In stock

9

Elastic Stop Nut M6

232561414

3
Out of stock

10

Spring Seat

417222044

—
Out of stock

11

Spring Cover Ass'y | Includes 9 - 10.

417222157

—
Out of stock

12

Bushing

417004501

1
Out of stock

13

Socket Screw M6 X 40

205064086

—
Out of stock

14

WASHER - Call your local BRP dealership

420245370

—
Out of stock

15

—

$349.20

In stock

16

Pin M8 X 24

732804009

—
Out of stock

18

—

$33.05

In stock

19

Washer

417005600

3
Out of stock

20

Hex. Flange Nut M6

233061414

3

$1.34

In stock

21

Spring

417005700

3

$4.65

In stock

22

O-Ring

732401030

6
Out of stock

23

Slider Shoe This part replaces 420460045.

417223021

6
Out of stock

24

Loctite 609, 10 ml

413703100

1

$24.58

In stock

25

Roller

417222947

3
Out of stock

26

Stopper Washer

417004302

6
Out of stock

27

Pin

417004309

3

$24.58

In stock

28

Cotter Pin

250400060

3
Out of stock

Clutch Spring

414689800

1

$43.05

In stock

30

Ramp 284 | Touring LE.

417005284

—
Out of stock

Ramp 292X | Grand Touring 500.

417005292X

—
Out of stock

31

Hex. Screw M8 X 16

236281684

6

$4.00

In stock

32

Drive Belt

415060600

1

$154.58

In stock

33

1

$2.65

In stock

34

—

$10.17

In stock

35

Ring Gear 86Th

417009400

—
Out of stock

36

Loctite 271, 10 ml

293800005

1

$20.77

In stock

37

Clutch Repair Kit

417006100

1

$175.35

In stock

38

Puller Inner Half

529007900

1

$58.99

In stock
