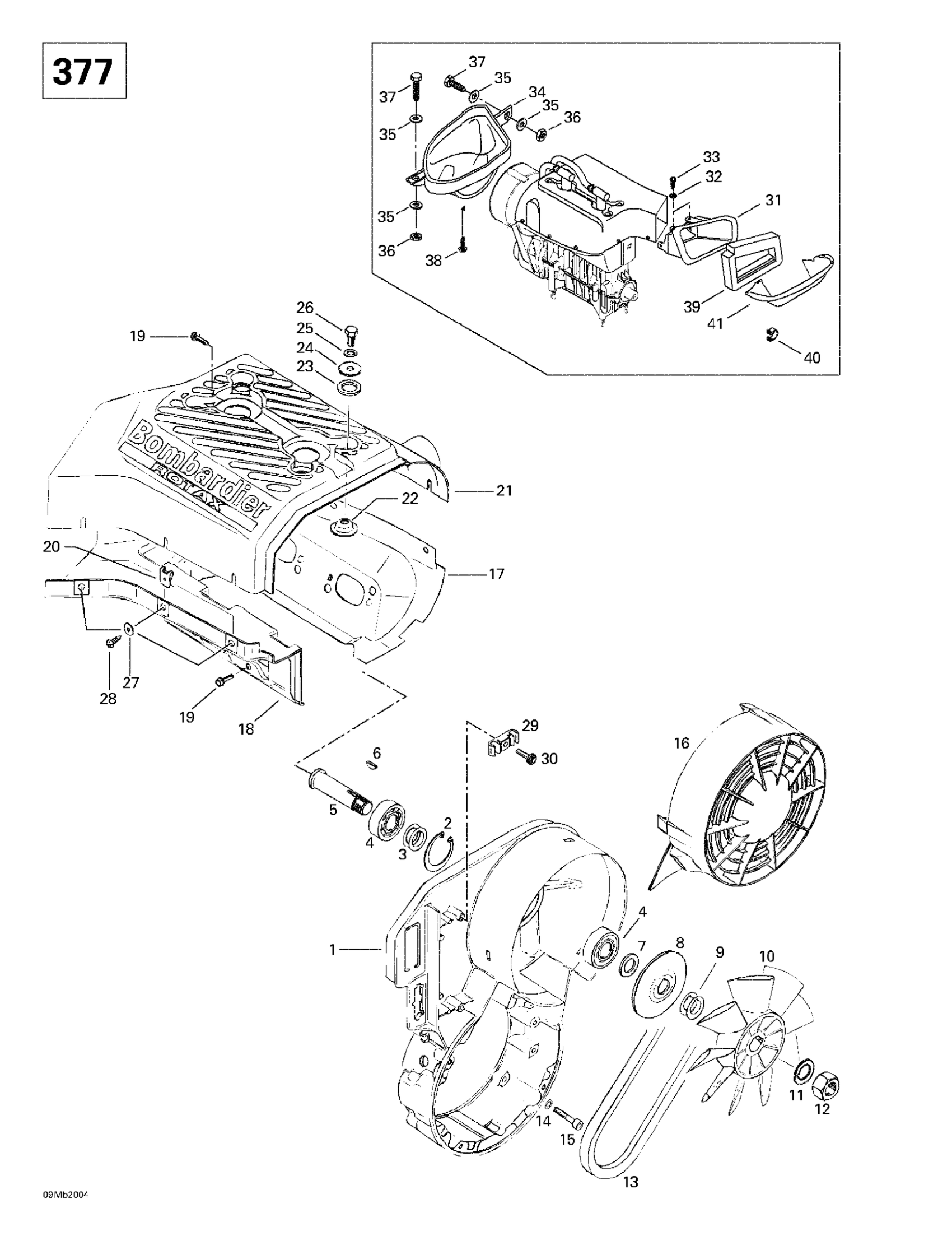

Ski-Doo Touring E, 2000 Cooling System And Fan (377) Diagram

#

Description
Price

1

Fan Housing

420811262

Unavailable

2

Lock Ring

420945880

$4.15

3

Shim

420244585

$1.78

4

Ball Bearing

420832161

$33.55

5

Fan Axle This part replaces 420937940.

420937941

$13.18

6

Woodruff Key

420246015

$3.01

7

Spacer Bushing

420827650

$10.96

8

Flange

420980496

$13.18

9

Shim 0.5 mm

420827080

$2.00

Shim 0.2 mm

420827082

$3.01

10

Fan

420866295

Unavailable

11

Lock Washer

420945756

$3.01

12

Nut M16 This part replaces 420942285.

420942289

$9.03

13

V-Belt | 380 F.

414630700

$23.10

14

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

15

Socket Head Screw M6 X 30

205063044

$1.63

16

Fan Cover

420975740

Unavailable

17

Cylinder Cowl (Exhaust Side) | Touring E.

420810544

Unavailable

18

Cylinder Cowl (Carburator Side)

420810797

Unavailable

19

TAPTITE SCREW M6 X 16 - Call your local BRP dealership

420240580

Unavailable

20

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

Unavailable

21

Cylinder Cowl

420810608

Unavailable

22

Cup Washer

420827817

$13.18

23

Rubber Washer

420960865

$2.00

24

Washer This part replaces 420227935.

420227936

$3.19

25

Washer-Lock Din.128

420945832

$1.06

26

Hex. Screw M8 x 16

207181644

$1.00

27

FLAT WASHER - Call your local BRP dealership

420926180

Unavailable

28

Tapping Screw M4.8 X 16

417300006

$0.69

29

CLAMP - Call your local BRP dealership

420860940

Unavailable

30

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

31

Outlet Duct

572098000

Unavailable

32

SERRATED LOCK WASHER M5 - Call your local BRP dealership

732900047

Unavailable

33

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

34

Inlet Duct

572097800

Unavailable

35

Washer

517124300

$0.18

36

Elastic Stop Nut M5

232551414

$0.82

37

Hex. Screw M5 X 16 | 4X4

207151644

$0.85

38

Tapping Screw

732601292

Unavailable

39

Seal

415104000

Unavailable

40

Clip

414479100

$1.81

41

Air Deflector

509000058

Unavailable
