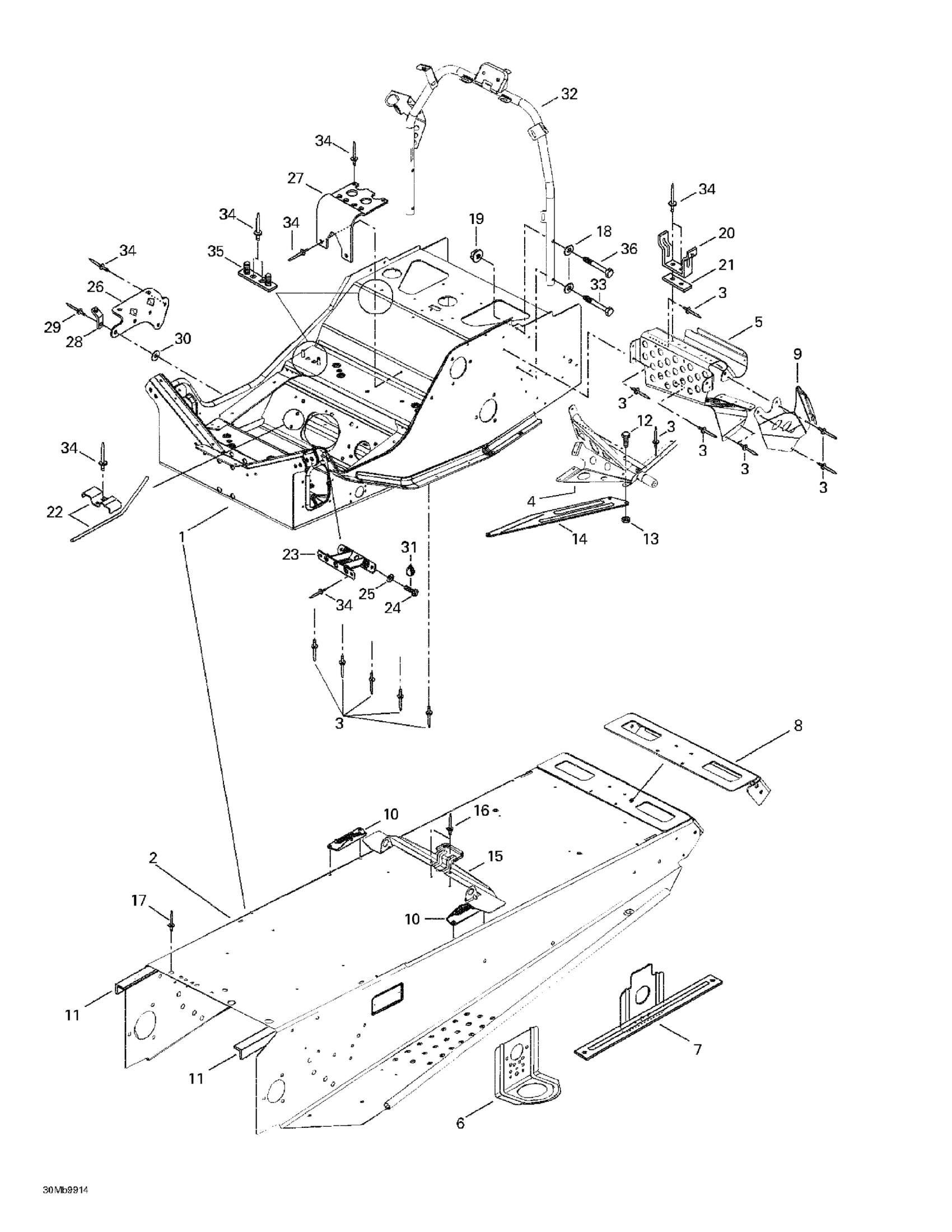

Ski-Doo Touring E, 1999 Frame And Accessories Diagram
#
1
Frame Ass'y | Includes 1 - 18.
518321649
Unavailable
2
Forming Frame (Tunnel)
518321671
Unavailable
RH Footrest Support
518320506
Unavailable
5
RH Front Footrest
518318933
Unavailable
LH Front Footrest
518318934
Unavailable
6
Front Bracket
518321495
Unavailable
7
LH Rear Bracket | Touring 380 F.
518316715
Unavailable
LH Rear Bracket | Touring 500 F.
518321497
Unavailable
RH Rear Bracket | Touring 380 F.
518316716
Unavailable
RH Rear Bracket | Touring 500 F.
518321496
Unavailable
8
Rear Cap
518321302
Unavailable
Rear Cap
518321619
Unavailable
9
Upper Plate L.H
518308714
Unavailable
Upper Plate R.H
518308715
Unavailable
10
RH Tank Bracket
517266900
Unavailable
LH Tank Bracket
517267000
Unavailable
11
LH Frame Reinforcement
518316768
Unavailable
RH Frame Reinforcement
518316769
Unavailable
12
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
13
Hex. Flange Elastic Nut M5
233251414
Unavailable
14
RH Reinforcement Plate
518316709
Unavailable
LH Reinforcement. Plate
518316710
Unavailable
15
Seat Bracket
518317506
Unavailable
16
Pop Rivet 3/16"
390402400
Unavailable
17
Pop Rivet 3/16"
390402300
Unavailable
18
Flat Washer 6 mm
234061410
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Guide Rope
517276100
Unavailable
23
Reinf. Plate
518304741
Unavailable
25
Lock Washer 8 mm
234181401
Unavailable
26
Muffler Support
518316704
Unavailable
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
27
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
29
Pop Rivet 3/16"
390402300
Unavailable
31
Loctite 271, 10 ml
293800005
Unavailable
32
Handle Steering Support
518321428
Unavailable
35
Support Plate
518315300
Unavailable
