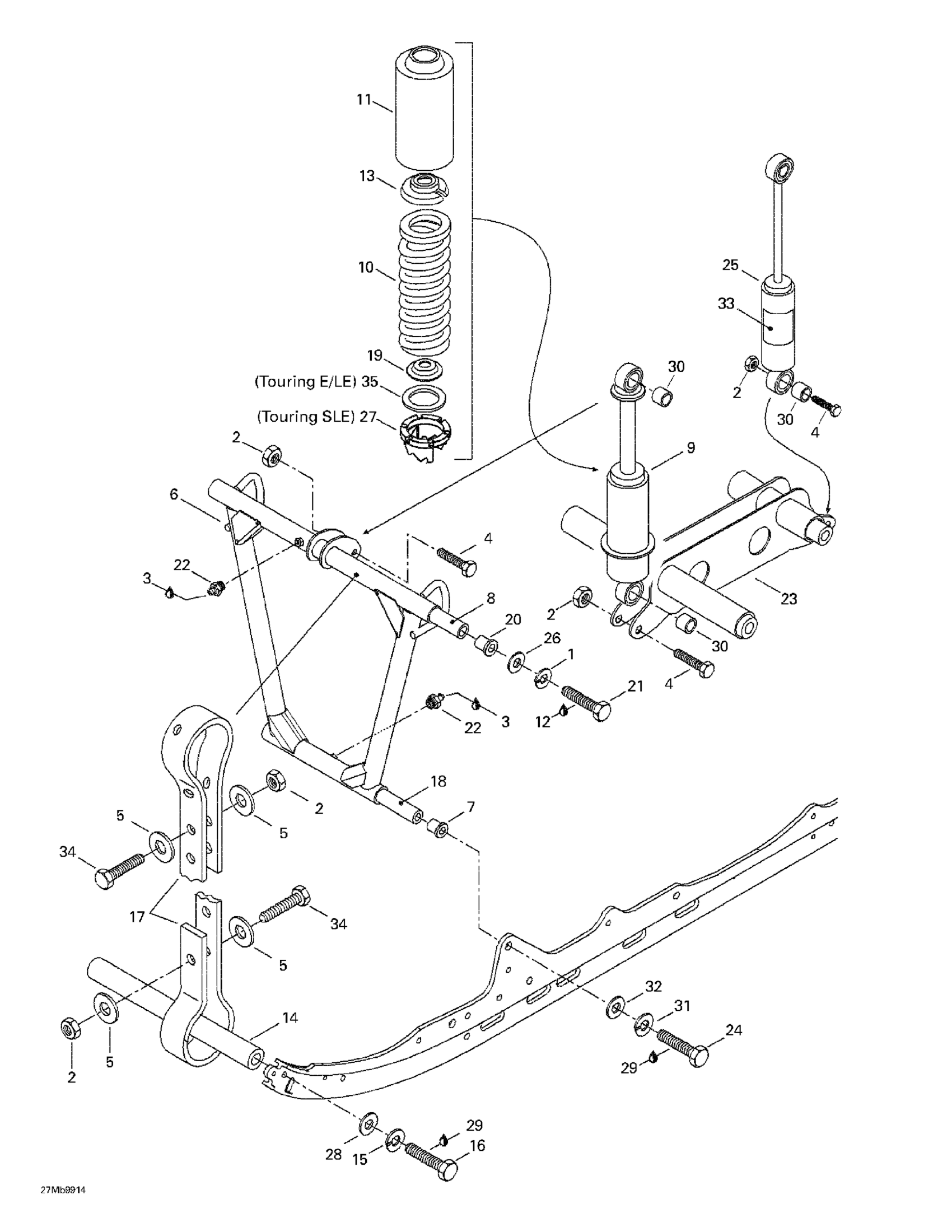

Ski-Doo Touring E, 1999 Front Arm, Rear Suspension Diagram
#
Description
Price
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Hex. Elastic Stop Nut M8
232581414
Unavailable
3
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
4
Hex. Screw M8 X 40
207084044
Unavailable
5
WASHER - Call your local BRP dealership
517078700
Unavailable
6
Welded Front Arm
503189222
Unavailable
7
Cushion
503188940
Unavailable
8
SHAFT - Call your local BRP dealership
503190387
Unavailable
9
Shock | Formula S.
503189174
Unavailable
Shock
503188906
Unavailable
10
Spring
415069900
Unavailable
Spring
415070500
Unavailable
11
Protector
503193663
Unavailable
15
Lock Washer 8 mm
234181401
Unavailable
16
Hex. Screw M8 X 30
207183044
Unavailable
17
Stopper Strap
570069300
Unavailable
18
Shaft
503182000
Unavailable
Spring Guide
503187500
Unavailable
21
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
22
Grease Fitting
408200700
Unavailable
23
Shock Support | Summit 700 HM.
503173300
Unavailable
24
Hex. Screw M12 x 60 | Formula Deluxe 500 LC. Formula Deluxe 583.
222026065
Unavailable
25
Rear Shock | Touring 380 F.
503188902
Unavailable
Rear Shock | Touring 500 F.
503188907
Unavailable
Shock (Europe) | Skandic 500.
503189262
Unavailable
26
Flat Washer 10 mm
234001410
Unavailable
27
Adjustment Cam
505073625
Unavailable
28
Flat Washer 8 mm
234081410
Unavailable
29
Loctite 271, 10 ml
293800005
Unavailable
30
CUSHION - Call your local BRP dealership
414802600
Unavailable
31
Lock Washer 12 mm
224721218
Unavailable
33
Shock Decal | Formula Deluxe 500.
516000181
Unavailable
HPG Decal (Europe)
516000182
Unavailable
34
Hex. Screw M8 X 25
207182544
Unavailable
