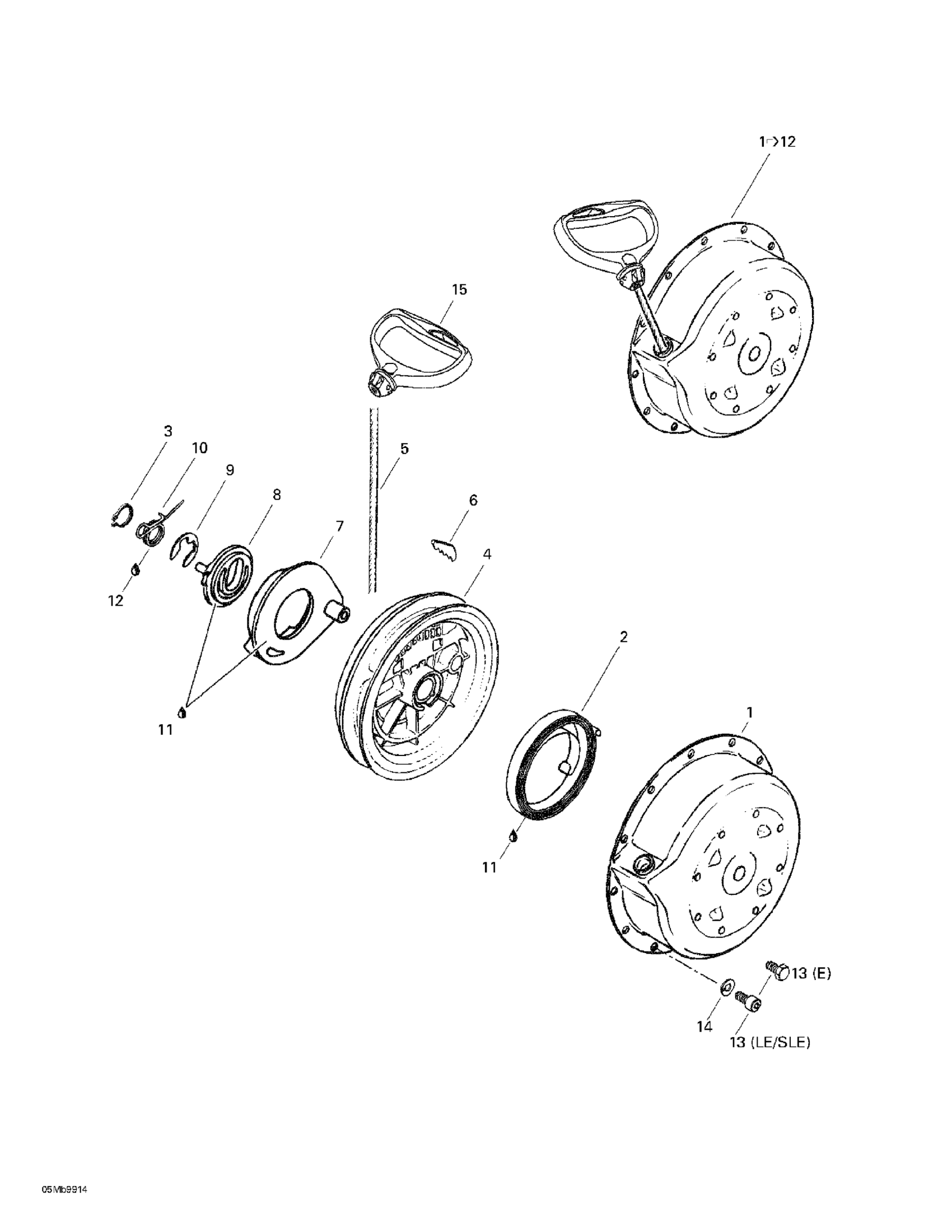

Ski-Doo Touring E, 1999 Rewind Starter Diagram
#
Description
Price
1
Rewind Starter Ass'y | Includes 1 - 11.
420888120
Unavailable
1
Starter Housing
420910068
Unavailable
3
LOCK RING - Call your local BRP dealership
420945770
Unavailable
4
Rope Sheave
420852283
Unavailable
5
Was 412500100 Rope-Starter
219704403
Unavailable
6
Key Clamp
420852070
Unavailable
7
Pawl
420852296
Unavailable
8
PAWL LOCK - Call your local BRP dealership | Formula 500 LC.
420852301
Unavailable
9
CIRCLIP - Call your local BRP dealership
420845300
Unavailable
10
Pawl Spring
420938986
Unavailable
11
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Hex. Screw M6 X 16
207161644
Unavailable
Socket Head Screw M6 x 16
420241237
Unavailable
14
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
15
Starter Grip
572084400
Unavailable
