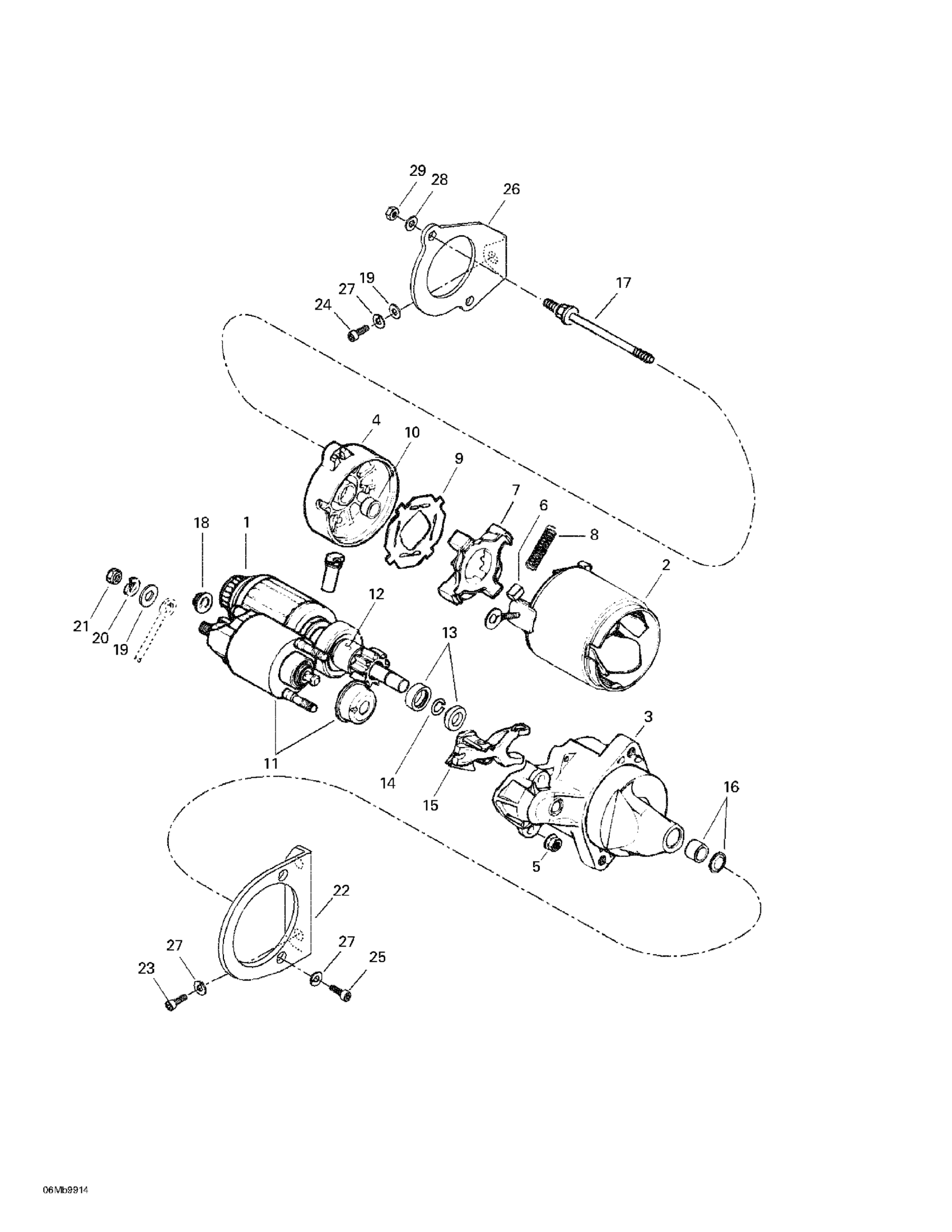

Ski-Doo Touring E, 1999 Electric Starter Diagram
#
Description
Price
1
ELECTRIC STARTER ASSY - Call your local BRP dealership
410212400
Unavailable
1
Armature Assy.
410210200
Unavailable
3
Housing
410210800
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
6
BRUSH - Call your local BRP dealership
410209600
Unavailable
7
BRUSH HOLDER - Call your local BRP dealership
410209700
Unavailable
9
INSULATOR - Call your local BRP dealership
410209900
Unavailable
10
BRASS BUSHING - Call your local BRP dealership
410210100
Unavailable
15
LEVER - Call your local BRP dealership
410210700
Unavailable
19
Flat Washer 8 mm
234081410
Unavailable
20
Washer-Lock Din.128
420945832
Unavailable
21
Hex. Nut M8
232081414
Unavailable
22
Starter Bracket (PTO) | Formula Deluxe 380 F.
420951692
Unavailable
Starter Bracket (PTO) | Formula DLX 500.
420951418
Unavailable
23
Socket Head Screw M8 X 25
205082544
Unavailable
25
Socket Head Screw M8 X 25
205082544
Unavailable
26
Starter Support (MAG) | Formula Deluxe 380 F.
420951702
Unavailable
Starter Support (MAG) | Formula DLX 500 F.
420951427
Unavailable
27
Lock Washer 8 mm
234181401
Unavailable
28
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
29
Elastic Stop Nut M5
232551414
Unavailable
