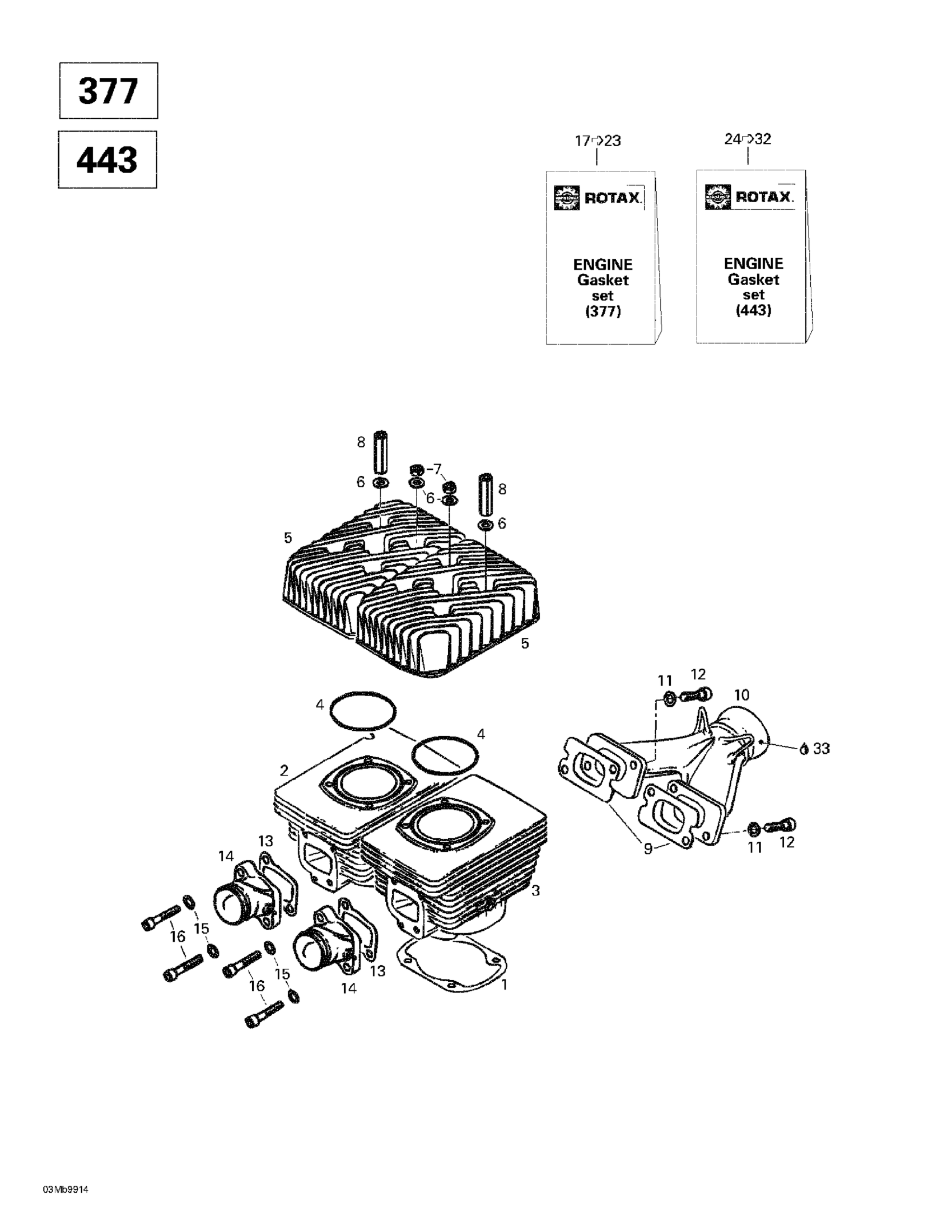

Ski-Doo Touring E, 1999 Cylinder, Exhaust Manifold (377, 443) Diagram
#
1
GASKET 0.6 - Call your local BRP dealership
420931782
Unavailable
GASKET 0.4 - Call your local BRP dealership
420430351
Unavailable
GASKET 0.3 - Call your local BRP dealership
420931780
Unavailable
2
Cylinder with Sleeve, PTO | Formula Deluxe 380.
420923402
Unavailable
Cylinder with Sleeve,P.T.O
420923348
Unavailable
3
Cylinder with Sleeve, MAG | Formula Deluxe 380.
420923407
Unavailable
Cylinder with Sleeve, MAG
420923358
Unavailable
4
O-Ring
420931380
Unavailable
5
Cylinder Head | Formula Deluxe 380.
420923600
Unavailable
Cylinder Head | MX Z 440 F.
420923375
Unavailable
6
Flat Washer 8.4 mm
420250315
Unavailable
7
Hex. Nut M8
232081414
Unavailable
8
Distance Nut M8
420842385
Unavailable
DISTANCE NUT M8 X 51 - Call your local BRP dealership
420842208
Unavailable
9
GASKET - Call your local BRP dealership
420850114
Unavailable
10
Exhaust Manifold Ass'y
420978437
Unavailable
11
Lock Washer 8 mm
234181401
Unavailable
12
Socket Head Screw M8 X 30
205083044
Unavailable
13
INTAKE GASKET 1.0 MM - Call your local BRP dealership
420831867
Unavailable
14
INTAKE SOCKET ASS?Y - Call your local BRP dealership
420867408
Unavailable
15
Washer-Lock Din.128
420945832
Unavailable
16
Screw M8 X 35
420841591
Unavailable
17
GASKET SET, ENGINE - Call your local BRP dealership
420994232
Unavailable
18
O-Ring, 64 mm X 2 mm
293300022
Unavailable
19
Oil Seal This part replaces 290831952.
420831952
Unavailable
20
GASKET 0.4 - Call your local BRP dealership
420430351
Unavailable
21
O-Ring
420931380
Unavailable
22
GASKET - Call your local BRP dealership
420850114
Unavailable
23
INTAKE GASKET 1.0 MM - Call your local BRP dealership
420831867
Unavailable
24
GASKET SET, ENGINE - Call your local BRP dealership
420994232
Unavailable
25
O-Ring, 64 mm X 2 mm
293300022
Unavailable
26
Oil Seal This part replaces 290831952.
420831952
Unavailable
27
GASKET 0.4 - Call your local BRP dealership
420430351
Unavailable
28
O-Ring
420931380
Unavailable
29
GASKET - Call your local BRP dealership
420850114
Unavailable
30
INTAKE GASKET 1.0 MM - Call your local BRP dealership
420831867
Unavailable
31
Sealing Washer
404146600
Unavailable
32
Piston Circlip
420945735
Unavailable
33
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
