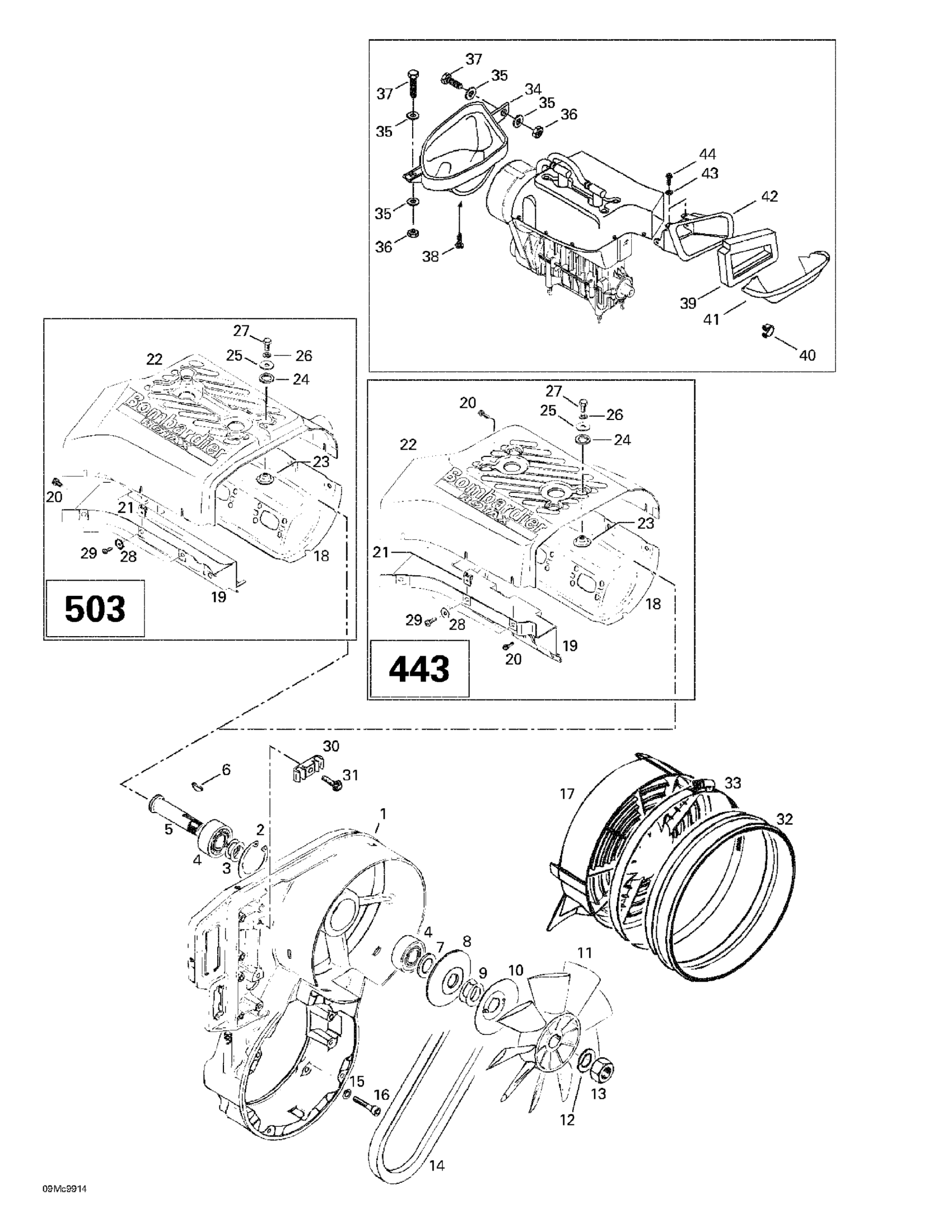

Ski-Doo Touring E, 1999 Cooling System Fan (443, 503) Diagram
#
1
Fan Housing This part replaces 420912203.
420912230
Unavailable
2
Lock Ring
420945880
Unavailable
3
Shim
420244585
Unavailable
4
Ball Bearing
420832161
Unavailable
5
Fan Axle This part replaces 420937940.
420937941
Unavailable
6
Woodruff Key
420246015
Unavailable
7
Spacer Bushing
420827650
Unavailable
8
Flange
420980496
Unavailable
9
Shim 0.5 mm
420827080
Unavailable
Shim 0.2 mm
420827082
Unavailable
10
Protection Washer
420980523
Unavailable
11
FAN - Call your local BRP dealership
420866292
Unavailable
12
Lock Washer
420945756
Unavailable
13
Nut M16 This part replaces 420942285.
420942289
Unavailable
15
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
16
Socket Head Screw M6 X 30
205063044
Unavailable
18
Cylinder Cowl (Exhaust Side)
420810762
Unavailable
Cylinder Cowl, Exhaust Side | Formula Deluxe 500.
420810543
Unavailable
19
Cylinder Cowl (Carburator Side)
420810790
Unavailable
Cylinder Cowl (Carburator Side) | Formula Deluxe 500.
420810545
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
21
SPRING NUT U #10-24 - Call your local BRP dealership
417300005
Unavailable
22
CYLINDER COWL - Call your local BRP dealership | MX Z 440 F.
420810776
Unavailable
Cylinder Cowl | MX Z 500 F. Formula DLX 500 F.
420810603
Unavailable
23
Cup Washer
420827817
Unavailable
24
Rubber Washer
420960865
Unavailable
25
Washer This part replaces 420227935.
420227936
Unavailable
26
Washer-Lock Din.128
420945832
Unavailable
28
FLAT WASHER - Call your local BRP dealership
420926180
Unavailable
29
Tapping Screw M4.8 X 16
417300006
Unavailable
30
CLAMP - Call your local BRP dealership
420860940
Unavailable
31
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
420941251
Unavailable
32
Rubber Adaptor | MX Z 440 F.
570068200
Unavailable
33
Tridon Gear Clamp | MX Z 440 F.
408803700
Unavailable
34
Inlet Duct
572097800
Unavailable
35
Washer
517124300
Unavailable
36
Elastic Stop Nut M5
232551414
Unavailable
37
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
38
Tapping Screw
732601292
Unavailable
39
Seal
415036500
Unavailable
41
Air Deflector
572083800
Unavailable
42
OUTLET DUCT - Call your local BRP dealership
572083700
Unavailable
Outlet Duct
572083900
Unavailable
43
SERRATED LOCK WASHER M5 - Call your local BRP dealership
732900047
Unavailable
44
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
