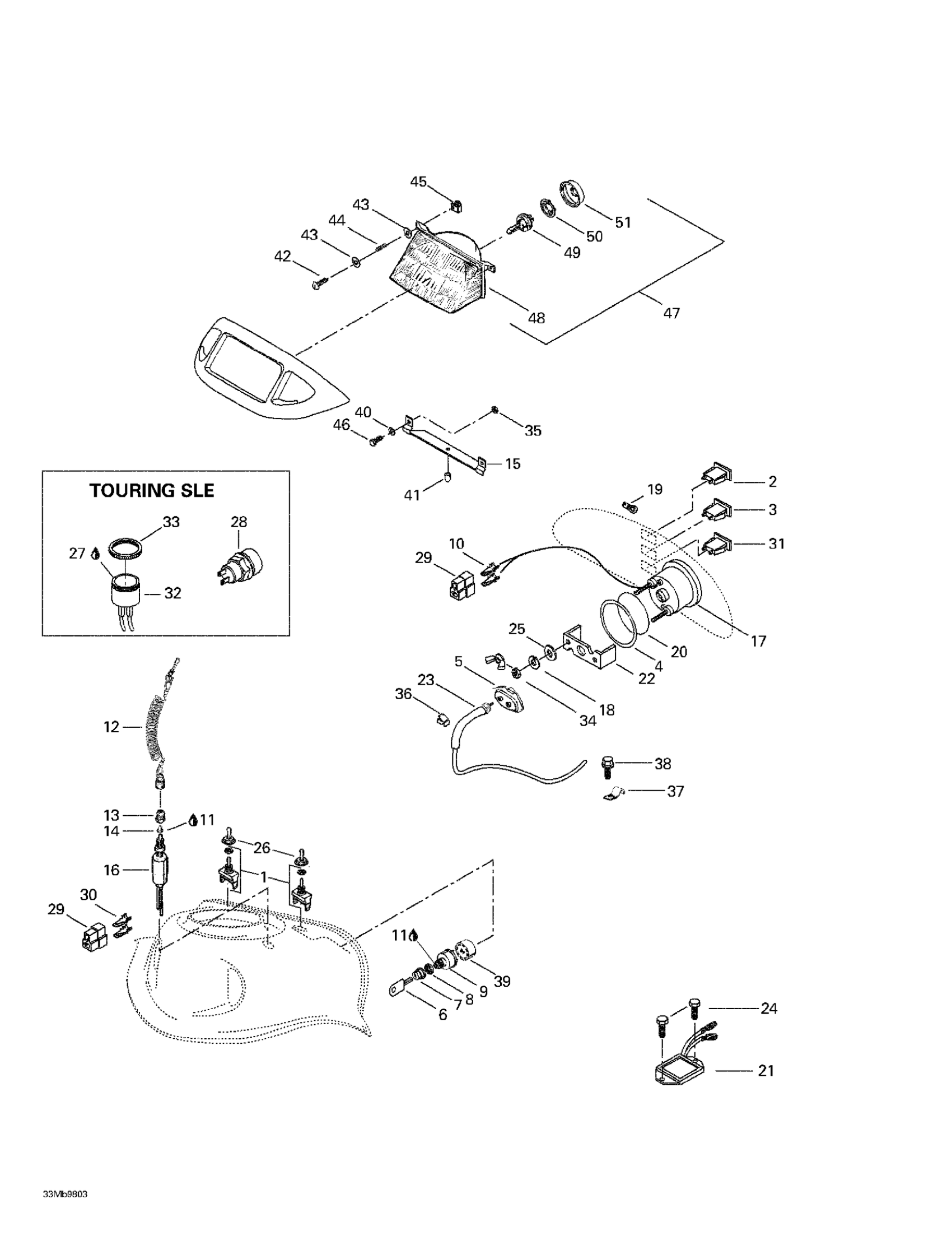

Ski-Doo Touring E, 1998 Electrical System Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$34.58

2

Pilot Lamp (Red)

410109500

Unavailable

3

Pilot Lamp (Blue)

410109600

Unavailable

4

Plate | Formula S.

414187300

Unavailable

Washer

517258500

Unavailable

5

Drive Angle | Formula S.

572022300

Unavailable

6

Blank Key

415129350

Unavailable

7

Switch Boot

570013700

Unavailable

8

FACE NUT - Call your local BRP dealership

410112100

$14.29

9

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

10

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

11

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

12

Cap Ass'y

515178283

$37.66

13

Switch Nut

515145900

$10.83

14

Plunger Cap

570151100

$10.14

15

Headlamp Support

517218500

Unavailable

16

Brake Switch

515175653

$15.57

17

Speedometer (KMH) | Formula S.

415096900

Unavailable

Speedometer (MPH)

415097100

Unavailable

Speedometer (KMH)

415097000

Unavailable

18

Lock washer | Quest XT 650.

250200026

$1.83

Lock Washer

414806700

Unavailable

19

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

20

O-Ring | Formula S.

414187200

Unavailable

O-Ring

414807100

Unavailable

21

VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

515163900

Unavailable

22

Case Holder | Formula S.

414187400

Unavailable

Case Holder

414806500

Unavailable

23

Speedometer Cable

414761400

Unavailable

24

Hex. Flange Screw M6 X 16

210261650

$1.22

25

Flat Washer

517225900

$0.17

26

Switch Cover

515175281

$15.03

27

Silicone Sealant 51388, 300 ml

296000309

Unavailable

28

Push Button

415130372

Unavailable

29

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

31

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

$9.98

32

HORN - Call your local BRP dealership

515176035

Unavailable

33

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

34

Nut

414806900

Unavailable

Wing Nut M5

414070300

Unavailable

35

Elastic Stop Nut M5

232551414

Unavailable

36

Clip

414227300

$1.45

37

Open Clamp

414176000

$1.86

38

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

39

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

40

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

41

RUBBER STOPPER - Call your local BRP dealership

410608200

$5.35

42

Screw M4 x 40

732603002

Unavailable

43

Flat Washer M5

234051410

Unavailable

44

Spring

517168600

Unavailable

45

Projector Nut

572078600

Unavailable

46

Hex. Screw M5 X 12

207151244

Unavailable

47

Headlamp | Includes 42 to 45

410609100

Unavailable

48

Headlamp | Includes 53 to 56

410609300

Unavailable

49

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

50

BULB HOLDER - Call your local BRP dealership

410608300

$9.97

51

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable
