Partiron

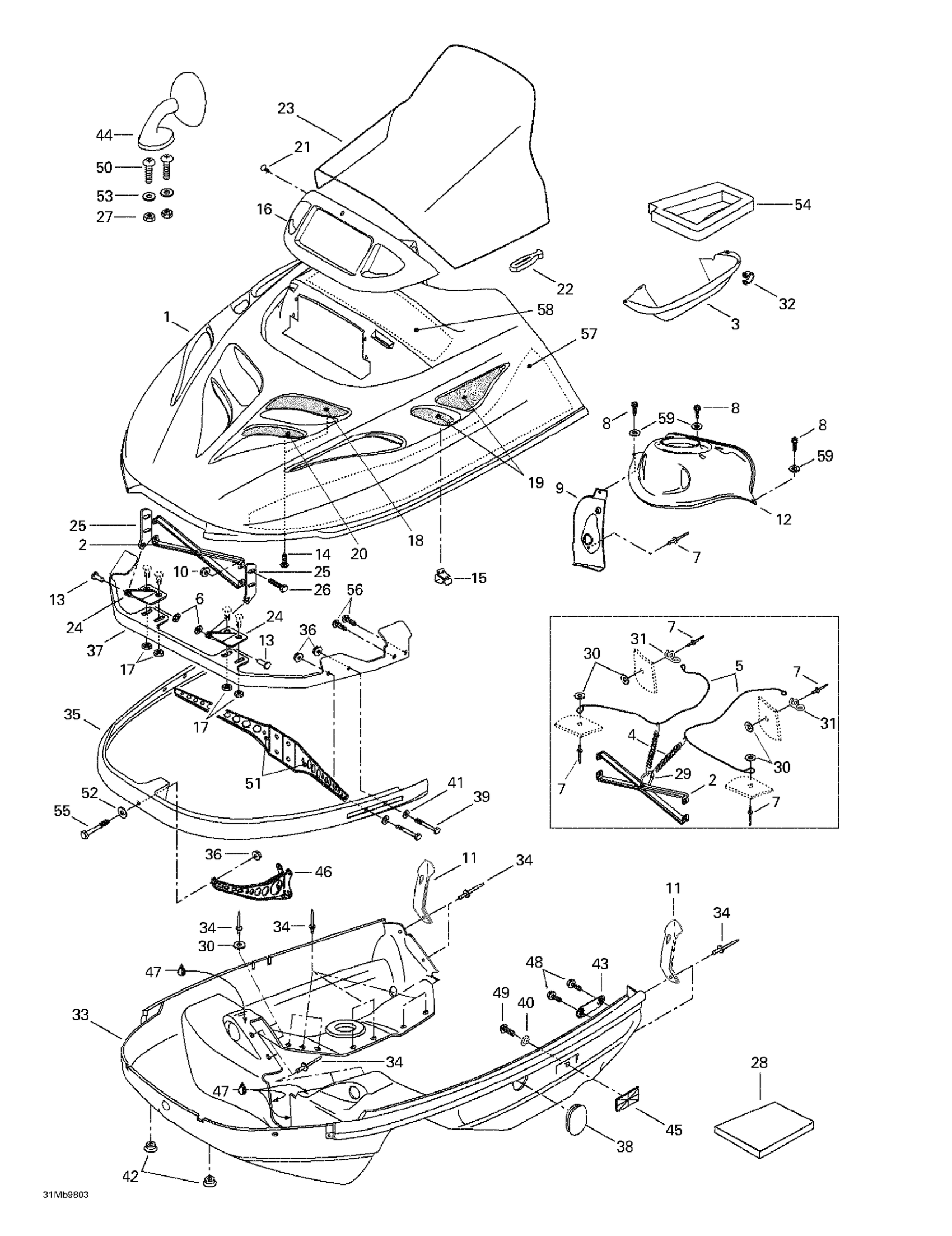

Ski-Doo Touring E, 1998 Cab, Console Diagram

#

Description
Price

1

Cab (Pine Green)

572077184

Unavailable

2

Hood Reinforcement

517278100

Unavailable

3

Air Deflector

572083800

Unavailable

4

Spring

414763300

Unavailable

5

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

6

Push Nut

389804300

$0.43

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

8

Forming Screw M5 x 16

250000676

$0.83

9

Handle Dash | MX Z 380 F.

572052101

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

Unavailable

11

Hood Latch

570027100

Unavailable

12

Dash-Switch

572052702

Unavailable

Dash-Switch | Touring SLE.

572052705

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Clip

414227300

$1.45

16

Lamp Moulding

572079200

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

RH Upper Grill | Formula S.

517277000

Unavailable

LH Upper Grill | Formula Deluxe 380.

517277100

Unavailable

LH Upper Grill

517277102

Unavailable

19

Side Grill (Black)

517280200

Unavailable

20

RH Front Grill | Formula S.

517265800

Unavailable

LH Front Grill | Formula Deluxe 380.

517265900

Unavailable

LH Front Grill

517265903

Unavailable

21

Black, Dart

414644300

$0.78

22

Windshield Latch

570023800

Unavailable

23

High Windshield

414887200

Unavailable

24

Welded Lower Hinge

517289900

Unavailable

25

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

27

Elastic Stop Nut M4

232541414

$0.48

28

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Washer

517124300

Unavailable

31

Bracket

517262800

Unavailable

32

Clip

414479100

$1.86

33

Bottom Pan (Black)

572076207

Unavailable

34

Pop Rivet 3/16"

390906800

Unavailable

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

37

Hinge Bracket

517296600

Unavailable

38

BOTTOM PAN CAP (BLACK) - Call your local BRP dealership | Formula Deluxe 380 F.

570053702

Unavailable

39

Hex. Screw M6 X 30

207063044

Unavailable

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

41

Flat Washer

224061121

$0.44

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

RH MIRROR - Call your local BRP dealership

414971910

Unavailable

LH MIRROR - Call your local BRP dealership

414972010

$37.66

45

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

46

Front Support

517294500

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Hex. Flange Screw M6 X 16

210261650

$1.22

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

50

Machined Screw M4 x 16

222841665

Unavailable

51

LH Support

517295000

Unavailable

RH Support

517295100

Unavailable

52

Flat Washer

224061201

Unavailable

53

Washer

517124300

Unavailable

54

Seal

415104000

Unavailable

Seal

415036500

Unavailable

55

Hex. Screw M6 X 40

207064044

$1.48

56

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

57

LH Lower Foam

414883500

Unavailable

Lower Foam R.H | Formula S.

414883600

Unavailable

RH Lower Foam

415048700

Unavailable

58

Center Foam

414985100

Unavailable

59

Washer | DS 650 X

391301600

Unavailable
