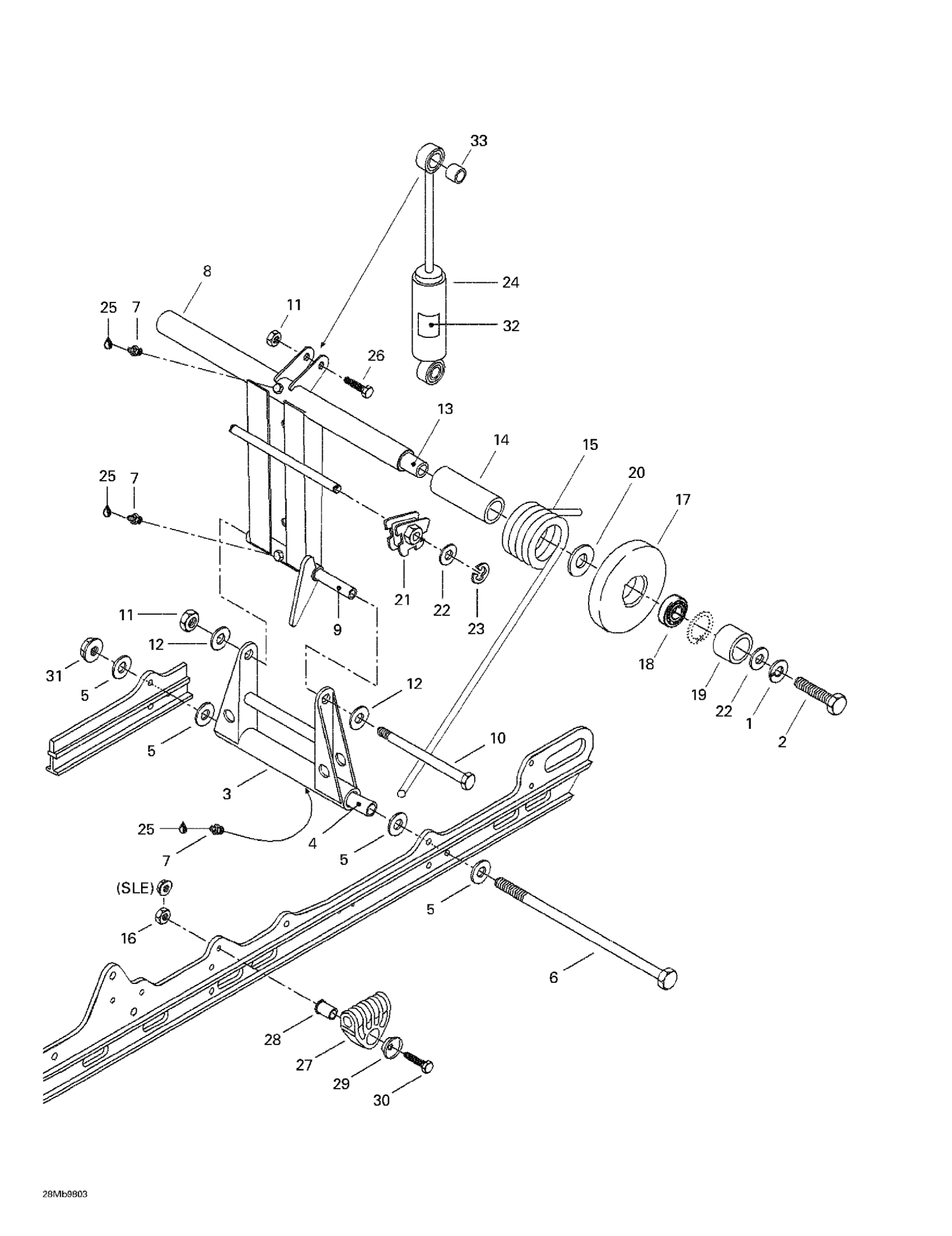

Ski-Doo Touring E, 1998 Rear Arm, Rear Suspension Diagram
#
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Hex. Screw M10 X 35
207103544
Unavailable
4
Lower Axle Pivot
503154703
Unavailable
5
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
6
Bolt M8 X 248mm
503192440
Unavailable
7
Grease Fitting
408200700
Unavailable
8
Welded Rear Arm
503151200
Unavailable
9
Upper Axle, Pivot Arm
503144300
Unavailable
10
Bolt M8, Short
732601197
Unavailable
11
Hex. Elastic Stop Nut M8
232581414
Unavailable
12
Flat Washer 8 mm
234081410
Unavailable
13
Transversal Rear Axle
503151400
Unavailable
14
Bushing
572047800
Unavailable
15
RH Spring (Europe) | Formula Deluxe 500 LC.
414944200
Unavailable
LH SPRING (EUROPE) - Call your local BRP dealership | Formula Deluxe 500 LC.
414944300
Unavailable
16
Elastic Stop Nut M6
232561414
Unavailable
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
17
IDLER WHEEL 155 - Call your local BRP dealership | Includes 15 - 16.
572094300
Unavailable
19
Spacer
503154200
Unavailable
21
LH ADJUST CAM - Call your local BRP dealership
572030800
Unavailable
RH ADJUST CAM - Call your local BRP dealership
572030900
Unavailable
22
Flat Washer 10 mm
234001410
Unavailable
23
e Circlip
371907100
Unavailable
24
Shock
414927700
Unavailable
Shock | Touring SLE.
415091700
Unavailable
25
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
26
Hex. Screw M8 X 40
207084044
Unavailable
27
Spring Support
503189657
Unavailable
28
SPRING AXLE GUIDE - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.
503152700
Unavailable
29
Retainer Washer | Formula 500. Formula 500 Deluxe.
517041700
Unavailable
30
Hex. Screw M6 X 45
207064544
Unavailable
HEX. CAP SCREW M6 X 50 - Call your local BRP dealership
207065044
Unavailable
31
Hex. Flange Elastic Nut M8
233281414
Unavailable
32
Shock Decal
418001500
Unavailable
33
CUSHION - Call your local BRP dealership
414802600
Unavailable
