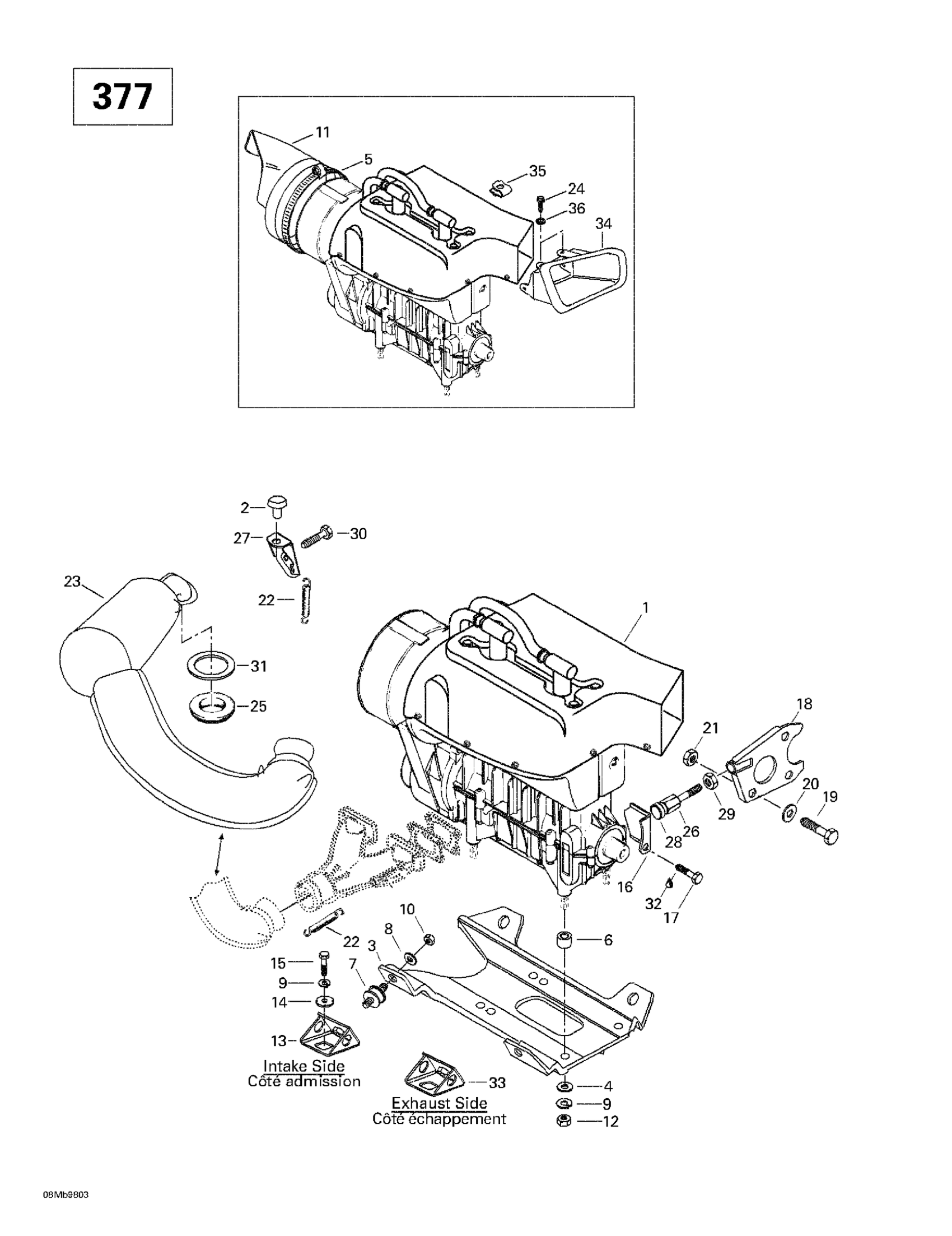

Ski-Doo Touring E, 1998 Engine Support Muffler (377) Diagram
#
Description
Price
1
<<377>> Engine
400308700
Unavailable
3
Engine Support
512054500
Unavailable
4
Flat Washer 10 mm
234001410
Unavailable
5
Gear Clamp Tridon | Formula S.
408803600
Unavailable
6
Spacer | Formula Deluxe 380.
512051900
Unavailable
7
RUBBER MOUNT - Call your local BRP dealership
570127700
Unavailable
8
Flat Washer 10 mm
234001410
Unavailable
9
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
11
Air Deflector | Formula S.
572058400
Unavailable
13
Engine Support
512050900
Unavailable
14
Lock Washer
512056700
Unavailable
15
Hex. Screw M10 X 25
207102544
Unavailable
16
Stopper Plate
512052200
Unavailable
18
Support Plate
517271800
Unavailable
19
Hex. Screw M8 X 25
207182544
Unavailable
20
Flat Washer 8 mm
234081410
Unavailable
21
Hex. Elastic Stop Nut M8
232581414
Unavailable
22
SPRING - Call your local BRP dealership
517182100
Unavailable
23
Muffler | Formula S.
514046000
Unavailable
24
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
25
EXHAUST GROMMET - Call your local BRP dealership
570039000
Unavailable
26
Screw
517244200
Unavailable
27
Muffler Support | Formula S.
514038800
Unavailable
28
Rod retainer
570025100
Unavailable
29
HEX. NUT M12 - Call your local BRP dealership
232120414
Unavailable
30
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
31
Exhaust Grommet | Formula S.
570049400
Unavailable
32
Loctite 271, 10 ml
293800005
Unavailable
33
Support (Exhaust Side)
512057600
Unavailable
34
Outlet Duct
572098000
Unavailable
35
Speed Nut
389812800
Unavailable
36
SERRATED LOCK WASHER M5 - Call your local BRP dealership
732900047
Unavailable
