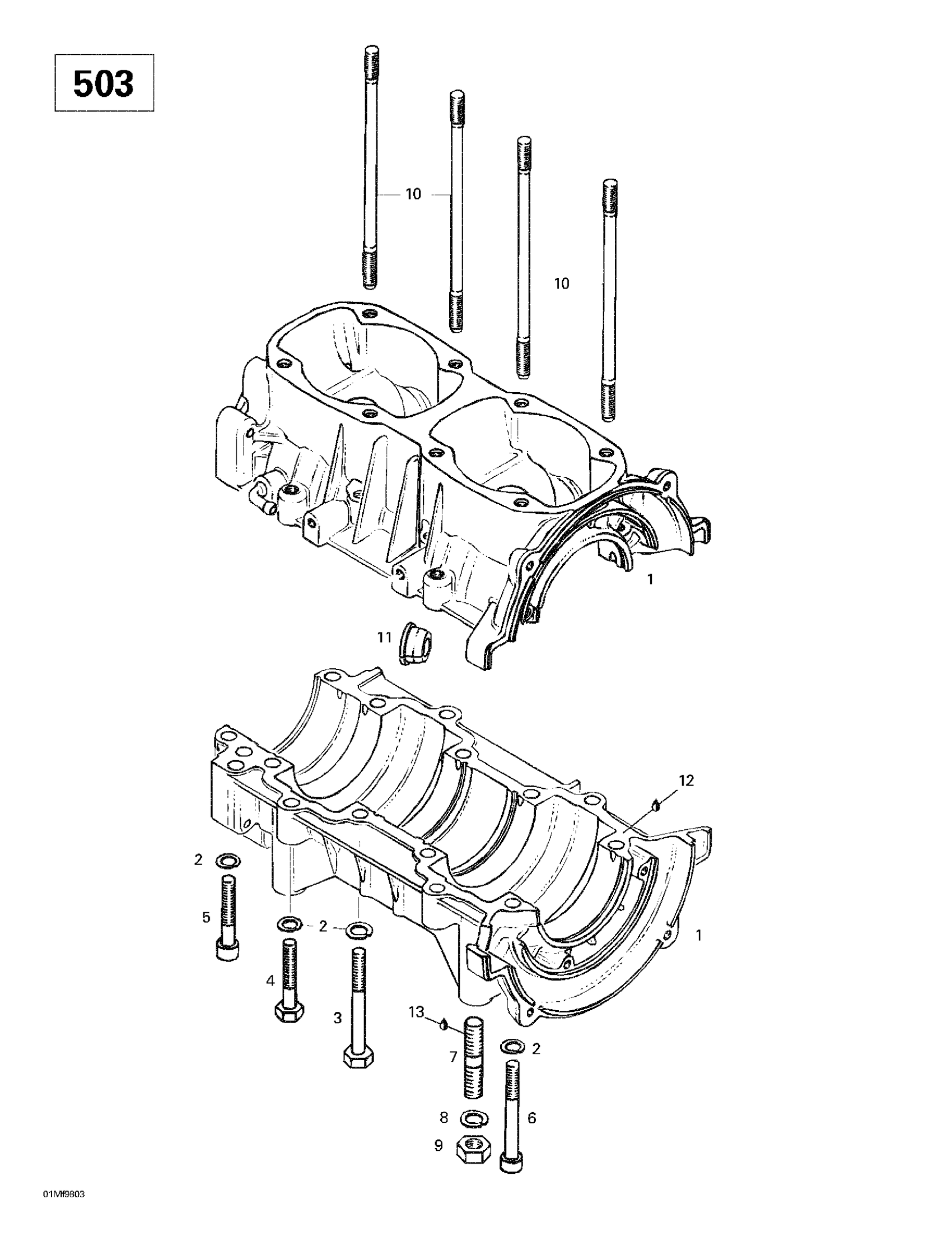

Ski-Doo Touring E, 1998 Crankcase (503) Diagram

#

Description
Price

1

CRANKCASE ASS?Y - Call your local BRP dealership | Includes 1 - 6.

420888493

Unavailable

2

Washer-Lock Din.128

420945832

$1.09

3

Hex. Screw M8 X 70

420841201

Unavailable

4

Hex. Screw M8 X 45

207084544

$1.25

5

ALLEN SCREW M8 X 50 - Call your local BRP dealership

420841566

Unavailable

6

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

420841841

Unavailable

7

Stud M10 X 29/20

420940190

Unavailable

8

Lock Washer | Touring E. Touring E LT (2). Touring LE.

420945753

Unavailable

9

Hex. Nut M10 X 1.5

232006414

$1.11

10

Stud M8 X 173.5

420840556

$15.35

11

Cable Grommet

420860962

$11.52

12

Sealant, 100 gr

413707100

Unavailable

13

Loctite 243, 10 ml

293800060

$20.77
