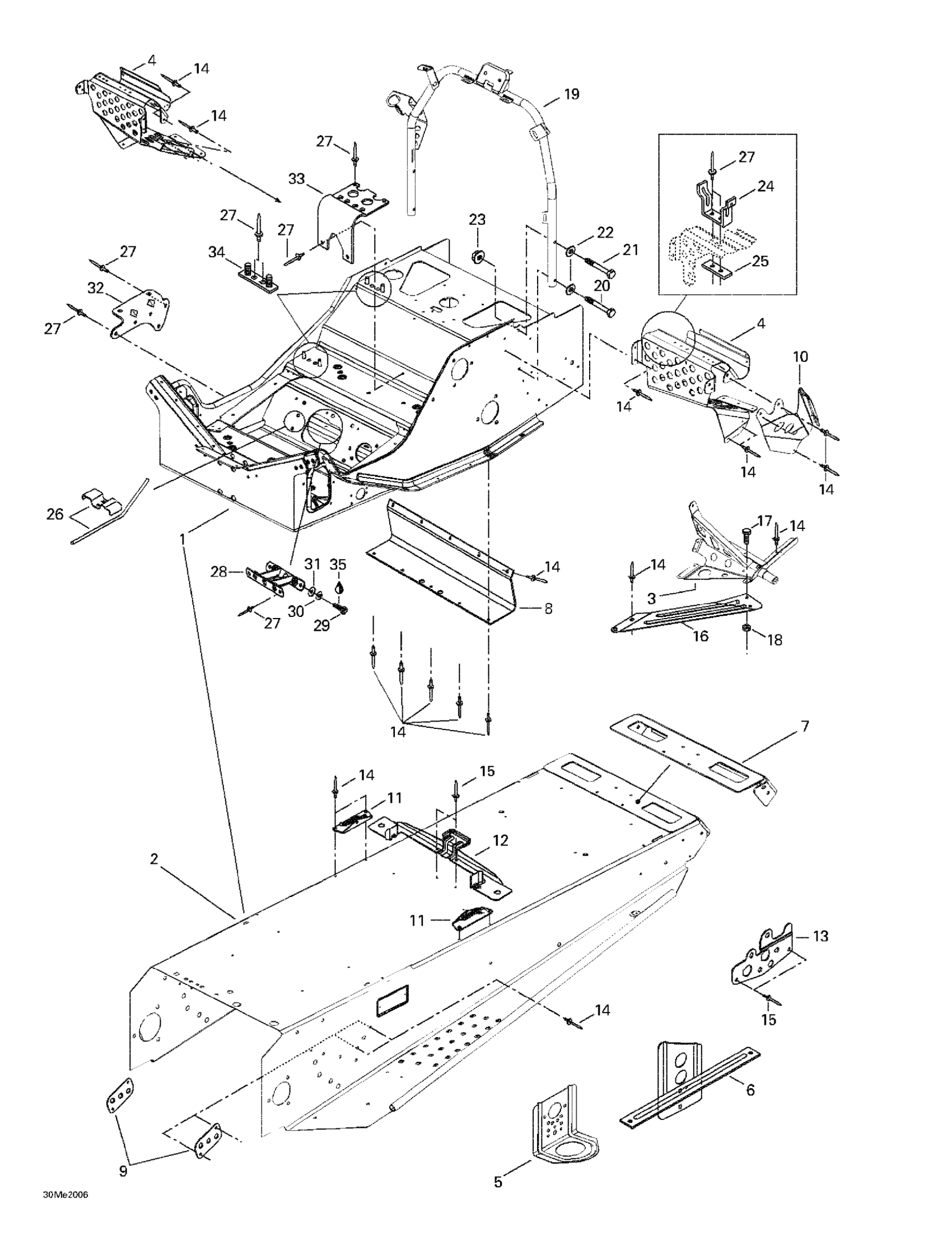

Ski-Doo Touring 500 LC, 2000 Frame And Accessories Diagram
#
Description
Price
1
Frame Ass'y | Includes 1 - 18. (Radiator and Radiator Protector Included)
518322082
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
RH Footrest Support
518320506
Unavailable
4
RH Front Footrest
518318933
Unavailable
LH Front Footrest
518318934
Unavailable
5
Front Bracket
518312495
Unavailable
6
Rear Bracket R.H
518318903
Unavailable
Rear Bracket L.H
518318904
Unavailable
7
Rear Cap
518321302
Unavailable
8
Deflector
518321867
Unavailable
10
Upper Plate R.H
518308715
Unavailable
Upper Plate L.H
518308714
Unavailable
11
RH Tank Bracket
517266900
Unavailable
LH Tank Bracket
517267000
Unavailable
12
Seat Bracket
518317506
Unavailable
13
RH Rear Bracket
518321882
Unavailable
LH Rear Bracket
518321883
Unavailable
15
Pop Rivet 3/16"
390402400
Unavailable
16
RH Reinforcement Plate
518321958
Unavailable
LH Reinforcement. Plate
518321959
Unavailable
17
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
18
Hex. Flange Elastic Nut M5
233251414
Unavailable
19
Handle Steering Support
518321428
Unavailable
22
Flat Washer 6 mm
234061410
Unavailable
23
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
26
Guide Rope
518313700
Unavailable
28
Reinf. Plate
518304741
Unavailable
30
Lock Washer 8 mm
234181401
Unavailable
31
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
32
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
33
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
34
Support Plate
518315300
Unavailable
35
Loctite 271, 10 ml
293800005
Unavailable
