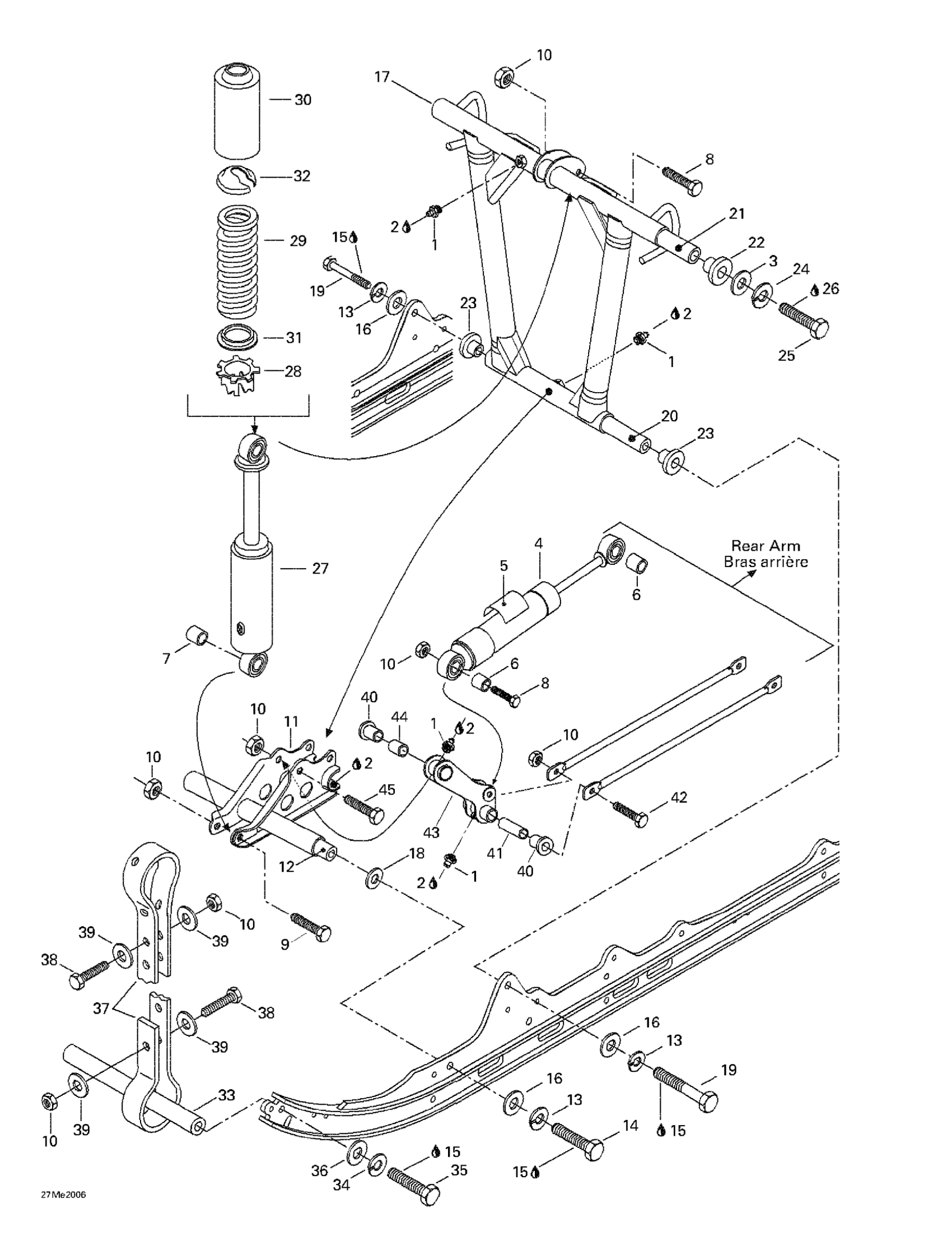

Ski-Doo Touring 500 LC, 2000 Front Arm Diagram
#
1
Grease Fitting
408200700
Unavailable
2
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
3
Flat Washer 10 mm
234001410
Unavailable
4
Rear Shock
415095000
Unavailable
Rear Shock (Europe)
503189496
Unavailable
5
HPG Decal (Europe)
516000182
Unavailable
6
Bushing
414936000
Unavailable
7
Cushion
414917900
Unavailable
8
Hex. Screw M8 X 40
207084044
Unavailable
10
Hex. Elastic Stop Nut M8
232581414
Unavailable
11
Welded Shock Support
503188976
Unavailable
12
Lower Axle
503174900
Unavailable
13
Lock Washer 12 mm
234120602
Unavailable
14
Hex. Screw M12 x 40
207124044
Unavailable
15
Loctite 271, 10 ml
293800005
Unavailable
17
Welded Front Arm
503171100
Unavailable
18
Hardened Washer
503175400
Unavailable
19
HEX. SCREW M12 X 60 - Call your local BRP dealership
207026044
Unavailable
20
SHAFT - Call your local BRP dealership
503189313
Unavailable
21
SHAFT - Call your local BRP dealership
503190387
Unavailable
23
CUSHION - Call your local BRP dealership
503189323
Unavailable
24
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
25
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
27
Center Shock
415094600
Unavailable
Center Shock
503189196
Unavailable
28
Cam
503169000
Unavailable
29
Shock Spring
415070600
Unavailable
Spring
415057600
Unavailable
30
Protector
503193663
Unavailable
31
Spring Guide
572092600
Unavailable
34
Lock Washer 8 mm
234181401
Unavailable
35
Hex. Screw M8 X 30
207183044
Unavailable
36
Flat Washer 8 mm
234081410
Unavailable
37
STOPPER STRAP - Call your local BRP dealership
503190782
Unavailable
38
Hex. Screw M8 X 25
207182544
Unavailable
39
WASHER - Call your local BRP dealership
517078700
Unavailable
40
Plastic Cushion
415052300
Unavailable
41
Tie Rod Shaft
503171600
Unavailable
43
Lever
503171400
Unavailable
44
Pivot Axle
503171700
Unavailable
45
Hex. Screw M8 X 50
207085044
Unavailable
