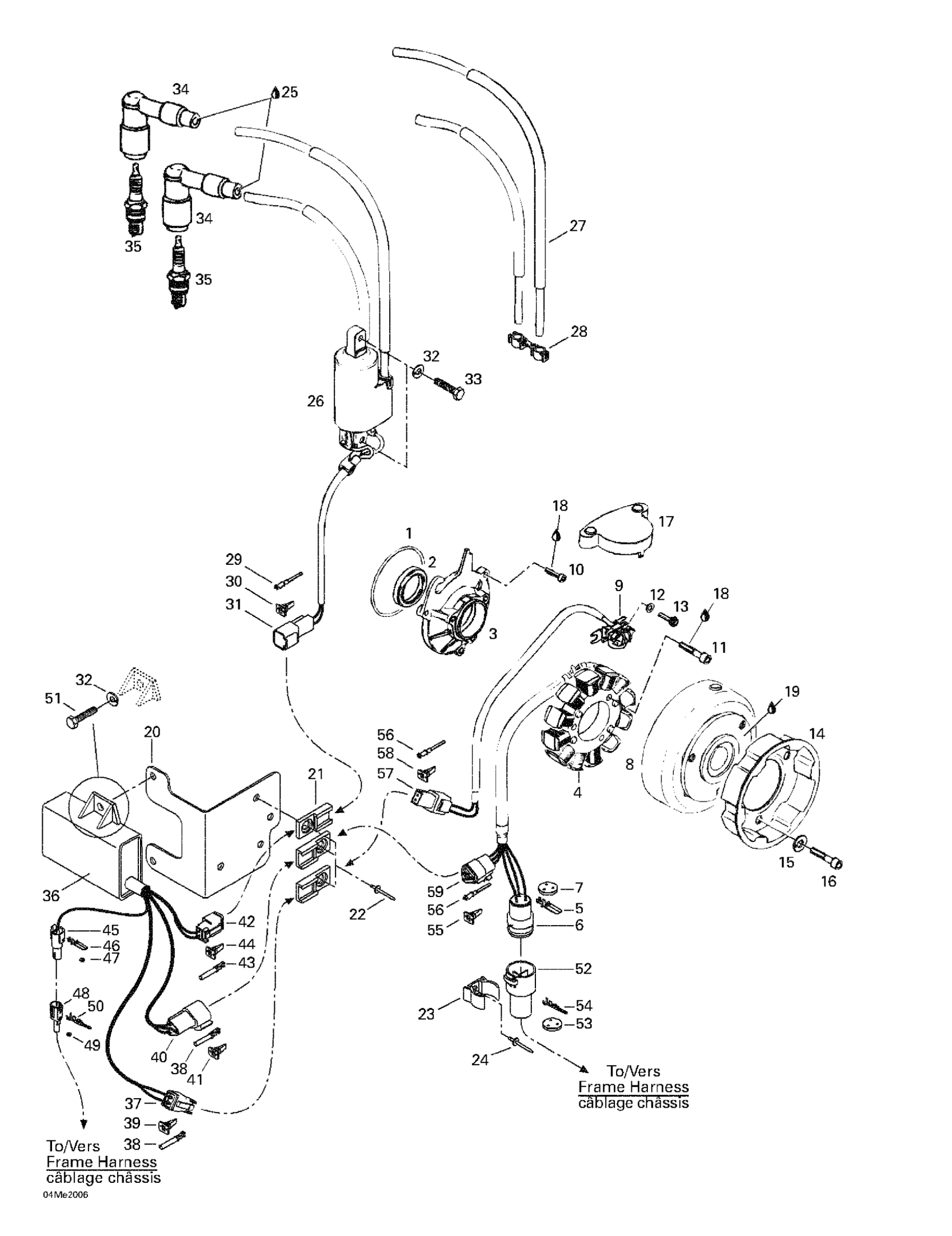

Ski-Doo Touring 500 LC, 2000 Magneto (12V, 220W) Diagram

#

Description
Price

1

O-RING - Call your local BRP dealership

420850430

Unavailable

2

SEAL-OIL - Call your local BRP dealership

420930695

Unavailable

3

Armature Plate

420810265

Unavailable

4

Stator Plate Ass'y | Includes 4 - 7.

410922905

Unavailable

5

FEMALE TERMINAL - Call your local BRP dealership

409011900

$3.82

6

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

$10.74

7

SEAL - Call your local BRP dealership

409208500

Unavailable

8

Magneto Flywheel

410922906

Unavailable

9

Pick Up Ass'y

420965642

Unavailable

10

SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership

420941540

Unavailable

11

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

12

WASHER - Call your local BRP dealership

420827800

Unavailable

13

Allen Screw M5 x 16

420840514

Unavailable

14

Starting Pulley

420852590

$28.43

15

Washer-Lock Din.128

420945832

Unavailable

16

Socket Head Screw M8 X 12

420841520

$1.68

17

Pick-Up Cover

420810700

Unavailable

18

Loctite 243, 10 ml

293800060

$20.77

19

Sealant Loctite 648

219703000

Unavailable

20

Cable Support

515175107

Unavailable

21

Clip

270000141

$8.33

22

Pop-Rivets 3/16”

390906400

Unavailable

23

Clip

415089700

Unavailable

24

RIVET_POP 1/8 - Call your local BRP dealership

390402500

Unavailable

25

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

26

IGNITION COIL - Call your local BRP dealership | Includes 14 - 19.

415085400

Unavailable

27

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

28

Plastic Clip, Spark Plug Wire

410914600

Unavailable

29

Male Terminal

278000631

$4.12

30

Male Lock, 2 Circuits

409207500

$3.02

31

Male Housing, 2 Circuits

409206900

Unavailable

32

Lock Washer M6, Black

234161471

$0.52

33

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

34

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

35

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

36

Ignition Module | Includes 36 - 47.

512058927

Unavailable

37

Male Housing, 2 Circuits

409206900

Unavailable

38

Male Terminal

278000631

$4.12

39

Male Lock, 2 Circuits

409207500

$3.02

40

Male Housing

278002378

Unavailable

41

Male Lock, 3 Circuits

409207600

$3.02

42

Female Connector, 2 Circuits

409207300

$9.60

43

Female Terminal

278000632

Unavailable

44

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Female Terminal

409012100

Unavailable

47

Seal

409012300

Unavailable

48

Male Connector Housing (1 Circuit)

409208800

Unavailable

49

Seal

409012300

Unavailable

50

Male Terminal

409011300

$5.78

51

Hex. Screw M6 X 16

207161644

Unavailable

52

MALE HOUSING - Call your local BRP dealership

409207900

$7.66

53

SEAL - Call your local BRP dealership

409208500

Unavailable

54

MALE TERMINAL - Call your local BRP dealership

409011100

$3.82

55

Female Lock

409207200

$3.48

56

Female Terminal

278000632

Unavailable

57

Female Connector, 2 Circuits

409207300

$9.60

58

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

59

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable
