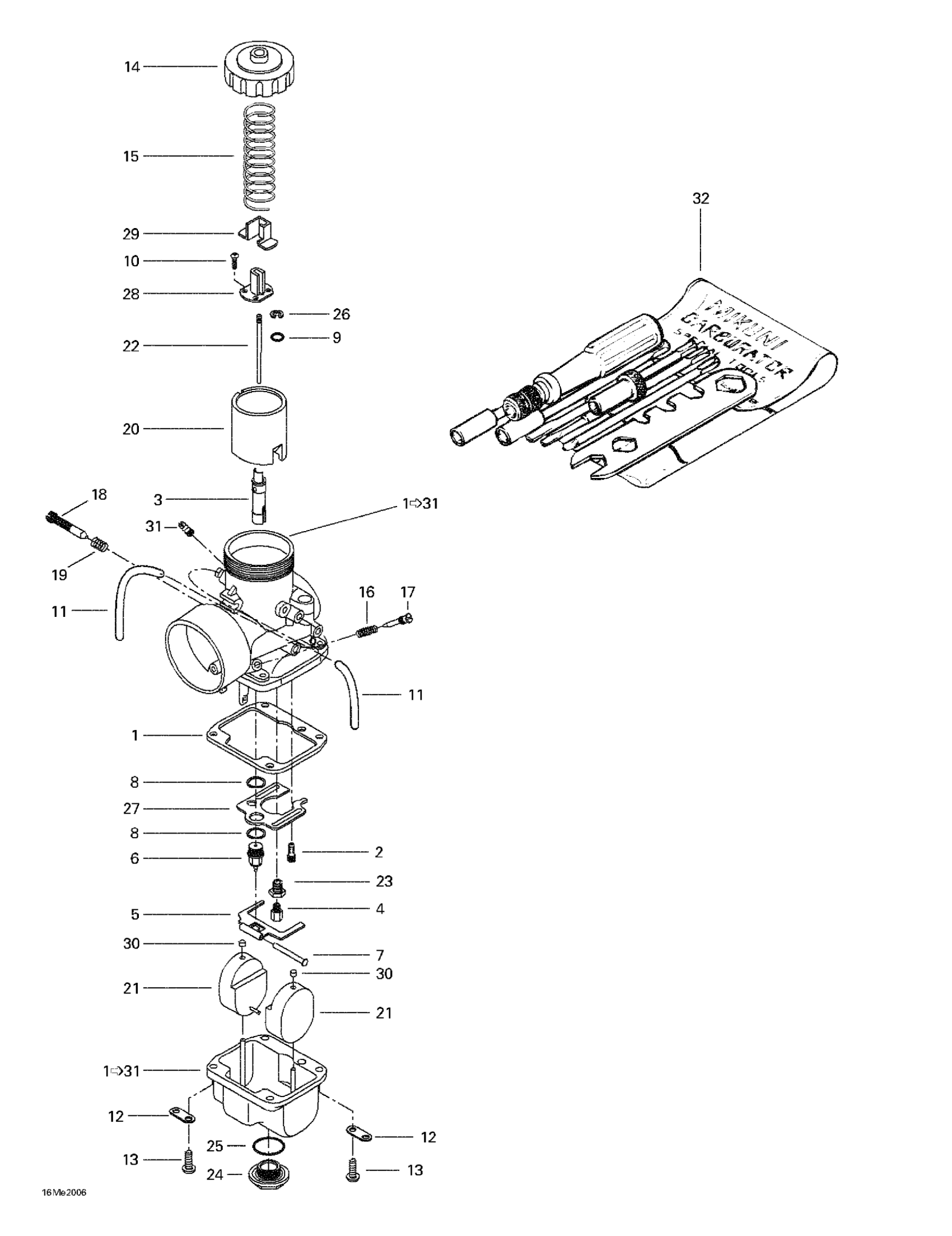

Ski-Doo Touring 500 LC, 2000 Carburetors Diagram

#

Description
Price

1

Carburetor VM 38-431 (PTO)

403138608

Unavailable

Carburetor VM 38-432 (MAG)

403138609

Unavailable

1

GASKET - Call your local BRP dealership

404104700

Unavailable

2

PILOT JET 50 - Call your local BRP dealership

404109500

$4.55

3

Needle Jet NJ-480-Q3

404160900

Unavailable

4

Main Jet 300

404162115

$8.14

Main Jet MJ 280

404100500

$8.14

5

FLOAT LEVER - Call your local BRP dealership

404105000

$21.49

6

Needle Valve 1.5

404147400

$43.99

7

Lever Pin

404103300

$6.39

8

Seat Washer

404101600

$3.31

9

Packing

404117000

$3.39

10

Screw With Washer

404121300

$4.29

11

Air Vent Tube

404161802

Unavailable

12

PLATE - Call your local BRP dealership

404103000

$8.51

13

Screw With Lock Washer

404102000

$3.29

14

COVER - Call your local BRP dealership

404105100

Unavailable

15

Spring

404154800

$24.99

16

SPRING - Call your local BRP dealership

404139800

Unavailable

17

AIR SCREW - Call your local BRP dealership

404149000

$25.35

18

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

19

Spring

404101700

$4.29

20

Piston Valve CA 2.5

404131300

Unavailable

21

FLOAT - Call your local BRP dealership

404105400

Unavailable

22

Jet Needle J8 6DGY09

404161820

Unavailable

23

Guide Screw

404105500

$32.99

24

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

25

O-RING - Call your local BRP dealership

404101500

$3.99

26

E-Ring

404152400

$6.55

27

Not Available As Spare Part - Friction Washer

Unavailable

28

CONNECTOR - Call your local BRP dealership

404160800

$14.12

29

Cover

404122100

$18.43

30

Cap

404105800

$6.49

31

Nipple

404153400

$11.51

32

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
