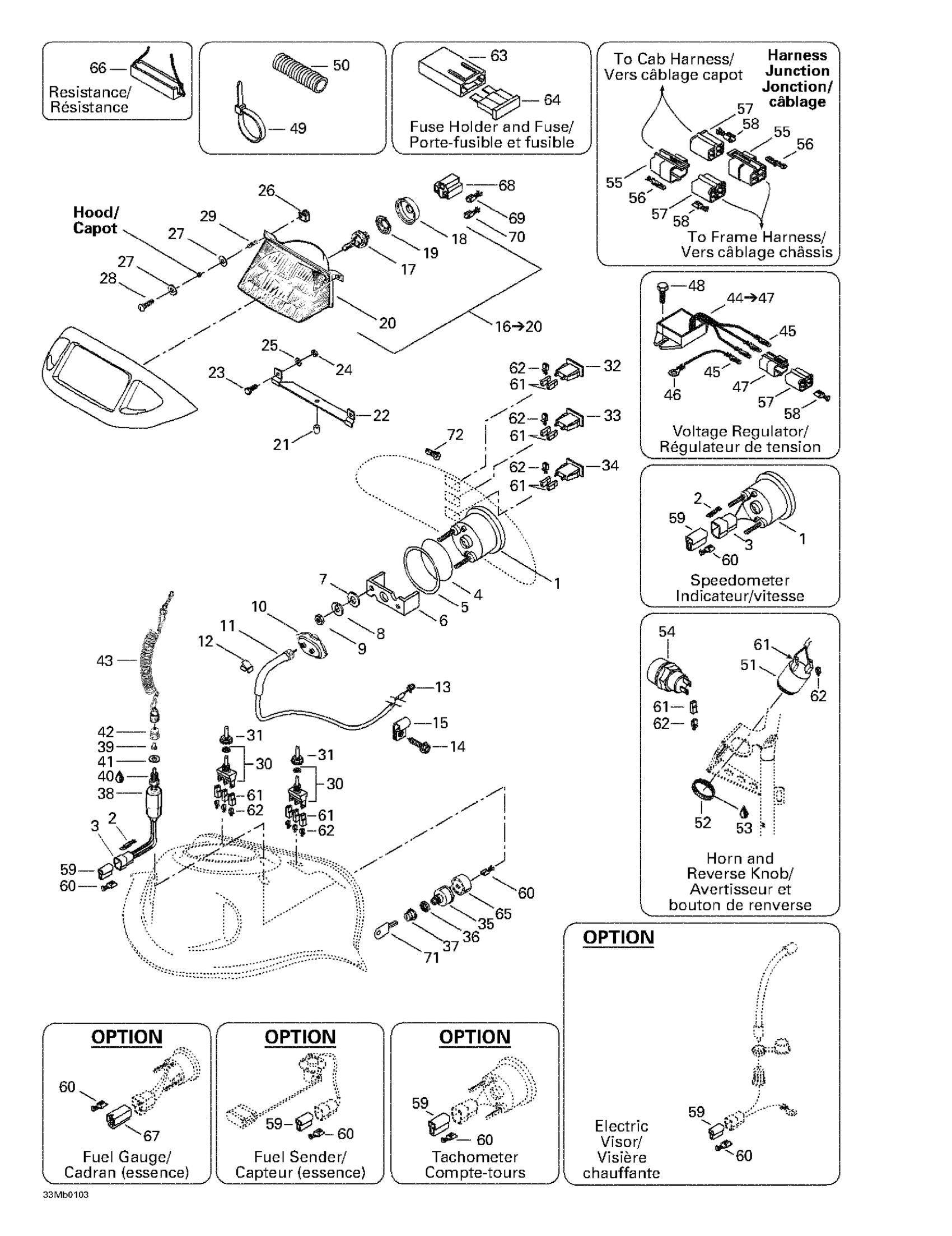

Ski-Doo Touring 380 F/500F, 2001 Electrical System Diagram
#
1
Speedometer, Kmh
515175335
Unavailable
Speedometer, Mph
515175336
Unavailable
2
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
3
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
4
O-Ring
414807100
Unavailable
5
Washer
517258500
Unavailable
6
Case Holder
414806500
Unavailable
7
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
8
Lock Washer
414806700
Unavailable
9
Nut
414806900
Unavailable
10
Drive Angle
515175400
Unavailable
11
Speedometer Cable
414761400
Unavailable
13
SPEEDO DRIVE INSERT - Call your local BRP dealership
572010100
Unavailable
14
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
16
Headlamp | Includes 42 to 45
410609100
Unavailable
17
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
18
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
20
Headlamp | Includes 53 to 56
410609300
Unavailable
22
Headlamp Support
517218500
Unavailable
23
Hex. Screw M5 X 12
207151244
Unavailable
24
Elastic Stop Nut M5
232551414
Unavailable
25
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
26
Projector Nut
572078600
Unavailable
27
Flat Washer M5
234051410
Unavailable
28
PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership
243244040
Unavailable
29
Spring
517168600
Unavailable
32
PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership
515175728
Unavailable
33
PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America
515175726
Unavailable
35
IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.
410111300
Unavailable
37
Switch Boot
570013700
Unavailable
40
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
41
Not Available As Spare Part - Friction Washer
Unavailable
44
VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).
515175546
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
46
OPEN BARREL - Call your local BRP dealership
409003200
Unavailable
47
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
50
Fuse Holder
409004000
Unavailable
Tubing 10 MM 1000MM Long
219704407
Unavailable
Was 409901700 Tubing (9 mm)
219704399
Unavailable
TUBING 6 MM - Call your local BRP dealership
515175442
Unavailable
Was 409901800 Tubing (13 mm)
219704400
Unavailable
51
HORN - Call your local BRP dealership
515176035
Unavailable
53
Silicone Sealant 51388, 300 ml
296000309
Unavailable
54
Push Button
415130372
Unavailable
55
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
56
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
57
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
58
Female Terminal PACKARD
561503200
Unavailable
59
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
Unavailable
60
Female Terminal
561503100
Unavailable
63
Fuse Holder
409004000
Unavailable
65
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
66
Resistance
515175241
Unavailable
67
Female Housing
409204300
Unavailable
68
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
69
FEMALE TERMINAL - Call your local BRP dealership
515175320
Unavailable
71
Blank Key
415129350
Unavailable
72
INSTRUMENTATION BULB - Call your local BRP dealership
410504200
Unavailable
