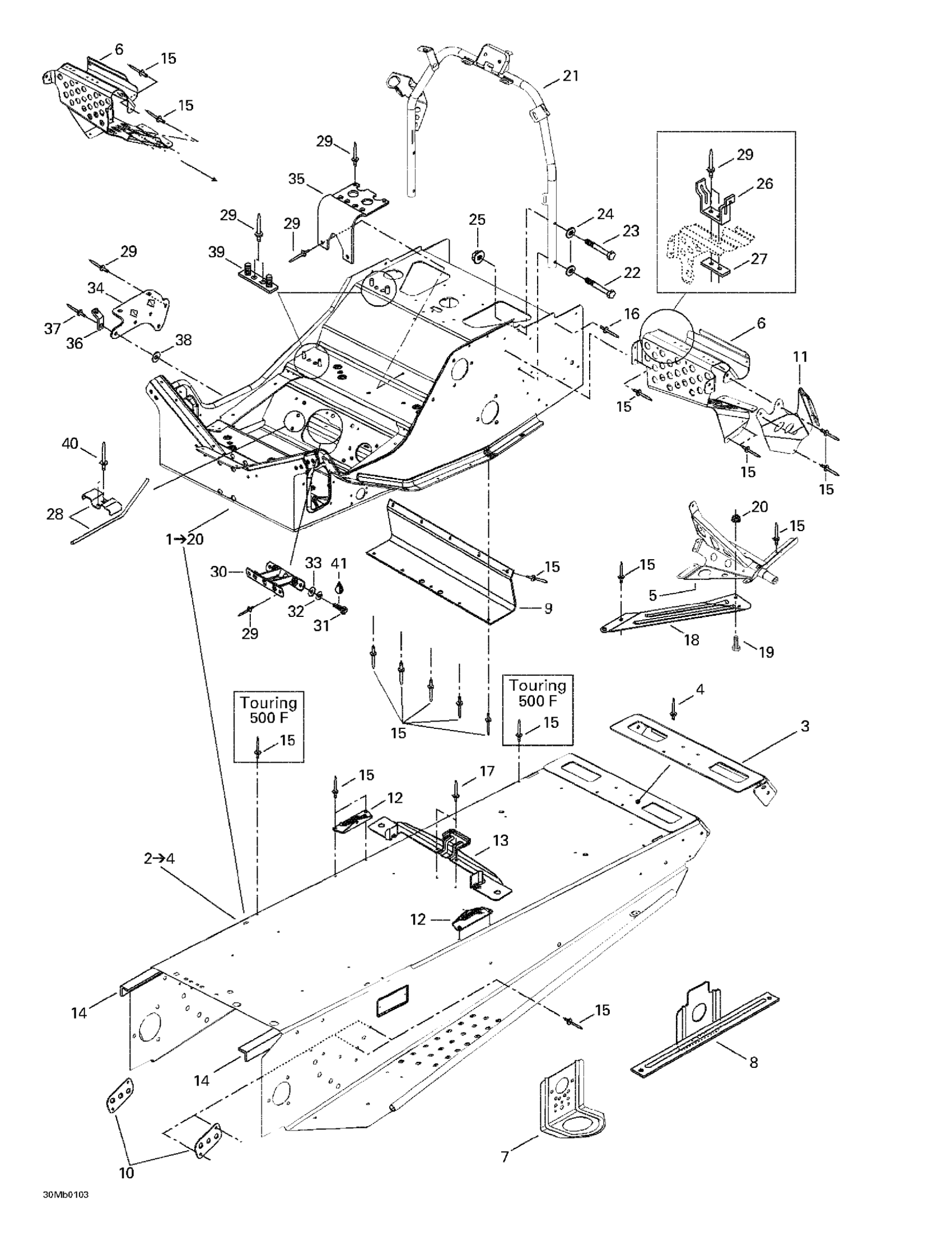

Ski-Doo Touring 380 F/500F, 2001 Frame And Accessories Diagram
#
1
Frame Ass'y | Includes 1 - 20.
518322498
Unavailable
2
Forming Frame | Includes 2 - 4.
518322540
Unavailable
3
Rear Cap
548872033
Unavailable
5
RH Footrest Support
518320506
Unavailable
6
RH Front Footrest
518318933
Unavailable
LH Front Footrest
518318934
Unavailable
7
Front Bracket
518321495
Unavailable
8
RH Rear Bracket | Touring 380 F.
518316716
Unavailable
RH Rear Bracket | Touring 500 F.
518321496
Unavailable
LH Rear Bracket | Touring 380 F.
518316715
Unavailable
LH Rear Bracket | Touring 500 F.
518321497
Unavailable
9
Deflector
518321867
Unavailable
11
Upper Plate R.H
518308715
Unavailable
Upper Plate L.H
518308714
Unavailable
12
RH Tank Bracket
517266900
Unavailable
LH Tank Bracket
517267000
Unavailable
13
Seat Bracket
518317506
Unavailable
14
LH Frame Reinforcement
518316768
Unavailable
RH Frame Reinforcement
518316769
Unavailable
16
Pop Rivet 3/16"
390402300
Unavailable
17
Pop Rivet 3/16"
390402400
Unavailable
18
RH Reinforcement Plate
518321958
Unavailable
LH Reinforcement. Plate
518321959
Unavailable
19
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
20
Hex. Flange Elastic Nut M5
233251414
Unavailable
21
Handle Steering Support
518321428
Unavailable
24
Flat Washer 6 mm
234061410
Unavailable
25
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
28
Guide Rope
517276100
Unavailable
30
Reinf. Plate
518304741
Unavailable
32
Lock Washer 8 mm
234181401
Unavailable
33
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
34
Muffler Support
518316704
Unavailable
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
35
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
37
Pop Rivet 3/16"
390402300
Unavailable
39
Support Plate
518315300
Unavailable
40
Avex Rivet
390909200
Unavailable
41
Loctite 271, 10 ml
293800005
Unavailable
