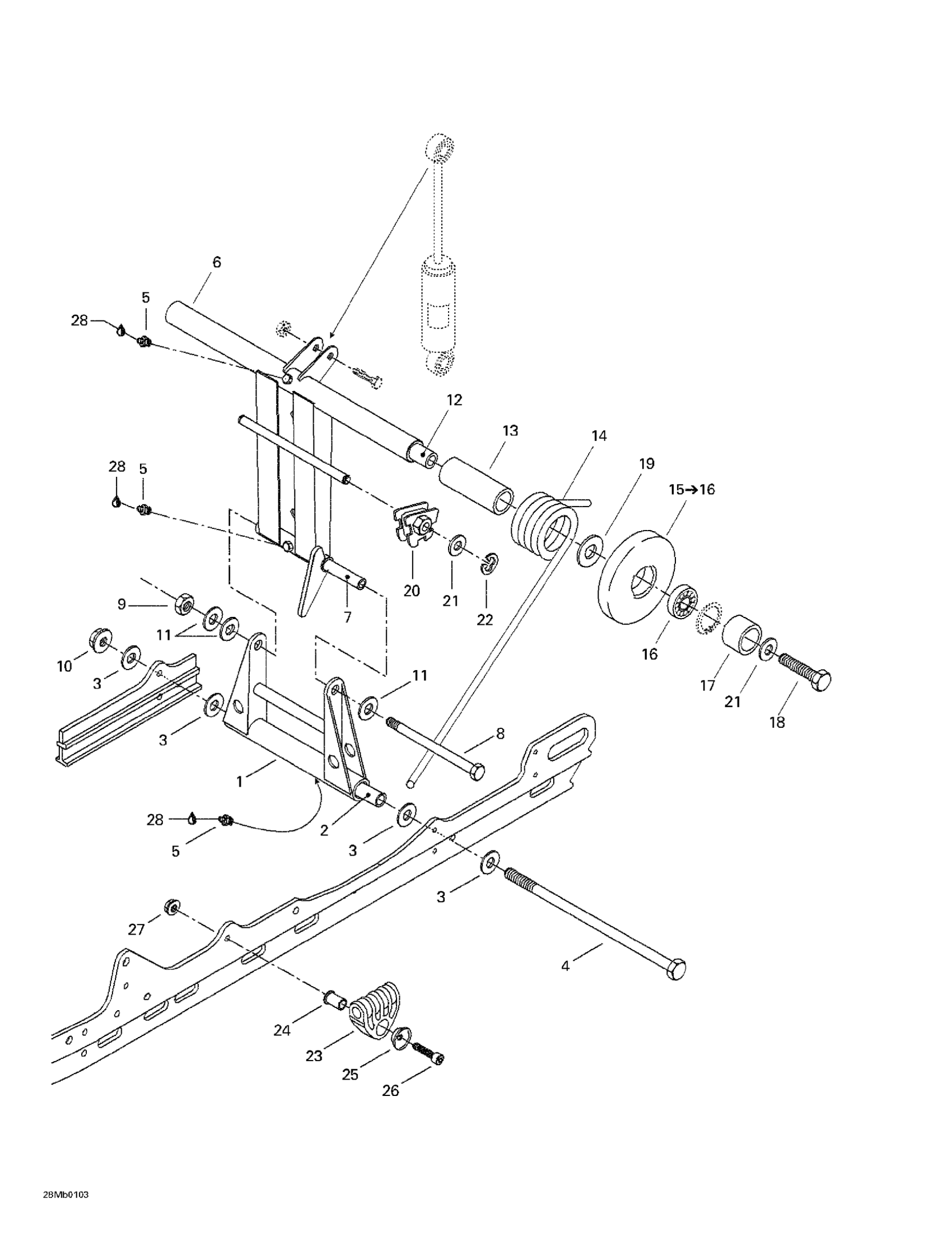

Ski-Doo Touring 380 F/500F, 2001 Rear Arm Diagram

#

Description
Price

1

Pivot Welded Arm

503169200

Unavailable

2

Lower Axle Pivot

503154703

Unavailable

3

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

4

Bolt M8 X 248mm

503192440

$29.97

5

Grease Fitting

408200700

$2.80

6

Welded Rear Arm

503151200

Unavailable

7

Upper Axle, Pivot Arm

503144300

$11.98

8

Bolt M8, Short

732601197

$15.06

9

Hex. Elastic Stop Nut M8

232581414

$0.47

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Flat Washer 8 mm

234081410

$0.69

12

Transversal Rear Axle

503151400

Unavailable

13

Bushing

572047800

Unavailable

14

RH Spring

503189338

Unavailable

LH SPRING - Call your local BRP dealership

503189339

Unavailable

15

IDLER WHEEL 155 - Call your local BRP dealership | Includes 15 - 16.

572094300

Unavailable

16

Ball Bearing

405404600

$24.58

17

Spacer

503154200

Unavailable

18

Hex. Screw M10 x 35 (Scotch Grip)

207303544

$1.65

19

Washer

503144900

$2.58

20

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

21

Washer

732900049

$0.57

22

e Circlip

371907100

Unavailable

23

Spring Support

503189657

$10.20

24

Spring Guide Axle

503188934

Unavailable

25

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

26

Socket Head Screw M8 X 45

205084544

$0.74

27

Hex. Flange Elastic Nut M8

233281414

$1.14

28

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
