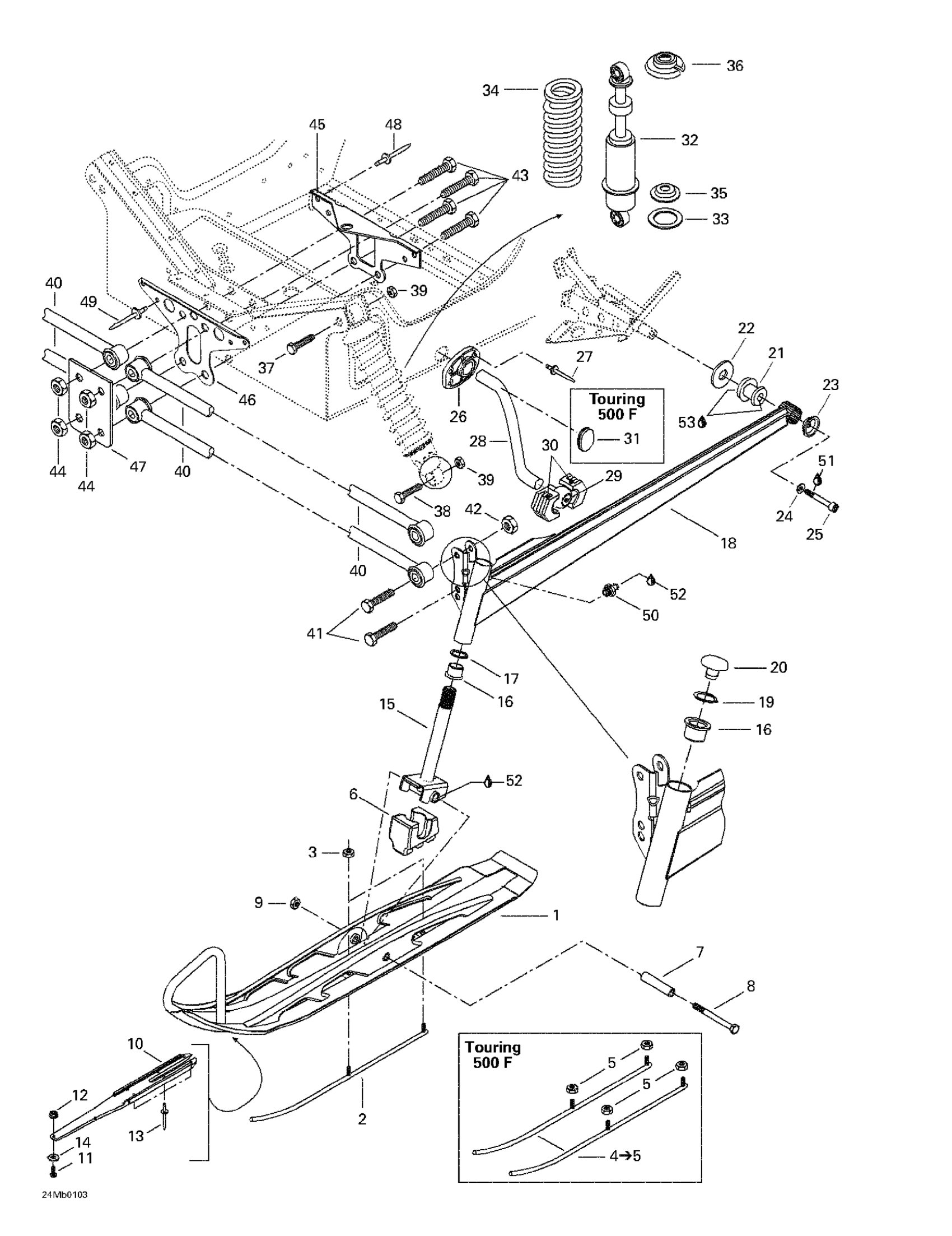

Ski-Doo Touring 380 F/500F, 2001 Front Suspension And Ski Diagram

#

Description
Price

1

Ski

505070370

Unavailable

2

Ski Weld Runner (C/U) | 380 F.

505070428

Unavailable

3

Hex. Elastic Stop Nut M8

232581414

Unavailable

4

Carbide Weld Runner | 500 F.

860502200

Unavailable

5

Hex. Elastic Stop Nut M8

232581414

Unavailable

6

Ski Stopper

505070324

Unavailable

7

Spacer

505070323

Unavailable

8

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

9

Elastic Locking Nut M10 X 1.5

233601416

$1.68

10

Proactive Control

505070087

Unavailable

11

Socket Screw M5 X 16

205451646

Unavailable

12

Hex. Flange Elastic Nut M5

233251414

Unavailable

13

Pop Rivet 3/16"

390402200

$0.26

14

Flat Washer 6 mm

234061410

Unavailable

15

Ski Leg

505070321

Unavailable

16

Cushion

505070003

Unavailable

17

WASHER - Call your local BRP dealership

505070004

Unavailable

18

RH Swing Arm

505070633

Unavailable

LH Swing Arm

505070634

Unavailable

19

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

20

Cap

572091300

$8.97

21

DAMPER - Call your local BRP dealership

570062200

Unavailable

22

WASHER - Call your local BRP dealership

503146700

$4.42

23

Cup | Package Hunter

705007171

Unavailable

24

Lock Washer 8 mm

234181401

Unavailable

25

Socket Head Screw M8 X 25

205082544

Unavailable

26

BUSHING - Call your local BRP dealership

505070139

Unavailable

27

Pop Rivet 3/16"

390402300

Unavailable

28

Stabilisator | Touring 500 F.

505070069

Unavailable

29

Ball Joint | Touring 500 F.

505070068

Unavailable

30

Block Sliding

572069800

Unavailable

31

Black, Nylon Cap

414916600

$4.32

32

Shock

505070016

Unavailable

Shock | Touring 500 F.

505070395

Unavailable

33

WASHER - Call your local BRP dealership

503184400

$2.75

WASHER - Call your local BRP dealership

505070401

Unavailable

34

Spring (Full Moon) | Formula Deluxe 380 F.

505070685

Unavailable

35

GUIDE_SPRING - Call your local BRP dealership

503165100

$1.91

Spring Guide

503187500

Unavailable

36

Spring Stopper

706200881

$10.30

37

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

38

Hex. Screw M10 X 55

207005544

$1.85

39

Elastic Locking Nut M10 X 1.5

233601416

$1.68

40

Arm Ass'y (42")

580649700

Unavailable

41

Hex. Screw M12 x 50

207025044

Unavailable

42

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

43

Hex. Screw M12 x 100

230020044

Unavailable

44

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

45

Rear Link Plate

517254900

Unavailable

46

Front Link Plate

517254800

Unavailable

47

Support

518306700

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Rivet pop 1/4"

390404900

Unavailable

50

Grease Fitting

408200700

Unavailable

51

Loctite 243, 10 ml

293800060

$20.77

52

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

53

Grease, Super Lube

293550030

Unavailable
