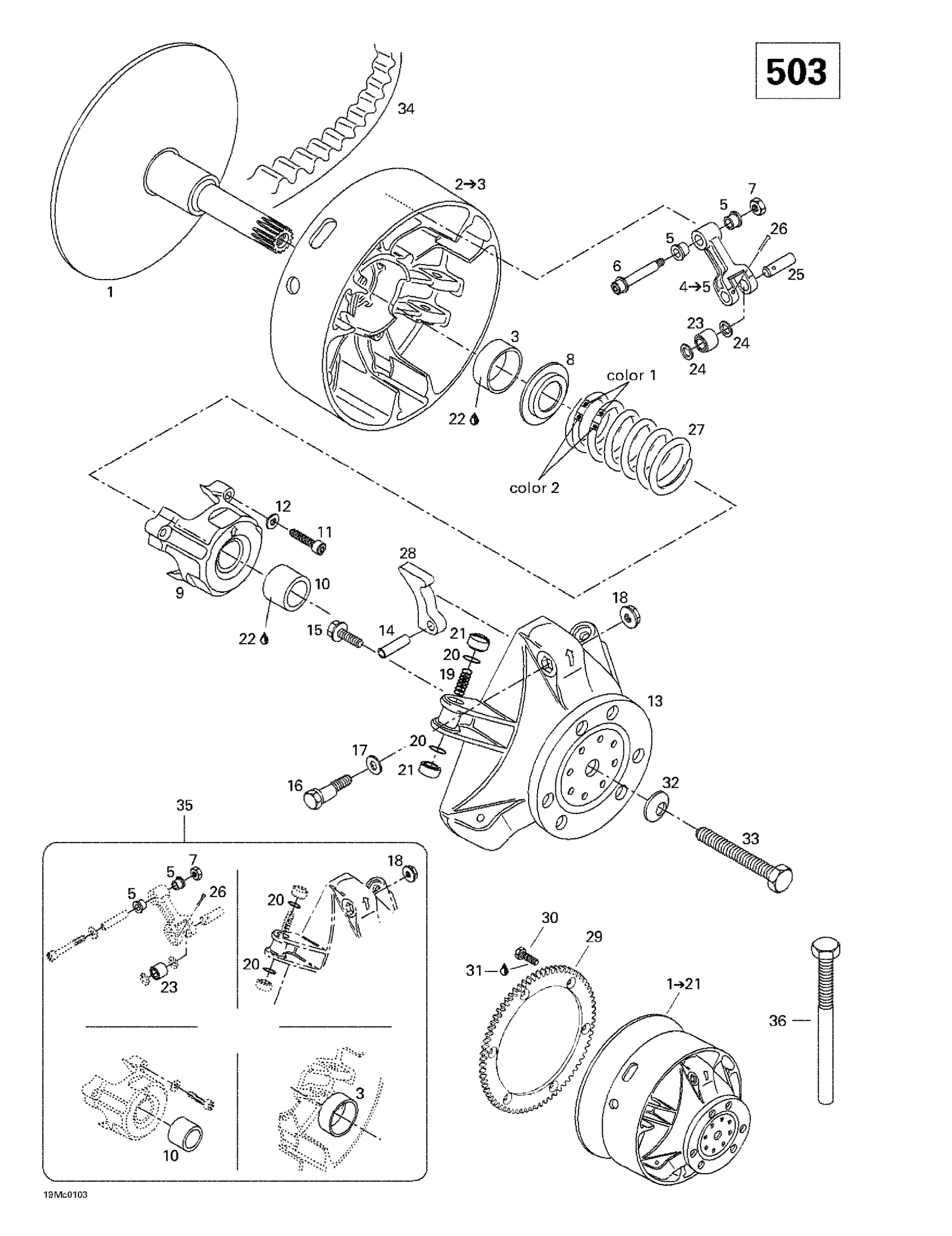

Ski-Doo Touring 380 F/500F, 2001 Drive Pulley (503) Diagram

Drive Pulley Ass'y | Includes 1 - 21.

417222368

Unavailable

Fixe Flange | Skandic 500F. Skandic 500F (SWT).

417222250

Unavailable

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

Bushing

417004201

$23.82

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

Bushing

417004305

$4.62

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

Elastic Stop Nut M6

232561414

$1.55

Spring Seat

417222044

Unavailable

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

Bushing

417004501

Unavailable

Socket Screw M6 X 40

205064086

Unavailable

WASHER - Call your local BRP dealership

420245370

Unavailable

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

Pin M8 X 24

732804009

Unavailable

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

Washer

417005600

$3.86

Hex. Flange Nut M6

233061414

$1.34

Spring

417005700

$4.65

O-Ring

732401030

$0.95

Slider Shoe This part replaces 420460045.

417223021

$6.09

Loctite 609, 10 ml

413703100

$24.58

Roller

417222947

$19.97

Stopper Washer

417004302

$15.99

Pin

417004309

$24.58

Cotter Pin

250400060

$1.60

Clutch Spring

414689800

$43.05

Ramp 292X | Grand Touring 500.

417005292X

Unavailable

Ring Gear 86Th

417009400

Unavailable

Hex. Screw M8 X 16

236281684

$4.00

Loctite 271, 10 ml

293800005

$20.77

Conical Spring Washer | MX Z 500 F. Legend 500 F.

205200005

Unavailable

BOLT - Call your local BRP dealership

417113800

Unavailable

Drive Belt

415060600

$154.58

Clutch Repair Kit

417006100

$175.35

Puller Inner Half

529007900

$58.99
