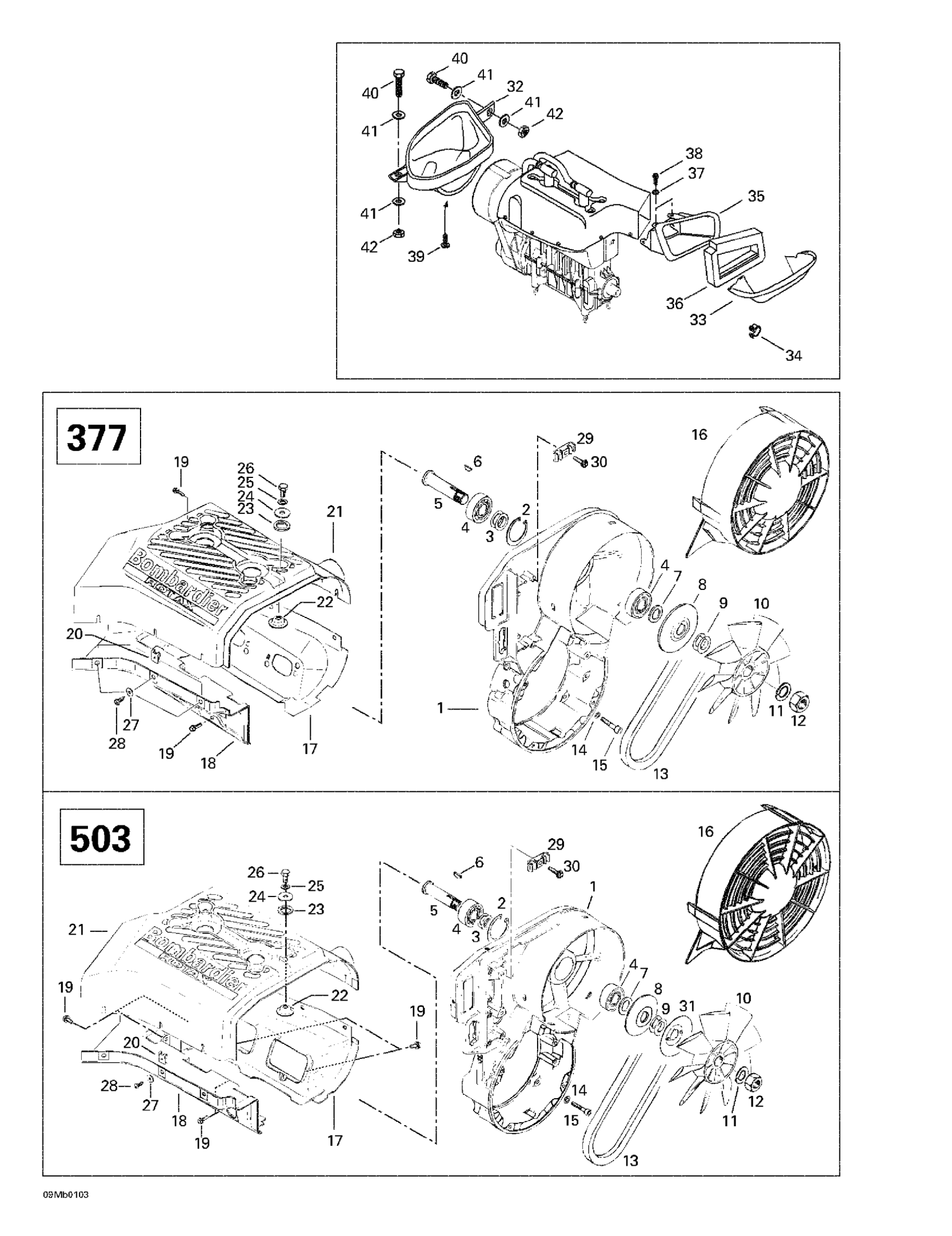

Ski-Doo Touring 380 F/500F, 2001 Cooling System And Fan Diagram

#

Description
Price

1

Fan Housing

420811262

Unavailable

Fan Housing This part replaces 420912203.

420912230

Unavailable

2

Lock Ring

420945880

Unavailable

3

Shim

420244585

Unavailable

4

Ball Bearing

420832161

Unavailable

5

Fan Axle This part replaces 420937940.

420937941

Unavailable

6

Woodruff Key

420246015

Unavailable

7

Spacer Bushing

420827650

Unavailable

8

Flange

420980496

Unavailable

9

Shim 0.5 mm

420827080

Unavailable

Shim 0.2 mm

420827082

Unavailable

10

Fan

420866295

Unavailable

FAN - Call your local BRP dealership

420866292

Unavailable

11

Lock Washer

420945756

Unavailable

12

Nut M16 This part replaces 420942285.

420942289

Unavailable

13

V-Belt | 380 F.

414630700

$23.82

V-Belt

414630800

$37.66

14

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

15

Socket Head Screw M6 X 30

205063044

Unavailable

16

Fan Cover

420975740

Unavailable

FAN COVER - Call your local BRP dealership

420975695

$26.89

17

Cylinder Cowl (Exhaust Side)

420810554

Unavailable

Lower Cowling | 550 F.

420811392

Unavailable

18

Cylinder Cowl (Carburator Side)

420810797

Unavailable

Cylinder Cowl (Intake Side) | MX Z 500 F. Formula DLX 500 F.

420811395

Unavailable

19

TAPTITE SCREW M6 X 16 - Call your local BRP dealership

420240580

Unavailable

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

Unavailable

20

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

Unavailable

21

Cylinder Cowl

420810608

Unavailable

Cylinder Cowl | MX Z 500 F. Formula DLX 500 F.

420810603

Unavailable

22

Cup Washer

420827817

Unavailable

23

Rubber Washer

420960865

Unavailable

24

Washer This part replaces 420227935.

420227936

Unavailable

25

Washer-Lock Din.128

420945832

Unavailable

26

Hex. Screw M8 x 16

207181644

$0.87

27

FLAT WASHER - Call your local BRP dealership

420926180

Unavailable

28

Tapping Screw M4.8 X 16

417300006

Unavailable

29

CLAMP - Call your local BRP dealership

420860940

Unavailable

30

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

Unavailable

31

Protection Washer

420980523

Unavailable

32

Inlet Duct

572097800

Unavailable

33

Air Deflector

509000058

Unavailable

34

Clip

414479100

$1.86

35

Outlet Duct

572098000

Unavailable

Outlet Duct

572083900

Unavailable

36

Seal

415104000

Unavailable

Seal

415036500

Unavailable

37

SERRATED LOCK WASHER M5 - Call your local BRP dealership

732900047

Unavailable

38

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

39

Tapping Screw

732601292

Unavailable

40

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

41

Washer

517124300

Unavailable

42

Elastic Stop Nut M5

232551414

Unavailable
