1976 Suzuki TM75 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 1976 Suzuki TM75, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

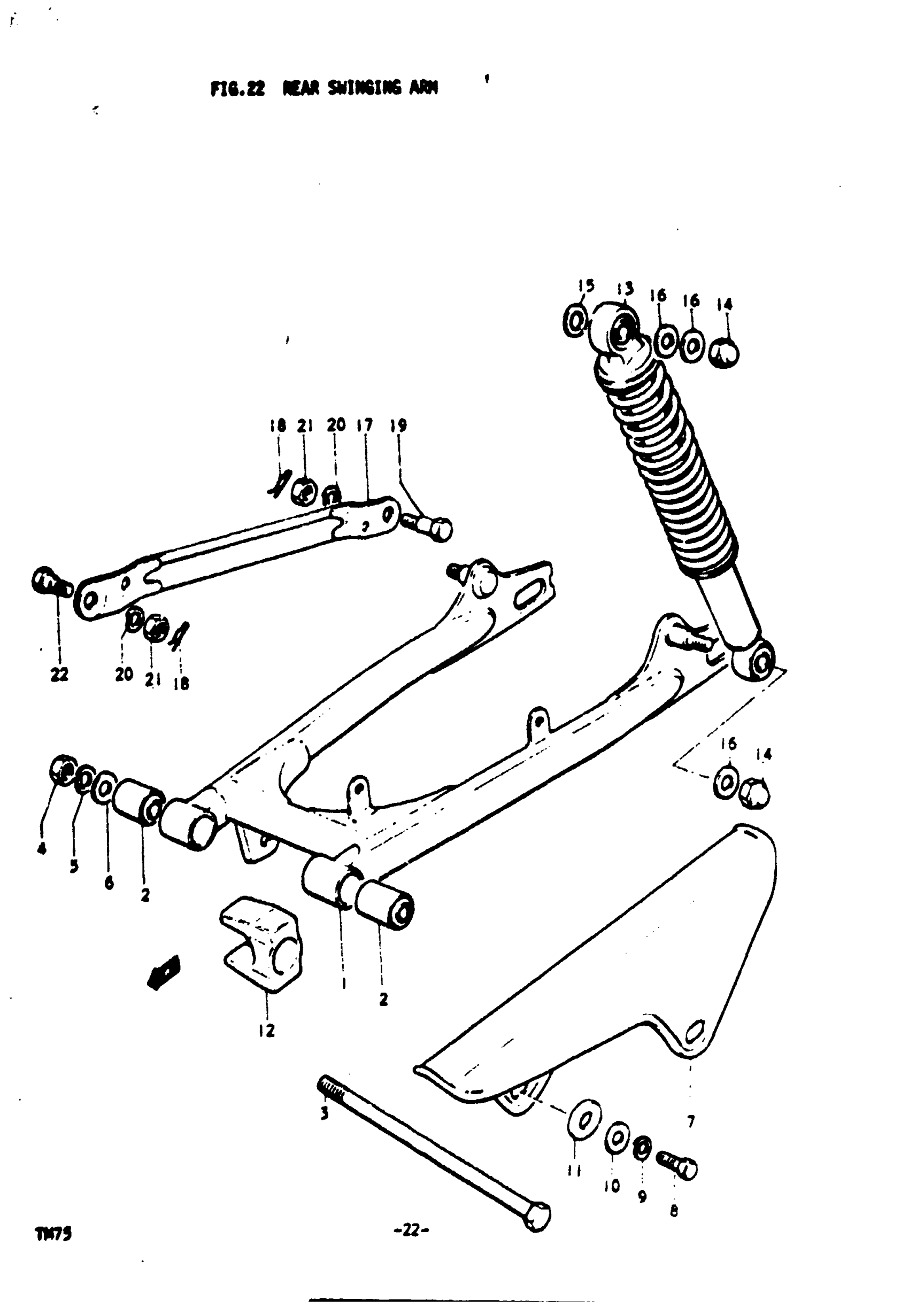

1976 Suzuki TM75 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM, REAR | L; TO 61100-26820-019 This part replaces 61100-26831-019.

61100-26820-019

1
Out of stock

1

SWINGING ARM, REAR | M,A; Includes Item(s) 2

61100-26820-019

1
Out of stock

2

BUSHING

09319-10009

2
Out of stock

3

SHAFT, SWINGING ARM PIVOT

61211-25001

1
Out of stock

4

NUT This part replaces 08311-11108.

08310-00107

1
Out of stock

5

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

6

WASHER This part replaces 08322-21108.

08322-01107

2
Out of stock

7

CASE, CHAIN | L; TO 61300-26101-126

61310-26100-126

—
Out of stock

7

CASE, CHAIN | M

61310-26101-126

1
Out of stock

7

CASE, CHAIN | A This part replaces 61310-26101-019.

61310-26101-126

1
Out of stock

8

BOLT | L This part replaces 01112-06108.

01500-06107

2
Out of stock

8

BOLT | M,A; 6x8

09100-06011

2
Out of stock

9

2

$2.28

In stock

10

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

11

CUSHION | L

09161-08002

2
Out of stock

12

BUFFER, CHAIN

61273-26000

1
Out of stock

13

ABSORBER ASSY, REAR SHOCK | L

62100-26130

2
Out of stock

13

NO DESCRIPTION AVAILABLE | M,A This part replaces 62100-26131.

62100-26030

2
Out of stock

14

NUT | L,M This part replaces 08313-11107.

08313-10107

4
Out of stock

15

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

16

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

6
Out of stock

17

LINK, REAR TORQUE

64310-26100

1
Out of stock

18

CLIP This part replaces 09385-10001.

09385-10005

2
Out of stock

19

BOLT, REAR BRAKE

09111-08013

1
Out of stock

20

2

$2.28

In stock

21

NUT, TORQUE LINK

09140-08008

2
Out of stock

22

BOLT, TORQUE LINK FRONT

09111-08012

1
Out of stock
