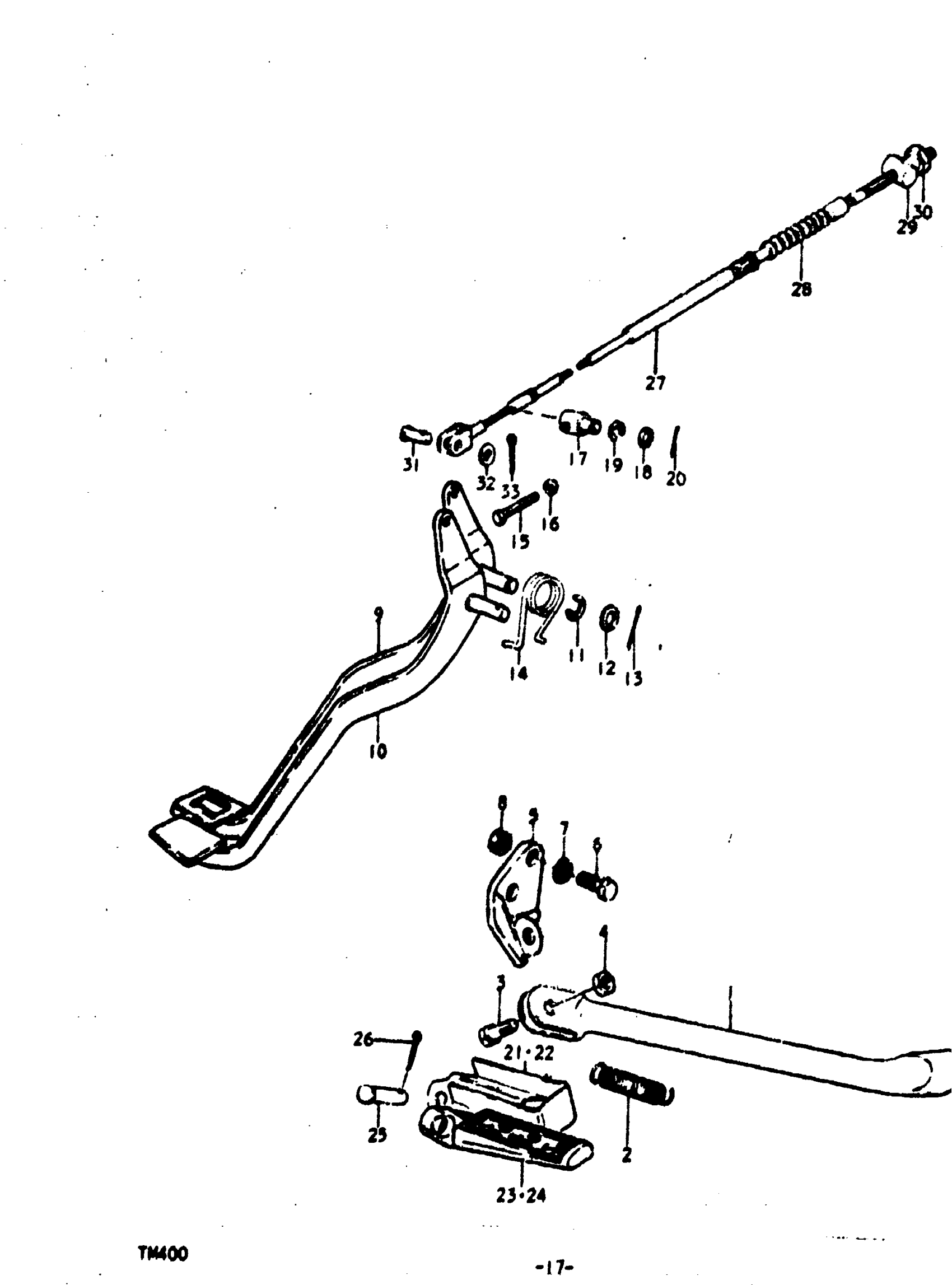

Find the part on the Stand - Brake Pedal diagram for your 1975 Suzuki TM400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Suzuki TM400 Stand - Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP | R,J,M This part replaces 42310-16500.

42310-41100

1
Out of stock

1

STAND, PROP | K,L

42310-25000

1
Out of stock

2

1

$3.00

In stock

3

BOLT, PROP STAND | K,L,M; 10x30

09100-10067

1
Out of stock

4

1

$2.35

In stock

5

BRACKET, PROP STAND | K,L,M

42330-32100

1
Out of stock

6

2

$4.18

In stock

8

2

$2.35

In stock

9

PEDAL, BRAKE | R,J

43110-16500

1
Out of stock

10

PEDAL, BRAKE | K,L,M

43110-32100

1
Out of stock

11

.E-RING | R,J This part replaces 08332-11088.

08332-1108A

1
Out of stock

12

WASHER | K,L,M This part replaces 08322-11128.

08322-01127

1
Out of stock

13

PIN | J This part replaces 04111-30308.

04111-3030A

1
Out of stock

13

1

$1.63

In stock

14

SPRING, BRAKE PEDAL | R,J

09448-26001

1
Out of stock

14

SPRING, BRAKE PEDAL | M

09448-26002

1
Out of stock

14

SPRING, BRAKE PEDAL | K,L

09448-29001

1
Out of stock

15

BOLT, PEDAL STOPPER | R,J; 6x40 TO 09100-06003

09100-06002

—
Out of stock

15

BOLT, PEDAL STOPPER | K,L,M

09100-06003

1
Out of stock

16

1

$1.82

In stock

17

HOLDER, BRAKE WIRE END | J,K,L

43221-16501

—
Out of stock

17

HOLDER, BRAKE WIRE END | R

43221-16500

1
Out of stock

18

WASHER | J,K,L; 8.5x15x2

09160-08020

1
Out of stock

19

1

$1.52

In stock

20

CITTER PIN | J,K,L This part replaces 04111-25208.

04111-2520A

1
Out of stock

21

FOOTREST, RH | R,J

43550-16500

—
Out of stock

22

FOOTREST, LH | R,J

43560-16500

1
Out of stock

23

FOOTREST, RH | K,L,M

43511-30100

1
Out of stock

24

FOOTREST, LH | K,L,M

43521-30100

1
Out of stock

25

PIN, FOOTREST | R,J

09200-08024

2
Out of stock

25

PIN, FOOTREST | K,L,M

04322-08308

2
Out of stock

26

2

$1.31

In stock

27

CABLE ASSY, REAR BRAKE | R,J; FROM 58500-16500K,L,M; Includes Item(s) 28 - 30

58510-16501

1
Out of stock

28

BOOT

09287-05001

1
Out of stock

29

.PIN (13X18) | R,J; TO 09209-13003 This part replaces 09209-13001.

09209-13018

1
Out of stock

29

.PIN (13X18) | K,L,M This part replaces 09209-13003.

09209-13018

1
Out of stock

30

.NUT This part replaces 09150-06001.

09150-06010

1
Out of stock

31

PIN, CABLE

09200-06013

1

$2.38

In stock

32

1

$1.84

In stock

33

1

$1.31

In stock
