1975 Suzuki TM400 Rear Swinging Arm Diagram

← All diagrams

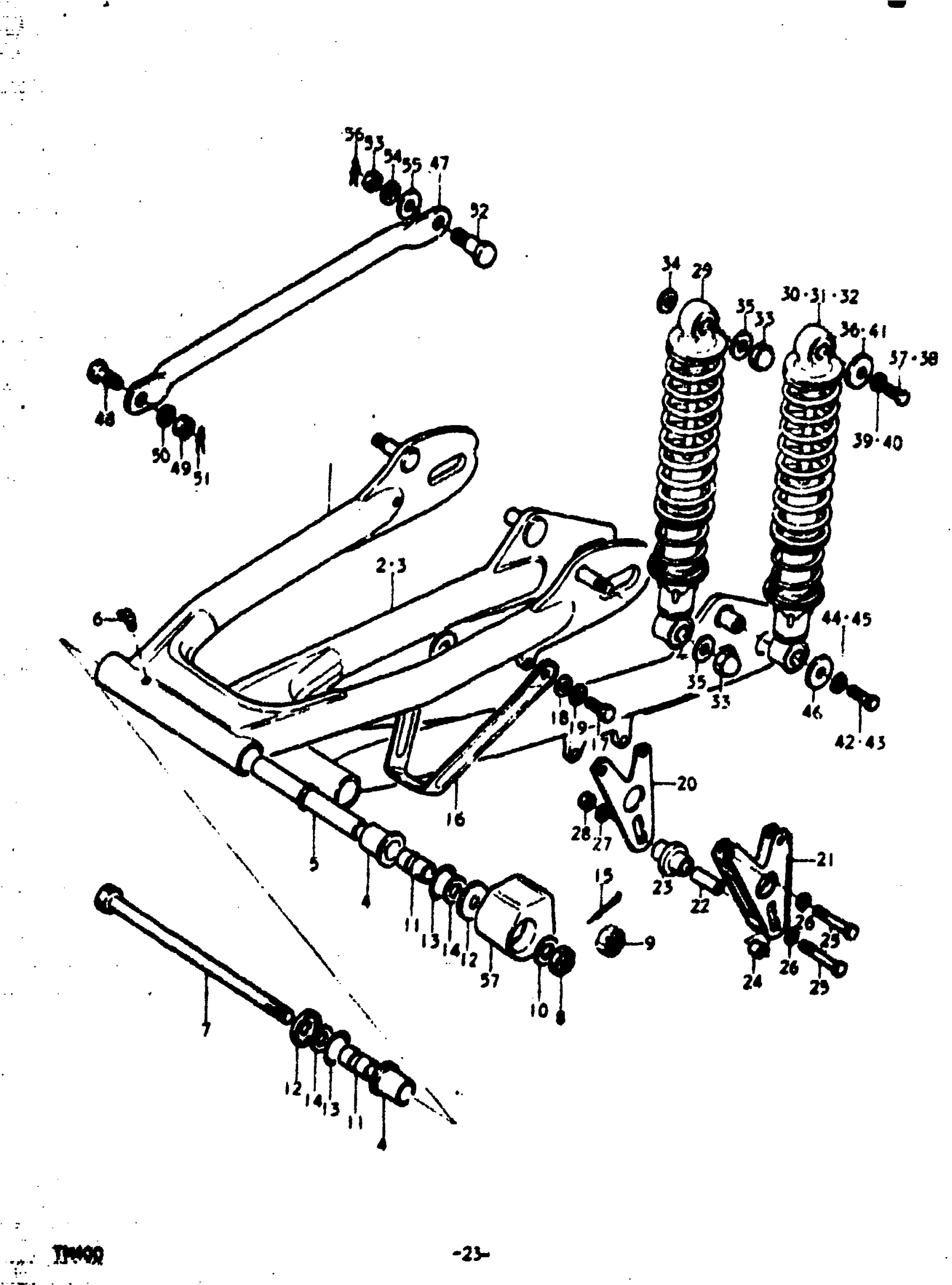

Find the part on the Rear Swinging Arm diagram for your 1975 Suzuki TM400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Suzuki TM400 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

APM, REAR SWINGING | R,J

61100-16824-019

—
Out of stock

2

APM, REAR SWINGING | K,L

61100-32810-019

—
Out of stock

3

APM, REAR SWINGING | M; Includes Item(s) 4 - 5

61100-32830-019

—
Out of stock

4

BUSHING | R,J This part replaces 09307-18001.

09307-18002

2
Out of stock

4

BUSHING | K,L,M This part replaces 09307-22002.

09307-22003

2
Out of stock

5

SPACER, CENTER | R,J

61280-30000

1
Out of stock

5

SPACER, CENTER | K,L,M

61280-32000

1
Out of stock

6

NIPPLE, GREASE | R,J This part replaces 08351-31008.

08351-3100A

1
Out of stock

7

SHAFT, SWINGING ARM PIVOT | R,J

61211-16500

1
Out of stock

7

SHAFT, SWINGING ARM PIVOT | K,L; TO 61211-32101

61211-32100

—
Out of stock

7

SHAFT, SWINGING ARM PIVOT | M

61211-32101

1
Out of stock

8

NUT, PIVOT SHAFT | R,J,K; TO 09159-12102

09159-12101

—
Out of stock

8

NUT, PIVOT SHAFT | L,M

09159-12102

1
Out of stock

9

NUT | L,M

09141-14004

1
Out of stock

10

WASHER | R,J This part replaces 08322-11128.

08322-01127

2
Out of stock

10

WASHER | K,L,M This part replaces 08322-11148.

08322-01147

1
Out of stock

11

SPACER, PIVOT | R,J

61251-28000

2
Out of stock

11

SPACER | K,L,M This part replaces 61251-15000.

61251-15001

2
Out of stock

12

COVER, DUST SEAL | R,J

61262-09200

2
Out of stock

12

COVER, DUST SEAL | K,L,M

61262-15000

2
Out of stock

13

.O-RING (D:3,ID:24.5) | R,J This part replaces 09280-24001.

09280-24003

2
Out of stock

13

.O RING (D:3,ID:29.5) | K,L,M

09280-30001

2
Out of stock

14

THRUST WASHER, PIVOT SHAFT | R,J; 12.5x24x2.3

09160-12005

2
Out of stock

14

THRUST WASHER, PIVOT SHAFT | K,L,M; 14.5x29x2.3

09160-14009

2
Out of stock

15

PIN | L,M This part replaces 04111-20308.

04111-2030A

1
Out of stock

16

GUIDE, CHAIN | R,J

61341-16500

1
Out of stock

17

BOLT, CANISTER | R,J This part replaces 01112-06168.

01500-06167

2
Out of stock

18

.WASHER | R,J This part replaces 08322-11068.

08322-0106B

2
Out of stock

19

LOCK WASHER | R,J This part replaces 08321-21068.

08321-01067

2
Out of stock

20

GUIDE, CHAIN | K; TO 61340-32102

61340-32101

—
Out of stock

20

GUIDE, CHAIN | L,M

61340-32102

1
Out of stock

21

GUIDE, CHAIN | K; TO 61350-32101

61350-32100

—
Out of stock

21

GUIDE, CHAIN | L,M

61350-32101

1
Out of stock

24

SPACER, CHAIN GUIDE | K,L,M; 6.5x12x6.9

09180-06010

1
Out of stock

23

RUBBER, CHAIN GUIDE | K,L,M

61345-32100

1
Out of stock

22

SPACER | K,L,M; 6.5x10.5x34

09180-06056

3
Out of stock

25

BOLT | K,L,M This part replaces 01112-06558.

01500-0655B

3
Out of stock

26

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

2
Out of stock

27

WASHER | K,L,M This part replaces 08322-21068.

08322-01067

2
Out of stock

28

SCREW | K,L; TO 09159-06018 This part replaces 09139-06010.

09139-06086

1
Out of stock

28

NUT | M

09159-06018

1
Out of stock

29

ABSORBER ASSY, REAR SHOCK | R,J

62100-16510

—
Out of stock

30

ABSORBER ASSY, REAR SHOCK | K

62100-32110

—
Out of stock

31

ABSORBER ASSY, REAR SHOCK | L

62100-32600

2
Out of stock

32

ABSORBER ASSY, REAR SHOCK | M

62100-32610

2
Out of stock

33

NUT | R,J This part replaces 08313-11107.

08313-10107

4
Out of stock

34

WASHER | R,J This part replaces 08322-11128.

08322-01127

2
Out of stock

35

WASHER, LOWER (10.5X24X2.3) | R,J; 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

4
Out of stock

36

WASHER | L; 12.2x26x1.2

09164-12007

2
Out of stock

37

BOLT | K,L This part replaces 01112-06128.

01500-06127

2
Out of stock

38

BOLT | M

09100-12102

2
Out of stock

39

LOCK WASHER | K,L This part replaces 08321-21068.

08321-01067

2
Out of stock

40

WASHER | M This part replaces 08322-11128.

08322-01127

2
Out of stock

41

WASHER | K; 6.5x29x1.6 This part replaces 09160-06030.

09160-06136

2
Out of stock

41

WASHER, FRONT | L; 6.5x24x1.6 This part replaces 09160-06004.

09160-06134

2
Out of stock

42

BOLT | K,L This part replaces 01112-06128.

01500-06127

2
Out of stock

43

BOLT | M

09100-12111

2
Out of stock

44

LOCK WASHER | K,L This part replaces 08321-21068.

08321-01067

2
Out of stock

45

WASHER | M This part replaces 08322-11128.

08322-01127

2
Out of stock

46

WASHER | K; 6.5x29x1.6 This part replaces 09160-06030.

09160-06136

2
Out of stock

46

WASHER, FRONT | L; 6.5x24x1.6 This part replaces 09160-06004.

09160-06134

2
Out of stock

47

LINK, REAR FORQUE | R,J

64311-16500

1
Out of stock

47

NO DESCRIPTION AVAILABLE | K,L,M This part replaces 64311-32100.

64311-32101-019

1
Out of stock

48

BOLT | R,J; TO 09111-08012

09119-08012

—
Out of stock

48

BOLT | K,L,M

09111-08012

1
Out of stock

49

NUT, FORQUE LINK

09140-08008

1
Out of stock

50

.LOCK WASHER This part replaces 08321-21088.

08321-01087

1
Out of stock

51

CLIP, FORQUE LINK FRONT | R,J

09384-06001

1
Out of stock

51

CLIP | K,L,M This part replaces 09385-10001.

09385-10005

1
Out of stock

52

BOLT, TORQUE LINK REAR | R,J; TO 09111-10009

09119-10001

—
Out of stock

52

BOLT, TORQUE LINK REAR | K,L,M

09111-10009

1
Out of stock

53

NUT This part replaces 08311-31108.

08310-00107

1
Out of stock

54

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

55

WASHER | 2.5x24x1.6 This part replaces 09160-12004.

09160-12088

1
Out of stock

56

CLIP, FORQUE LINK | R,J

09384-08001

1
Out of stock

56

CLIP | K,L,M This part replaces 09385-10001.

09385-10005

1
Out of stock

57

BUFFER, CHAIN TOUCH DEFENSE | K,L,M

61273-32100

1
Out of stock
