1975 Suzuki TM400 Cylinder - Crankcase Diagram

← All diagrams

Find the part on the Cylinder - Crankcase diagram for your 1975 Suzuki TM400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

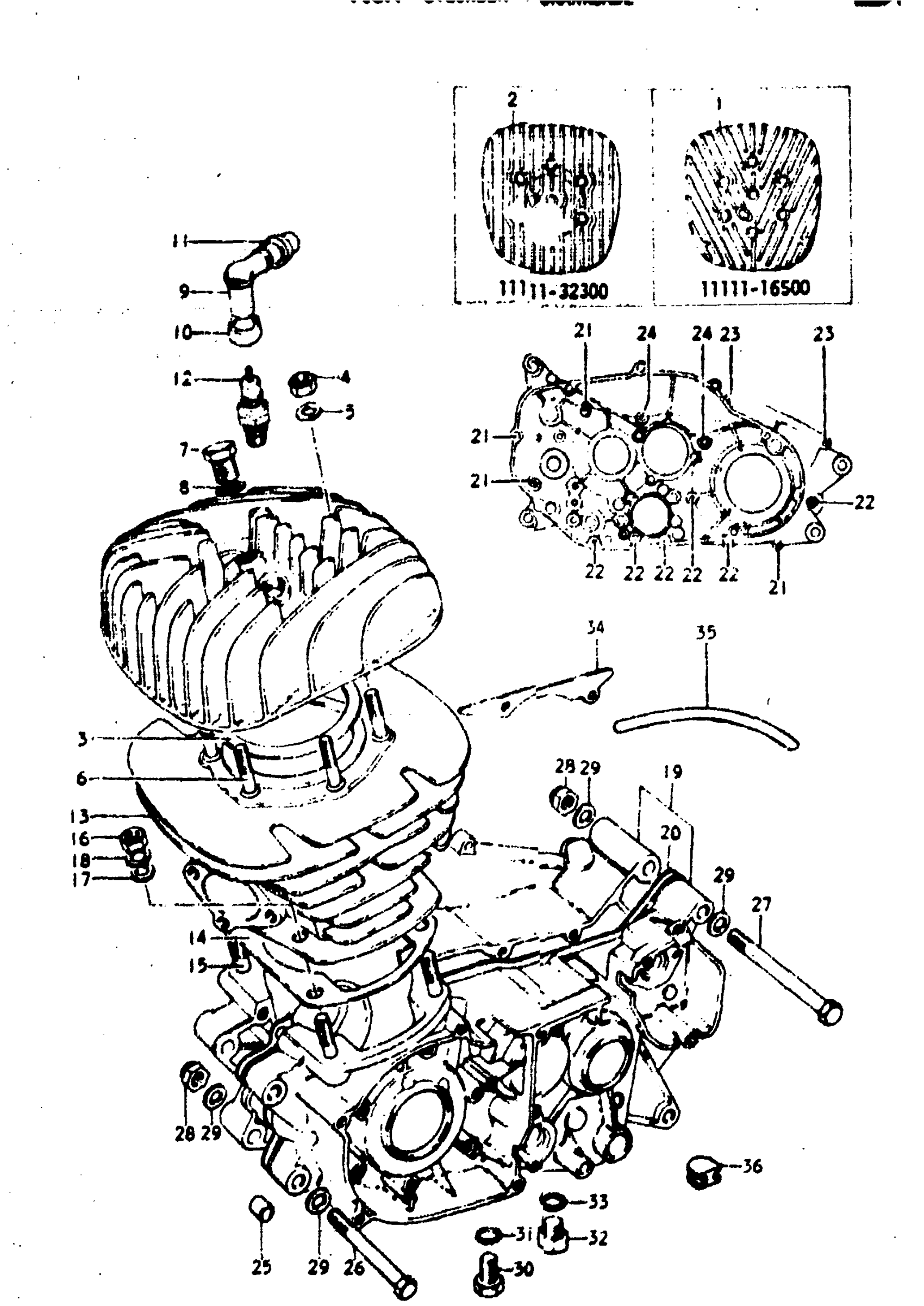

1975 Suzuki TM400 Cylinder - Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD | R,J,K

11111-16500

1
Out of stock

2

CYLINDER HEAD | L,M

11111-32300

—
Out of stock

3

GASKET, CYLINDER HEAD | R,J,K,L; TO 11141-32210 This part replaces 11141-16500.

11141-32210

1
Out of stock

3

GASKET, CYLINDER HEAD | M

11141-32210

1
Out of stock

4

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

6
Out of stock

5

WASHER This part replaces 08322-21088.

08322-01087

6
Out of stock

6

STUD BOLT, CYLINDER HEAD

09108-08018

6
Out of stock

7

PLUG, DRAIN This part replaces 09247-14007.

09247-14025

1
Out of stock

8

GASKET, PLUG

09168-14004

1
Out of stock

9

CAP, SPARK PLUG | R,J; TO 33510-28300 This part replaces 33510-26700.

33510-28300

1
Out of stock

9

CAP, SPARK PLUG | K,L,M

33510-28300

1
Out of stock

10

SEAL, CAP | R,J; TO 33541-69010

33541-22000

—
Out of stock

10

SEAL, CAP | R,J

33541-69010

1
Out of stock

11

SEAL, CORD | R,J

33542-26700

1
Out of stock

12

SPARK PLUG | B-8ES This part replaces 09482-00056.

09482-00091

1
Out of stock

12

SPARK PLUG ASSY | B-9EN OPT

09482-00030

1
Out of stock

12

SPARK PLUG ASSY | K,L,M; W-24ES

09482-00047

—
Out of stock

13

CYLINDER

11210-16500

1
Out of stock

14

GASKET,CYLINDER | TO 11241-16501 This part replaces 11241-16500.

11241-16501

1
Out of stock

14

GASKET,CYLINDER | M

11241-16501

1
Out of stock

15

BOLT,STUD This part replaces 01421-10358.

01421-1035A

4
Out of stock

16

NUT This part replaces 08312-11108.

08310-00107

4
Out of stock

17

WASHER This part replaces 08322-11108.

08322-01107

4
Out of stock

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

4
Out of stock

19

CRANKCASE SET | R,J,K,L; TO 11300-16840

11301-16821

—
Out of stock

19

CRANKCASE SET | M; Includes Item(s) 20 - 25

11300-16840

—
Out of stock

20

GASKET,CRANKCAS This part replaces 11481-16500.

11481-16501

1
Out of stock

21

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

4
Out of stock

22

SCREW This part replaces 02112-06608.

02112-06607

6
Out of stock

23

SCREW This part replaces 02112-06708.

02112-06707

2
Out of stock

24

SCREW This part replaces 02112-06808.

02112-06807

2
Out of stock

25

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

26

BOLT This part replaces 01122-10958.

01500-1095B

2
Out of stock

27

BOLT, ENGINE MOUNTING | 10x155

09100-10072

2
Out of stock

28

NUT, ENGINE MOUNTING

09159-10011

4
Out of stock

29

WASHER This part replaces 08322-11108.

08322-01107

8
Out of stock

30

PLUG, CRANK DRAIN

09247-10001

1
Out of stock

31

GASKET, DRAIN PLUG | 10x14,2x2

09168-10002

1
Out of stock

32

PLUG, DRAIN | R,J,K,L This part replaces 09247-14007.

09247-14025

1
Out of stock

32

PLUG (MAGNETO) | M This part replaces 09247-14001.

09247-14002

1
Out of stock

33

GASKET, DRAIN PLUG

09168-14004

1
Out of stock

34

PLATE, OIL RESERVOIR

24871-16500

1
Out of stock

35

HOSE, BREATHER

09344-05015

—
Out of stock

36

RUBBER, NEUTRAL HOLE

09259-04001

1
Out of stock
