1975 Suzuki TM250 Rear Fender Diagram

← All diagrams

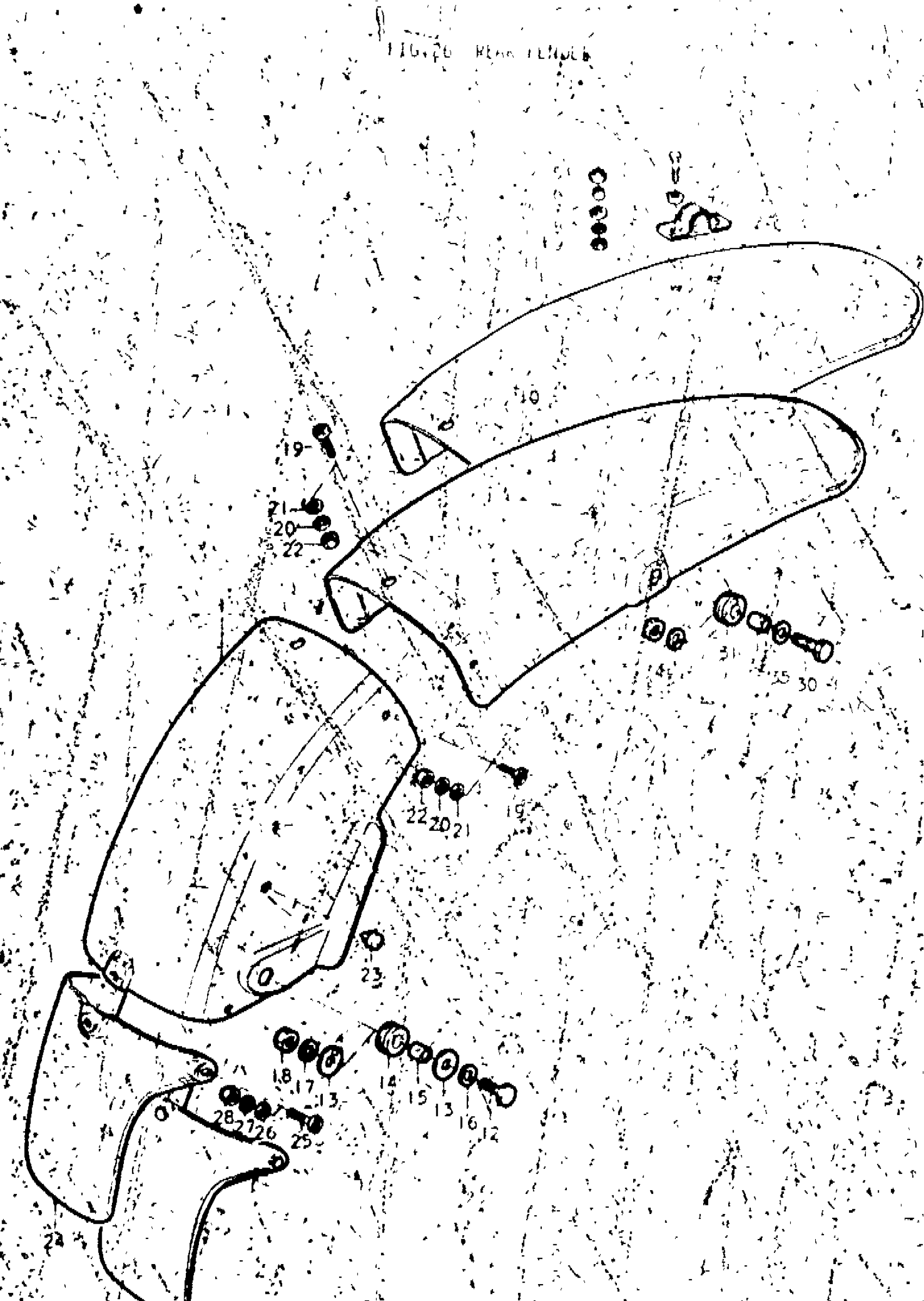

Find the part on the Rear Fender diagram for your 1975 Suzuki TM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Suzuki TM250 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER FRONT | J,K; TO 63110-30620

63112-30002-019

—
Out of stock

1

NO DESCRIPTION AVAILABLE | J,K This part replaces 63110-30620.

63110-30620-019

1
Out of stock

1

BODY, REAR FENDER FRONT | L; TO 63112-28301-163

63112-28300-163

—
Out of stock

1

BODY, REAR FENDER FRONT | M

63112-28301-163

1
Out of stock

2

BRACE, REAR FENDER | L,M

63140-28300

1
Out of stock

3

BOLT | L,M

09100-06064

2
Out of stock

4

WASHER | L,M This part replaces 08322-21068.

08322-01067

2
Out of stock

5

WASHER, REAR FENDER BRACE | L,M

09320-09003

2
Out of stock

6

SPACER (6.5X10X7) | L,M This part replaces 09180-06002.

09180-06283

2
Out of stock

7

WASHER (6.5X20X1.2) | L,M This part replaces 09160-06027.

09160-06077

2
Out of stock

8

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

2
Out of stock

9

NUT, LICENSE HOLDER | L,M This part replaces 08313-11067.

08313-10067

2
Out of stock

10

BOLT, REAR FENDER REAR | J,K

63113-30100-163

1
Out of stock

11

BODY, REAR FENDER REAR | L,M

63113-26300-163

—
Out of stock

12

BOLT This part replaces 01112-06208.

01500-06207

2
Out of stock

13

WASHER (6.5X20X1.2) | J,K,LM This part replaces 09160-06027.

09160-06077

4
Out of stock

14

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

15

SPACER

09180-06038

2
Out of stock

16

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

2
Out of stock

18

.NUT | J,K This part replaces 08311-11068.

08310-00067

2
Out of stock

19

SCREW | J,K This part replaces 02141-05167.

02142-05167

3
Out of stock

19

SCREW | L,M This part replaces 02141-05127.

02142-05127

3
Out of stock

20

LOCK WASHER This part replaces 08321-21058.

08321-0105A

3
Out of stock

21

WASHER This part replaces 08322-21058.

08322-01057

3
Out of stock

22

NUT | J,K

09159-05005

3
Out of stock

22

NUT | L,M This part replaces 08311-11058.

08310-00057

3
Out of stock

23

CUSHION This part replaces 09321-06013.

09321-06036

1
Out of stock

24

MUD GUARD | J,K

63411-30001

—
Out of stock

25

SCREW | J This part replaces 02141-05167.

02142-05167

3
Out of stock

25

SCREW | L,M This part replaces 02141-05107.

02142-05107

3
Out of stock

26

LOCK WASHER | J,L,M This part replaces 08321-21058.

08321-0105A

3
Out of stock

27

LOCK WASHER | J,L This part replaces 08321-21058.

08321-0105A

3
Out of stock

28

NUT | J

09159-05005

3
Out of stock

28

NUT | L,M This part replaces 08311-31058.

08310-00057

3
Out of stock

29

MUD GUARD | L,M

63411-30002

1
Out of stock

30

BOLT | J,K This part replaces 01112-06208.

01500-06207

2
Out of stock

31

CUSHION (8.5X20X8) | J,K This part replaces 09320-08007.

09320-08510

2
Out of stock

32

SPACER | J,K

09180-06038

2
Out of stock

33

LOCK WASHER | J,K This part replaces 08321-21068.

08321-01067

2
Out of stock

34

.NUT | J,K This part replaces 08311-11068.

08310-00067

2
Out of stock

35

WASHER (6.5X20X1.2) | J,K This part replaces 09160-06027.

09160-06077

2
Out of stock
