1975 Suzuki TM250 Piston - Crankshaft Diagram

← All diagrams

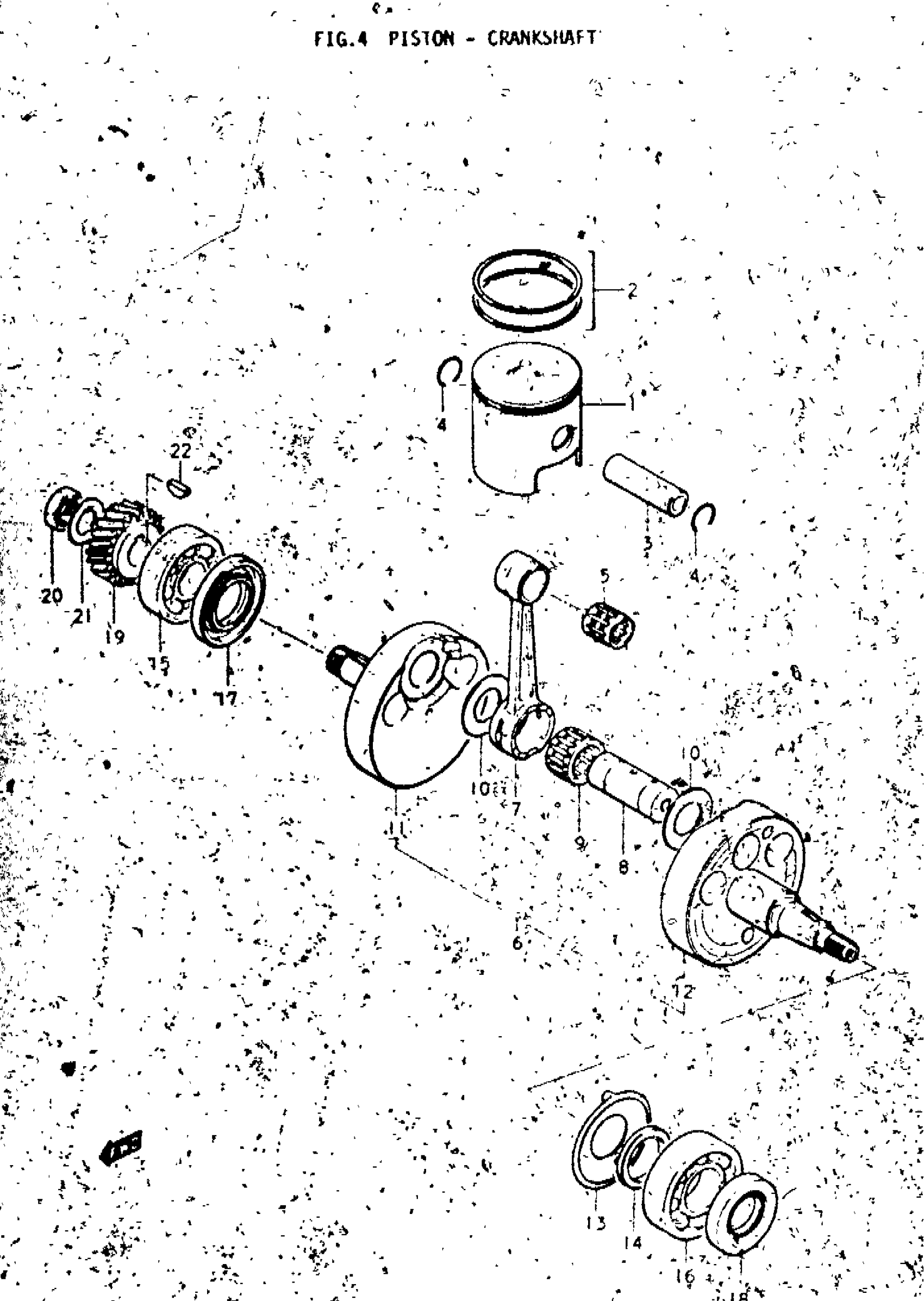

Find the part on the Piston - Crankshaft diagram for your 1975 Suzuki TM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Suzuki TM250 Piston - Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON

12110-30731

1
Out of stock

1

NO DESCRIPTION AVAILABLE | OS:0.5 This part replaces 12110-30740.

12110-30731-050

1
Out of stock

2

RING SET, PISTON

12140-30010

1
Out of stock

2

RING SET, PISTON (OS:0.5) | OS:0.5 This part replaces 12140-30710.

12140-30010-050

1
Out of stock

3

PIN, PISTON This part replaces 12151-15000.

12151-13A00-0A0

1
Out of stock

4

CIRCLIP

09381-18002

2
Out of stock

5

BEARING (18X23X24) This part replaces 09263-18005.

09263-18021

1
Out of stock

6

CRANKSHAFT ASSY | J,K; TO 12200-30830

12002-30803

—
Out of stock

6

CRANKSHAFT ASSY | L; TO 12200-30002

12200-30830

—
Out of stock

6

NO DESCRIPTION AVAILABLE | M This part replaces 12200-30002.

12200-30003

1
Out of stock

7

ROD, CONNECTING | J,K,M

12161-16400

1
Out of stock

7

ROD, CONNECTING | L; TO 12161-16400 This part replaces 12161-30200.

12161-16400

1
Out of stock

8

PIN, CRANK

12211-16400

1
Out of stock

9

BEARING

09263-25008

1
Out of stock

10

WASHER | 25x42x1 This part replaces 09160-25004.

09160-25024

2
Out of stock

11

CRANKSHAFT, RH | J,K,L; TO 12221-30001

12221-30000

—
Out of stock

11

CRANKSHAFT, RH | M

12221-30001

1
Out of stock

12

CRANKSHAFT, LH | J,K,L; TO 12261-30002

12261-30001

—
Out of stock

12

CRANKSHAFT, LH | M

12261-30002

1
Out of stock

13

PLATE, OIL GUIDE

12511-30002

1
Out of stock

14

SPACER | 30x45x3

09180-30012

1
Out of stock

15

BEARING, DRUM This part replaces 08113-63050.

09262-25073

1
Out of stock

16

BEARING

09269-30006

1
Out of stock

17

OIL SEAL

09283-35004

1
Out of stock

18

OIL SEAL 30X55X This part replaces 09283-30011.

09283-30L03

1
Out of stock

19

GEAR, PRIMARY DRIVE | J; NT:21

21111-30000

1
Out of stock

19

GEAR, PRIMARY DRIVE | K,L,M; NT:83

21111-30100

1
Out of stock

20

NUT

09140-18002

1
Out of stock

21

WASHER

09166-18001

1
Out of stock

22

KEY

08341-31059

1
Out of stock
