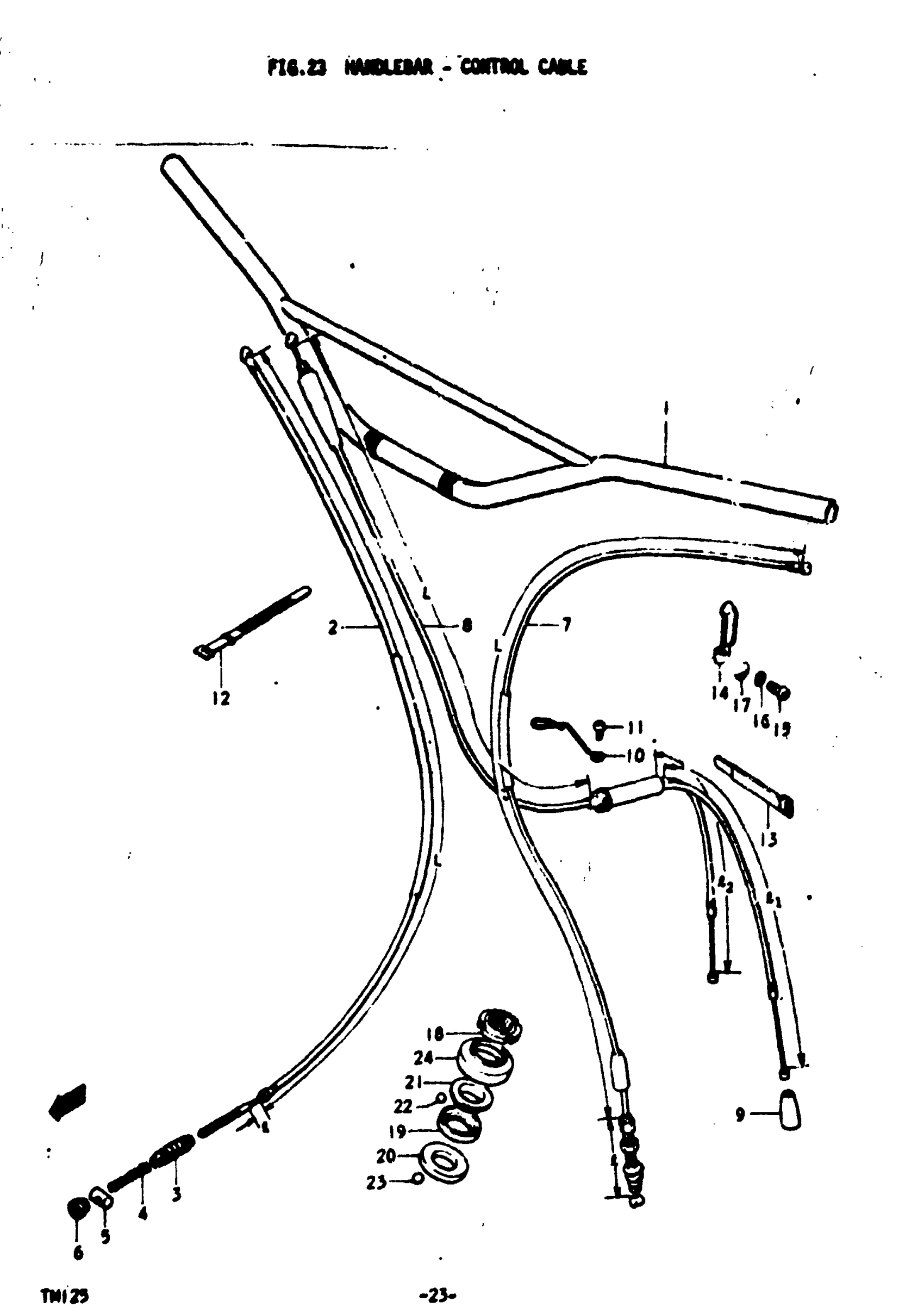

Suzuki TM125 (1975) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR | K,L; TO 56110-28301

56110-28300

Unavailable

1

HANDLEBAR | L,M

56110-28301

Unavailable

2

CABLE,FR BRAKE | K; L:1090, L:66 This part replaces 58100-28100.

58100-28090

$19.30

2

CABLE ASSY, FRONT BRAKE | L,M; Includes Item(s) 3 - 6

58110-28100

Unavailable

3

DUST SEAL

09287-07001

$2.01

4

SPRING

09440-06003

$2.67

5

PIN

09209-10001

$1.33

6

NUT

09150-05101

$2.80

7

CABLE ASSY, CLUTCH | L:940, L:110 This part replaces 58200-28300.

58200-28301

Unavailable

8

CABLE,THROTTLE | L:880, L1:320, L2:150 This part replaces 58300-28300.

58300-28301

Unavailable

9

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.50

10

GUIDE, CABLE

58621-28300

Unavailable

11

SCREW This part replaces 02111-06128.

02112-06127

$1.83

12

CLAMP

09410-00032

Unavailable

13

CLAMP This part replaces 09407-11301.

09407-18302

$2.27

14

CLAMP

09403-10302

Unavailable

15

SCREW This part replaces 02112-06108.

02112-06107

$1.45

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

17

WASHER | K This part replaces 08322-21068.

08322-01067

$1.86

18

NUT, STEERING STEM

51631-28000

$19.60

19

RACE,STEERING INNER UPPER

51611-20002

$13.50

20

RACE, INNER, LOWER | K,L; TO 51611-33002 This part replaces 51611-33001.

51611-33002

$13.02

20

INNER RACE, STEERING LOWER | M

51611-33002

$13.02

21

RACE,STEERING OUTER UPPER

51621-28000

$13.50

22

STEEL BALL

06111-06003

$1.24

23

STEEL BALL | K,L; TO 06111-08003 This part replaces 06111-08004.

06111-08003

$1.30

23

STEEL BALL | M

06111-08003

$1.30

24

DUST SEAL,STEERING UPPER

51643-25001

$4.17
