1975 Suzuki TM100 Rear Swinging Arm Diagram

← All diagrams

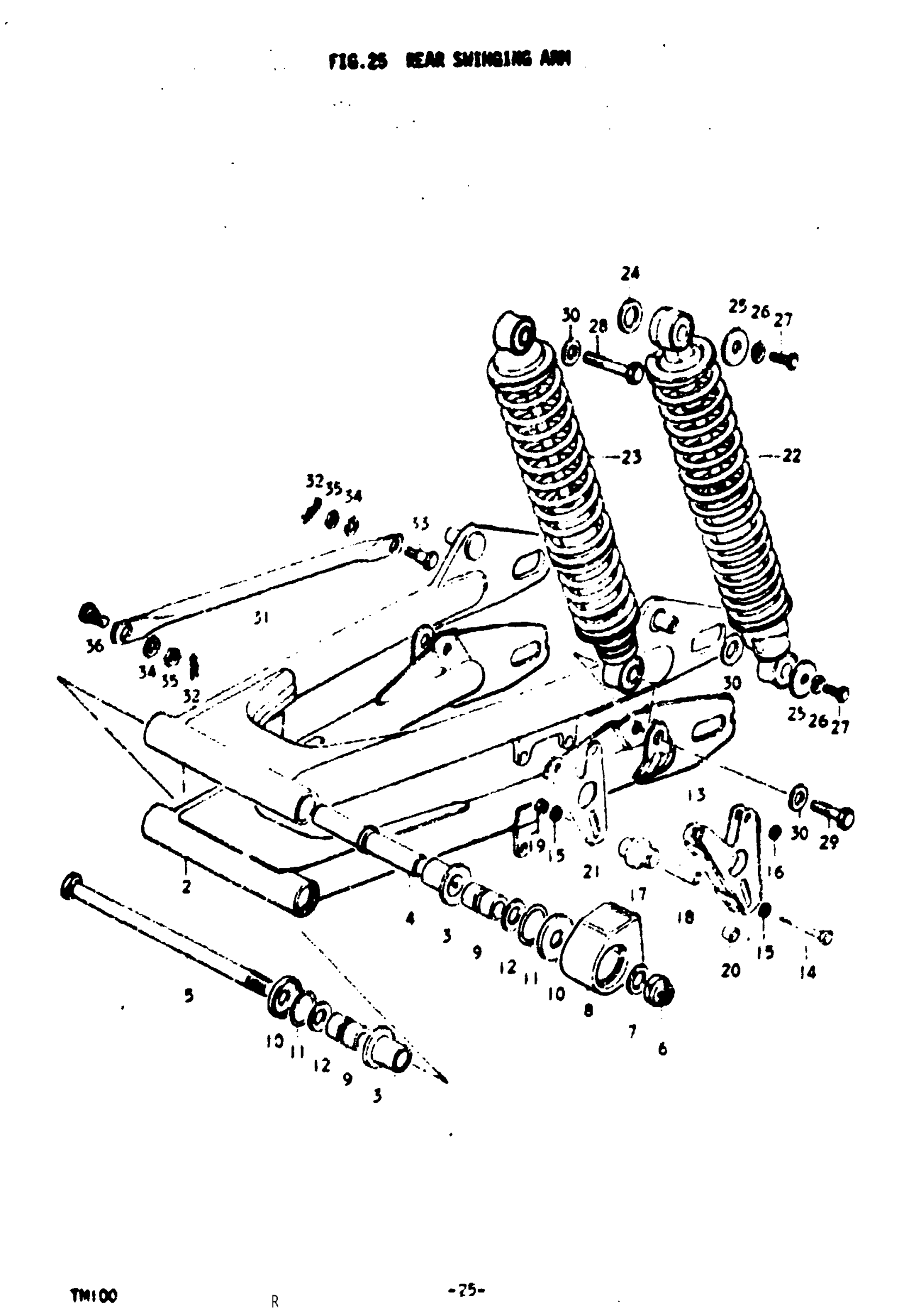

Find the part on the Rear Swinging Arm diagram for your 1975 Suzuki TM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Suzuki TM100 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING ARM SET | L; TO 61100-28831-019

61100-28830-019

—
Out of stock

2

REAR SWINGING ARM SET | M; Includes Item(s) 3 - 4

61100-28870-019

1
Out of stock

3

BUSHING This part replaces 09307-18001.

09307-18002

2
Out of stock

4

SPACER

61280-28000

1
Out of stock

5

SHAFT, PIVOT | L; TO 61211-28001

61211-28600

—
Out of stock

5

SHAFT, PIVOT | M This part replaces 61211-28001.

61211-28002

1
Out of stock

6

NUT | L; TO 09159-12102

09159-12101

—
Out of stock

6

NUT | M

09159-12102

1
Out of stock

7

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

8

BUFFER,CHAIN TO | L; TO 61273-28001 This part replaces 61273-28000.

61273-28002

1
Out of stock

8

BUFFER,CHAIN TO | M This part replaces 61273-28001.

61273-28002

1
Out of stock

9

SPACER

61251-28000

2
Out of stock

10

COVER, DUST SEAL

61262-09200

2
Out of stock

11

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

2
Out of stock

12

THRUST WASHER | 12.5x24x2.3

09160-12005

2
Out of stock

13

GUIDE, CHAIN

61340-32102

1
Out of stock

14

BOLT This part replaces 01112-06558.

01500-0655B

3
Out of stock

15

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

2
Out of stock

17

RUBBER, CHAIN GUIDE

61345-32100

1
Out of stock

18

SPACER, CHAIN GUIDE

09180-06056

3
Out of stock

19

NUT | L; TO 09159-06018

09159-06010

—
Out of stock

19

NUT | L

09159-06018

1
Out of stock

20

SPACER | 6.5x12x6.9

09180-06010

1
Out of stock

21

GUIDE, CHAIN

61350-32101

1
Out of stock

22

SHOCK ABSORBER ASSY, REAR | L

62100-28702

2
Out of stock

23

SHOCK ABSORBER ASSY, REAR | M

62100-28610

2
Out of stock

24

WASHER (12.5X26X1.6) | L This part replaces 09160-12006.

09160-12089

2
Out of stock

25

WASHER, FRONT | L This part replaces 09160-06004.

09160-06134

4
Out of stock

26

LOCK WASHER | L This part replaces 08321-21068.

08321-01067

4
Out of stock

27

BOLT | L This part replaces 01112-06128.

01500-06127

4
Out of stock

28

BOLT | M

09100-12102

2
Out of stock

29

BOLT | M

09100-12111

2
Out of stock

30

WASHER | LM This part replaces 08322-11128.

08322-01127

1
Out of stock

31

TORQUE LINK REA This part replaces 64311-28000.

64311-28000-019

1
Out of stock

32

CLIP This part replaces 09385-10001.

09385-10005

2
Out of stock

33

BOLT

09111-08013

1
Out of stock

34

.LOCK WASHER This part replaces 08321-21088.

08321-01087

2
Out of stock

35

NUT

09140-08008

2
Out of stock

36

BOLT

09111-08015

1
Out of stock
