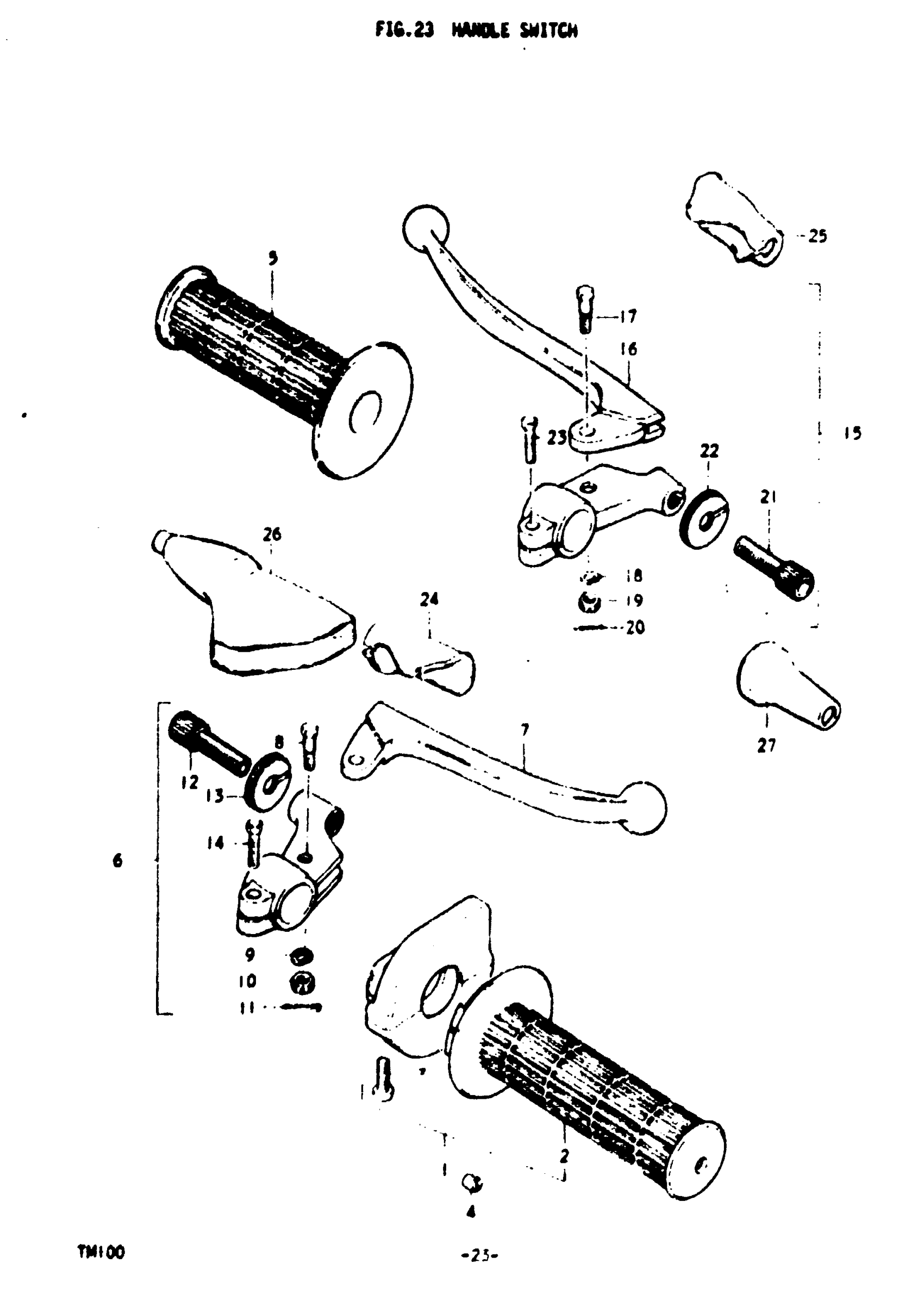

Suzuki TM100 (1975) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | Includes Item(s) 2 - 3

57100-30110

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 57110-30110.

57110-30111

Unavailable

3

SCREW This part replaces 02112-05168.

02112-05167

$2.01

4

PIECE, THROTTLE END

58631-07010

$3.41

5

GRIP, LH

57211-25700

Unavailable

6

LEVER ASSY, BRAKE | L; TO 57300-11011 This part replaces 57300-28310.

57300-32500

Unavailable

6

LEVER ASSY, BRAKE | M; Includes Item(s) 7 - 14 This part replaces 57300-11011.

57300-32500

Unavailable

7

LEVER, BRAKE This part replaces 57420-18011.

57420-29400

Unavailable

8

BOLT This part replaces 57431-11010.

57431-11013

$6.21

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

10

NUT

57433-11010

Unavailable

11

PIN This part replaces 04111-16158.

04111-1620A

$0.96

12

ADJUSTER, BRAKE CABLE

57441-11010

$5.38

13

NUT

57442-11010

$2.80

14

BOLT | L; TO 01112-06208 This part replaces 57451-11010.

01500-06207

$2.06

14

BOLT | M This part replaces 01112-06208.

01500-06207

$2.06

15

CLUTCH LEVER ASSY | L; TO 57500-11011

57500-28310

Unavailable

15

NO DESCRIPTION AVAILABLE | M; Includes Item(s) 16 - 23 This part replaces 57500-11011.

57500-11012

Unavailable

16

LEVER, CLUTCH | L; TO 57620-31010

57620-18011

Unavailable

16

LEVER, CLUTCH | M This part replaces 57620-31010.

57620-45010

Unavailable

17

BOLT This part replaces 57431-11010.

57431-11013

$6.21

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

19

NUT

57433-11010

Unavailable

20

PIN This part replaces 04111-16158.

04111-1620A

$0.96

21

ADJUSTER, CLUTCH CABLE

57441-11010

$5.38

22

NUT

57442-11010

$2.80

23

BOLT | L; TO 01112-06208 This part replaces 57451-11010.

01500-06207

$2.06

23

BOLT | M This part replaces 01112-06208.

01500-06207

$2.06

24

COVER, BRAKE LEVER | L

57341-28000

$14.73

25

COVER, CLUTCH LEVER | L

57661-31000

$7.14

26

COVER, CLUTCH LEVER | M This part replaces 57341-40000.

57341-40003

$5.24

27

BOOT, CLUTCH CABLE | L This part replaces 58273-31000.

58273-31001

$2.40
