1974 Yamaha TL433F Track - Suspension Diagram

← All diagrams

Find the part on the Track - Suspension diagram for your 1974 Yamaha TL433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

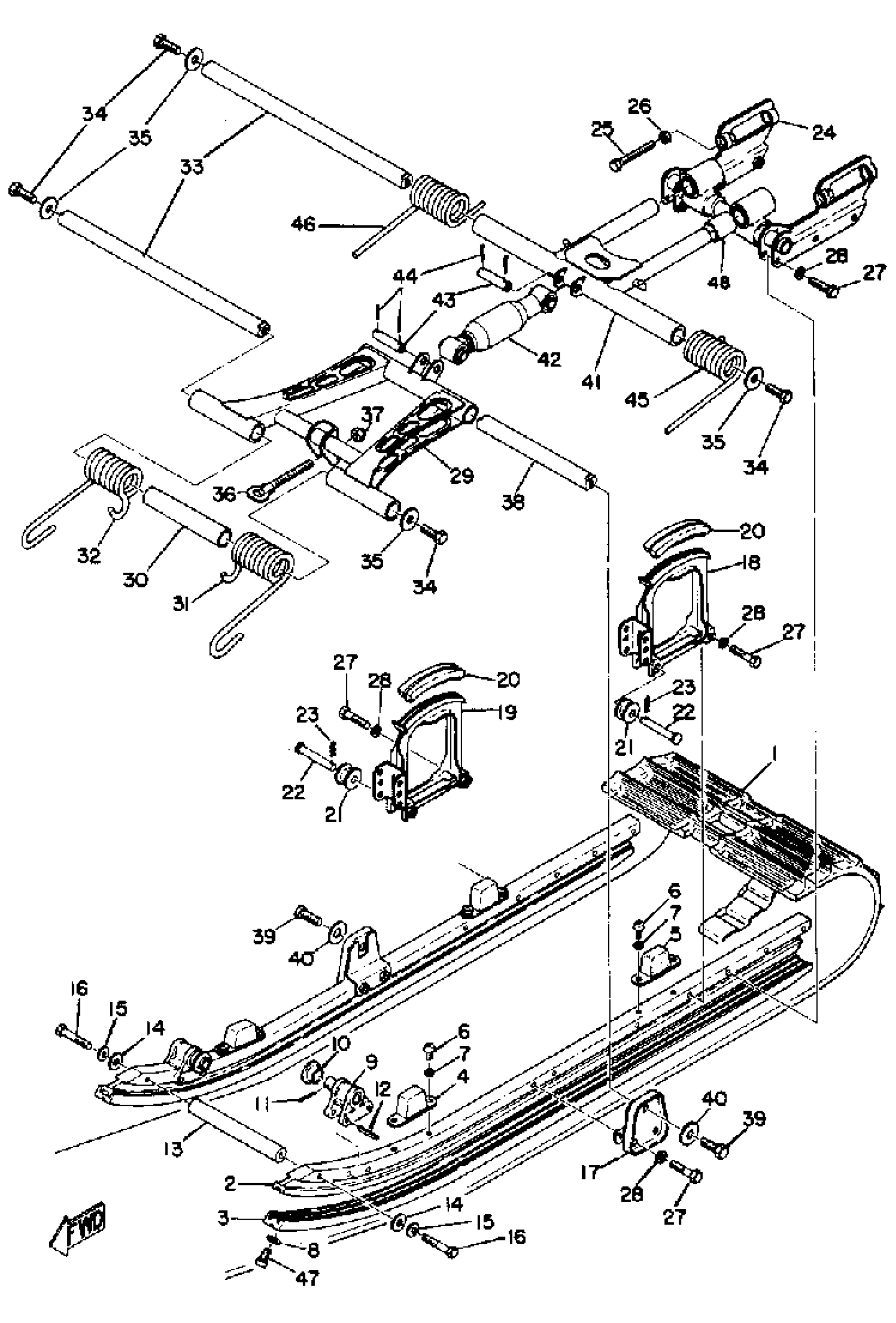

1974 Yamaha TL433F Track - Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY

865-47110-00-00

1
Out of stock

2

FRAME, SLIDING 1

(865-47411-00-00)

1
Out of stock

3

RUNNER, SLIDING 1

865-47421-00-00

1
Out of stock

4

DAMPER 1

(865-47456-01-00)

1
Out of stock

5

DAMPER 2

(865-47457-01-00)

1
Out of stock

6

SCREW, PAN

98507-06014-00

1

$6.18

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

9

HOOK 1

(865-47446-00-00)

1
Out of stock

10

ROLLER

865-47429-00-00

1
Out of stock

11

PIN, COTTER

91490-30030-00

1

$7.15

In stock

12

PIN, SPRING

91609-60036-00

1
Out of stock

13

SHAFT 1

865-47465-00-00

1
Out of stock

14

WASHER, PLATE (5J0)

90201-085E6-00

1
Out of stock

15

SPRING, BELLEVILLE

(829-16119-00-00)

1
Out of stock

16

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

17

BRACKET 1

865-47415-01-00

1
Out of stock

18

STOPPER 1

865-47495-00-00

1
Out of stock

19

STOPPER 2

865-47496-00-00

1
Out of stock

20

RUNNER, SLIDING 2

865-47422-00-00

1
Out of stock

21

ROLLER 2

(865-47439-00-00)

1
Out of stock

22

PIN, CLEVIS

90240-10028-00

1
Out of stock

23

CLIP

90468-18019-00

1
Out of stock

24

BRACKET, REAR 1

(865-47426-00-00)

1
Out of stock

25

BOLT SET (865,9010110200)

99999-02604-00

1
Out of stock

26

NUT(3BM)

95314-10600-00

—

$1.74

In stock

27

BOLT

97014-08040-00

—

$5.26

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

ARM, PIVOT 1

(865-47331-01-00)

1
Out of stock

30

TUBE, STRUCTURE

90440-25001-00

1
Out of stock

31

SPRING, TORSION

90508-73149-00

1
Out of stock

32

SPRING, TORSION

90508-73150-00

1
Out of stock

33

SHAFT, PIVOT

(865-47337-00-00)

1
Out of stock

34

BOLT(6TD)

97017-10025-00

—

$6.82

In stock

35

WASHER 823214910000

90208-10012-00

—

$13.20

In stock

36

HOOK 2

865-47447-00-00

1
Out of stock

37

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

38

SHAFT 2

865-47475-00-00

1
Out of stock

39

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

40

WASHER 823214910000

90208-10012-00

—

$13.20

In stock

41

ARM, PIVOT 2 (865-47332-00)

865-47332-01-00

1
Out of stock

42

SHOCK ABSORBER

(874-47480-00-00)

1
Out of stock

43

PIN 1

(865-47449-00-00)

1
Out of stock

44

PIN, COTTER

91490-30030-00

1

$7.15

In stock

45

SPRING, TORSION

90508-75151-00

1
Out of stock

46

SPRING, TORSION

(90508-75152-00)

1
Out of stock

47

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

48

BUSH, SPEC''L NYLON

(90386-22033-00)

1
Out of stock
